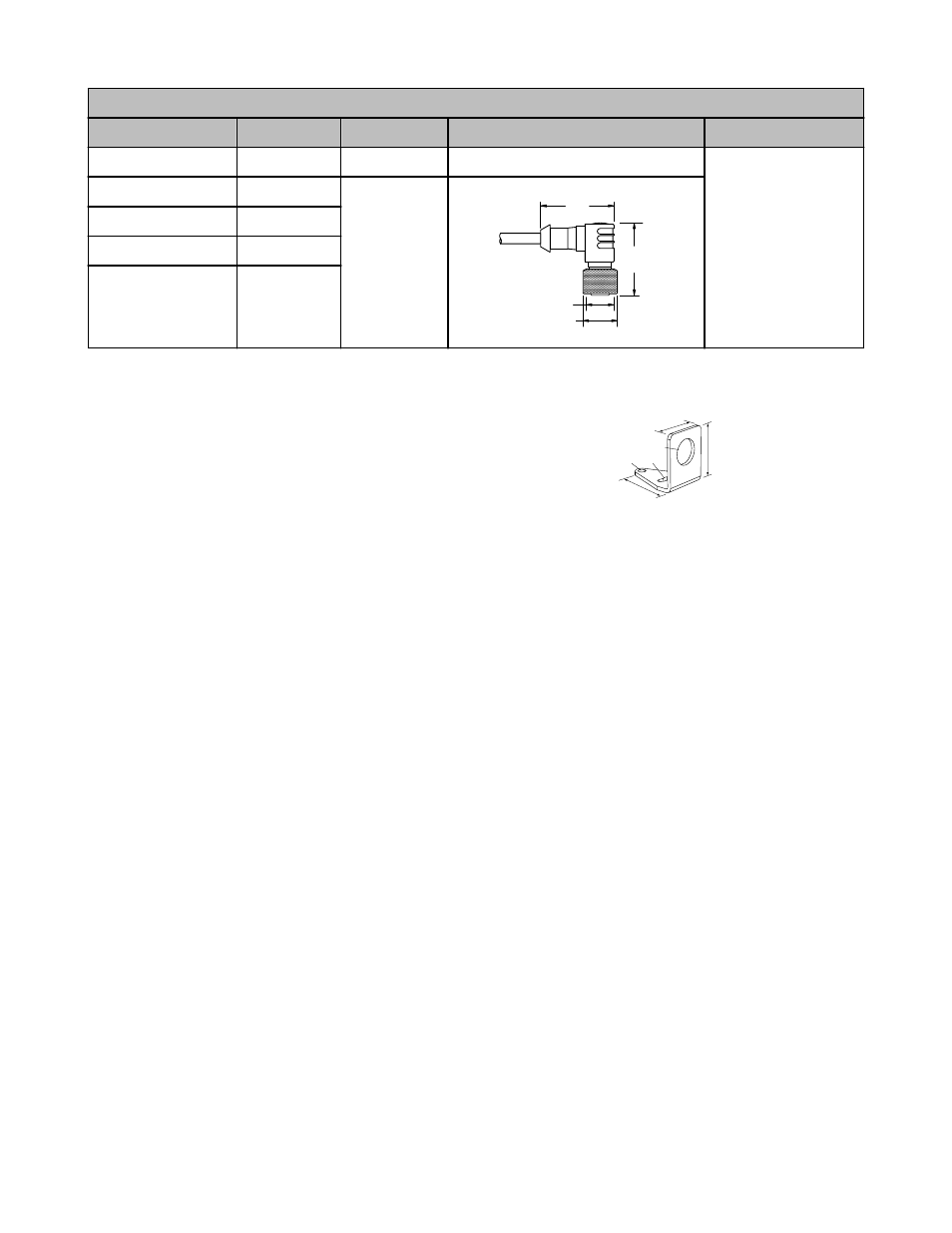

4-Pin Threaded M12/Euro-Style Cordsets

Model

Length

Style

Dimensions

Pinout

MQDC-450

1 = Brown
2 = White
3 = Blue
4 = Black

15.2 m (50 ft)

MQDC-406RA

1.83 m (6 ft)

Right-Angle

32 Typ.

[1.26"]

30 Typ.

[1.18"]

ø 14.5 [0.57"]

M12 x 1

MQDC-415RA

4.57 m (15 ft)

MQDC-430RA

9.14 m (30 ft)

MQDC-450RA

15.2 m (50 ft)

Mounting Brackets

SMB18A

• Right-angle mounting bracket with a curved slot for versatile

orientation

• 12-ga. stainless steel
• 18 mm sensor mounting hole
• Clearance for M4 (#8) hardware

Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 x 4.6, C = ø 18.5

SMB18C

• 18 mm split clamp, black thermoplastic polyester
• Stainless steel mounting hardware included

A = ø ##.# mm
Hole size: B = ø ##.#

SMB18SF

• 18 mm swivel bracket with M18 x 1 internal thread
• Black thermoplastic polyester
• Stainless steel swivel locking hardware included

Hole center spacing: A = 36.0
Hole size: A = ø 5.3, B = ø 18.0

SMB18UR

• 2-piece universal swivel bracket
• 300 series stainless steel
• Stainless steel swivel locking hardware included
• Mounting hole for 18 mm sensor

Hole center spacing: A = 25.4, B = 46.7
Hole size: B = 6.9 x 32.0, C = ø 18.3
