14

3.3.5 Connections with Adapters
In some cases, it may be appropriate to connect the inputs and outputs of the ULTRAMATCH to other devices

by means of adapter units. For example, if you want to connect two DAT recorders to the ULTRAMATCH at the

same time, and each of these recorders features only an SPDIF interface (RCA), you can easily connect one

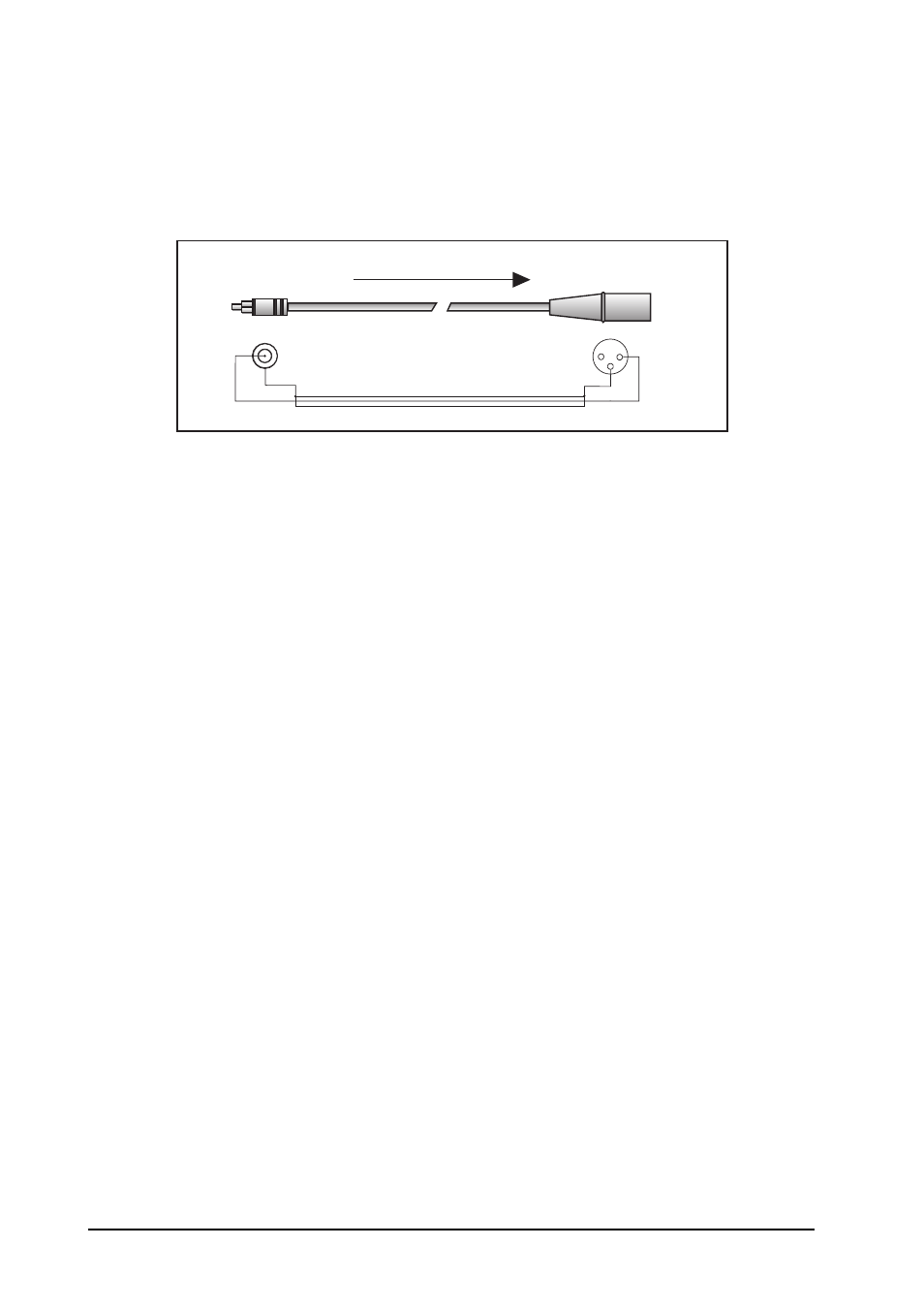

of these recorders to the ULTRAMATCH by means of an RCA-XLR adapter. The figure below shows e. g. the

correct wiring of the adapter cables for input connection.

signal flow

unit A output

S/PDIF

ULTRAMATCH

input

1

2

3

shield

cable

tip

sleeve

Fig. 3.6: Adapter Wiring for RCA Output to ULTRAMATCH’s XLR Input

3. INSTALLATION
