U-gage, T18u series sensor, Quick-disconnect cables – Banner U-GAGE T18U Ultrasonic Sensors User Manual

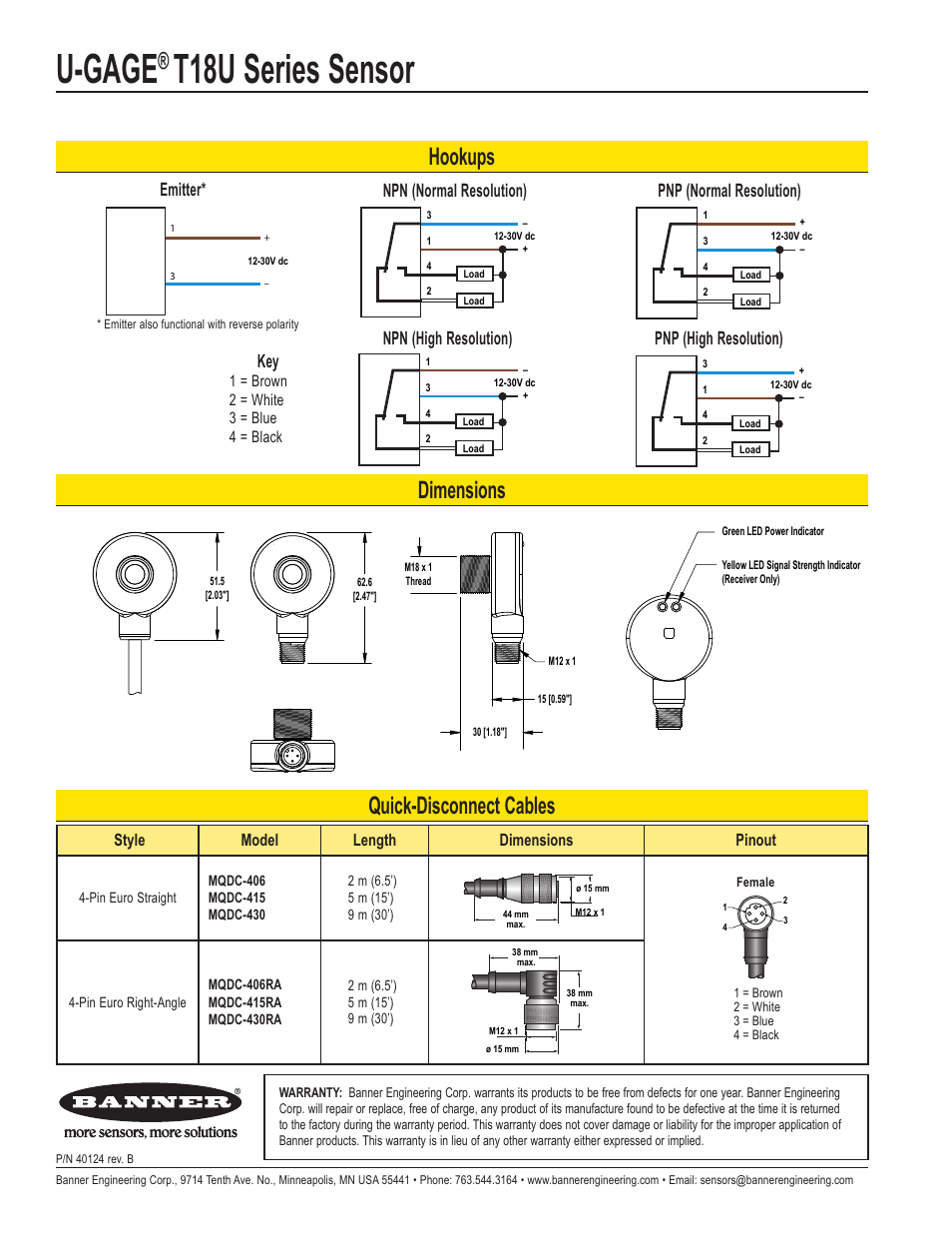

Page 4: Dimensions hookups, Style model length dimensions pinout, 1 = brown 2 = white 3 = blue 4 = black
