Banner A-GAGE MINI-ARRAY Series - Manual

Over-Height Detection Kit Model BMHEOK2
Q40 Bracket Accessory for BMHE Series Heated Enclosures
Printed in USA 05/01 P/N 67652
Over-Height Detection Kit Features
• Self-contained kit includes brackets and opposed-mode sensors to fit into a heated
enclosure, above the MINI-ARRAY sensor, in a vehicle-sensing application.
• Accessory sensor kit detects vehicles taller than a pre-determined height as they
pass the enclosure.
List of Materials
Kit includes parts for mounting one Q40 opposed-mode sensor pair:
Quantity Model/Part # Description
2 67644 Stainless steel base brackets
2 SMB30SC Swivel mounting brackets
1 Q40SN6RQ
Q40 Receiver, 10-30V dc power, NPN output,
4-pin Euro-style QD fitting
1 Q406EQ
Q40 Emitter, 10-30V dc power, 2-pin Euro-style
QD fitting
2 FIC-M12F4 Field-installable 4-pin female connectors
1 61562 Mounting hardware packet

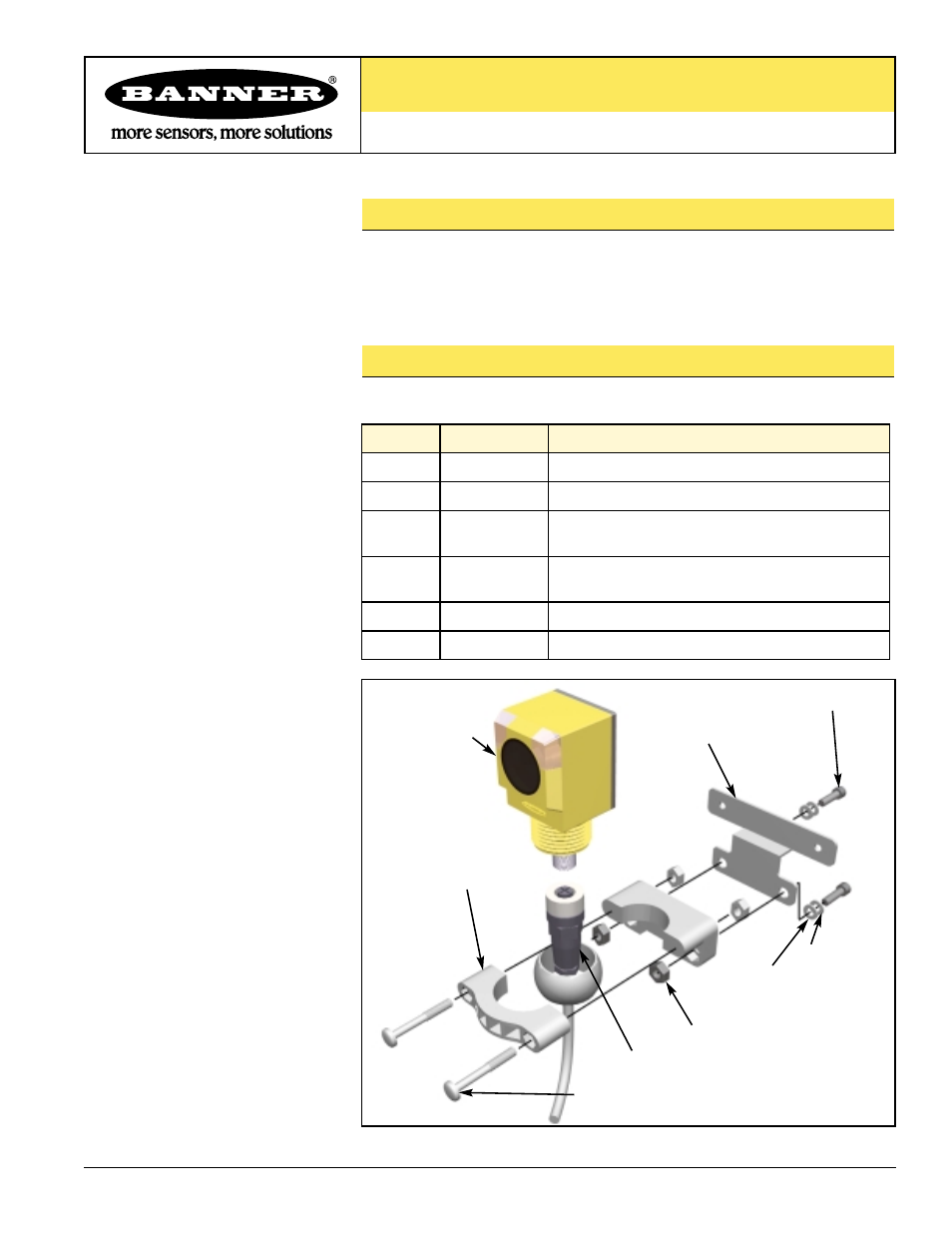

Figure 1. Over-Height Detection Kit components
Phillips Cap Head Screw
(Included with Bracket)
Field-wireable 4-pin Connector
1/4" x 20 SS Hex Nut
SMB30SC Swivel
Bracket Assembly
Q40 Sensor
1/4"x20 1/2"
Screw
Stainless Steel
Base Bracket
1/4"- 20 SS
Lock Washer
1/4"- 20 SS
Flat Washer
NOTE: User-supplied Cable
Not Included
