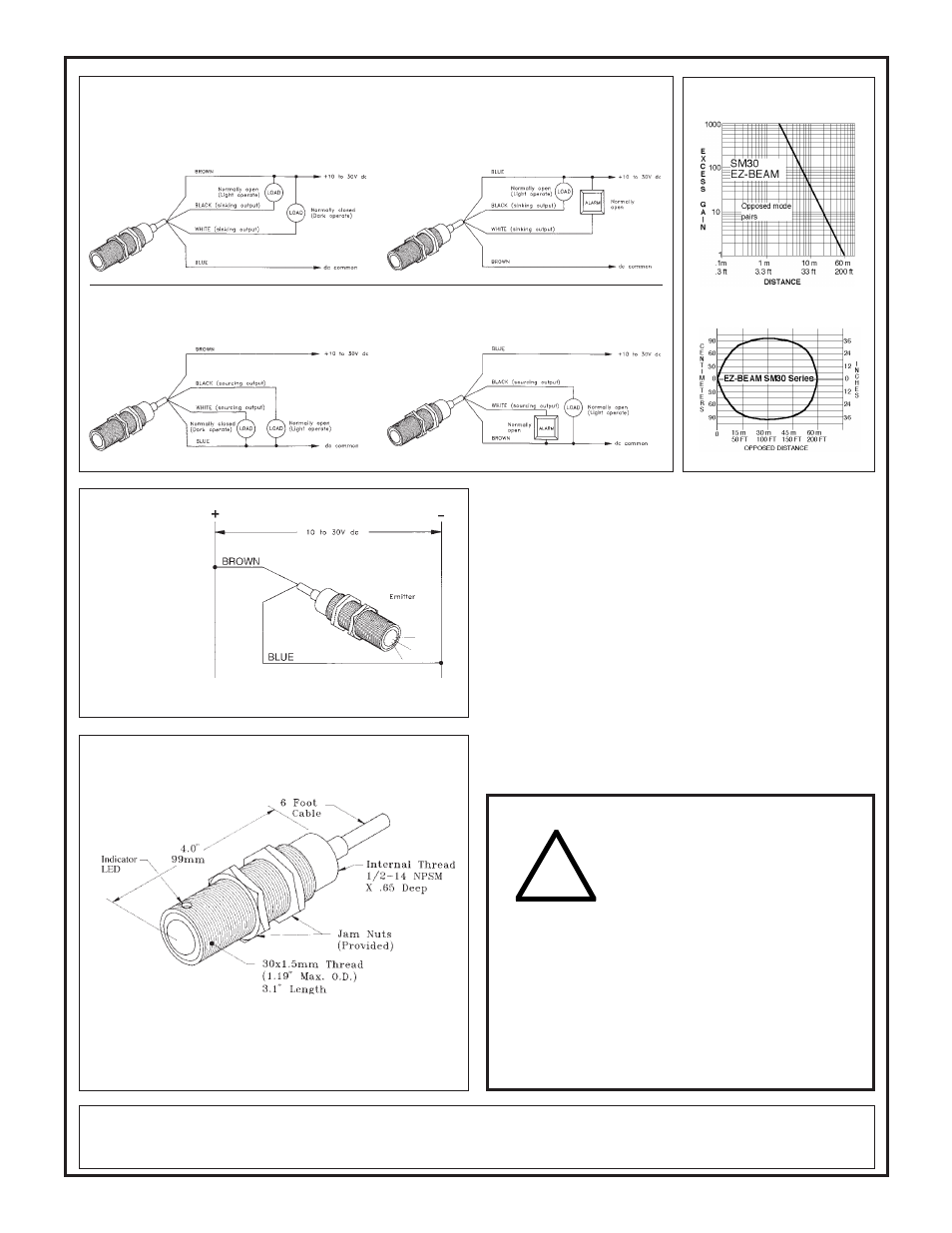

Standard hookup Hookup for alarm output
Standard hookup Hookup for alarm output
PNP (sourcing) models SM30SP6R and SM30SP6RQ*
NPN (sinking) models SM30SN6R and
SM30SN6RQ*
Hookup, SM30 Series dc opposed mode receivers
WARNING
These photoelectric pres-
ence sensors do NOT include the self-checking
redundant circuitry necessary to allow their use
in personnel safety applications. A sensor fail-
ure or malfunction can result in either an ener-
gized or a de-energized sensor output condition.
Never use these products as sensing devices for personnel protection.
Their use as safety devices may create an unsafe condition which
could lead to serious injury or death.
Only MACHINE-GUARD and PERIMETER-GUARD Systems,
and other systems so designated, are designed to meet OSHA and
ANSI machine safety standards for point-of-operation guarding de-
vices. No other Banner sensors or controls are designed to meet these
standards, and they must NOT be used as sensing devices for person-
nel protection.
!
* QD model, requires MQDC-415
or MQDC-415RA mating cable
Excess Gain Curve
Dimensions, EZ-BEAM SM30 Series sensors
* QD model requires MQDC-415 or MQDC-415RA mating cable
Hookup,
SM306E &
SM306EQ*
dc emitters
Quick Disconnect fitting adds .35" (9 mm) in overall length to QD models.
QD models require model MQDC-415 or MQDC-415RA cable
(cable must be ordered separately from sensor).
Mounting Options for EZ-BEAM SM30 Series
Sensors
The model SMB30A two axis mounting bracket has a curved
mounting slot for versatility and orientation. The SM30 Series
sensor mounts to the bracket using a jam nut (supplied with the
sensor). The curved mounting slot has clearance for 1/4-inch
screws. Bracket material is 11-gauge stainless steel.
The model SMB30S swivel-mount bracket offers the ultimate in
flexibility and convenience. This bracket mounts by its base. The
SM30 threads into the "ball" of the bracket, which locks snugly in
position when two clamping bolts are tightened. Bracket material
is black VALOX
® . Hardware is stainless steel, and mounting bolts
are included.
The model SMB30C split clamp mounts to a flat surface and grips
the SM30 sensor by its threaded barrel. This bracket is similar to
the SMB30S, but without the adjustable ball.
SM30 Series sensors may also be mounted in a 30-mm clearance
hole, using the supplied jam nuts.
Beam Pattern
