2 Installation
850 Professional IC – Anion – MCS – Prep 1
￭￭￭￭￭￭￭￭ 19
3
2
1
1
4
5

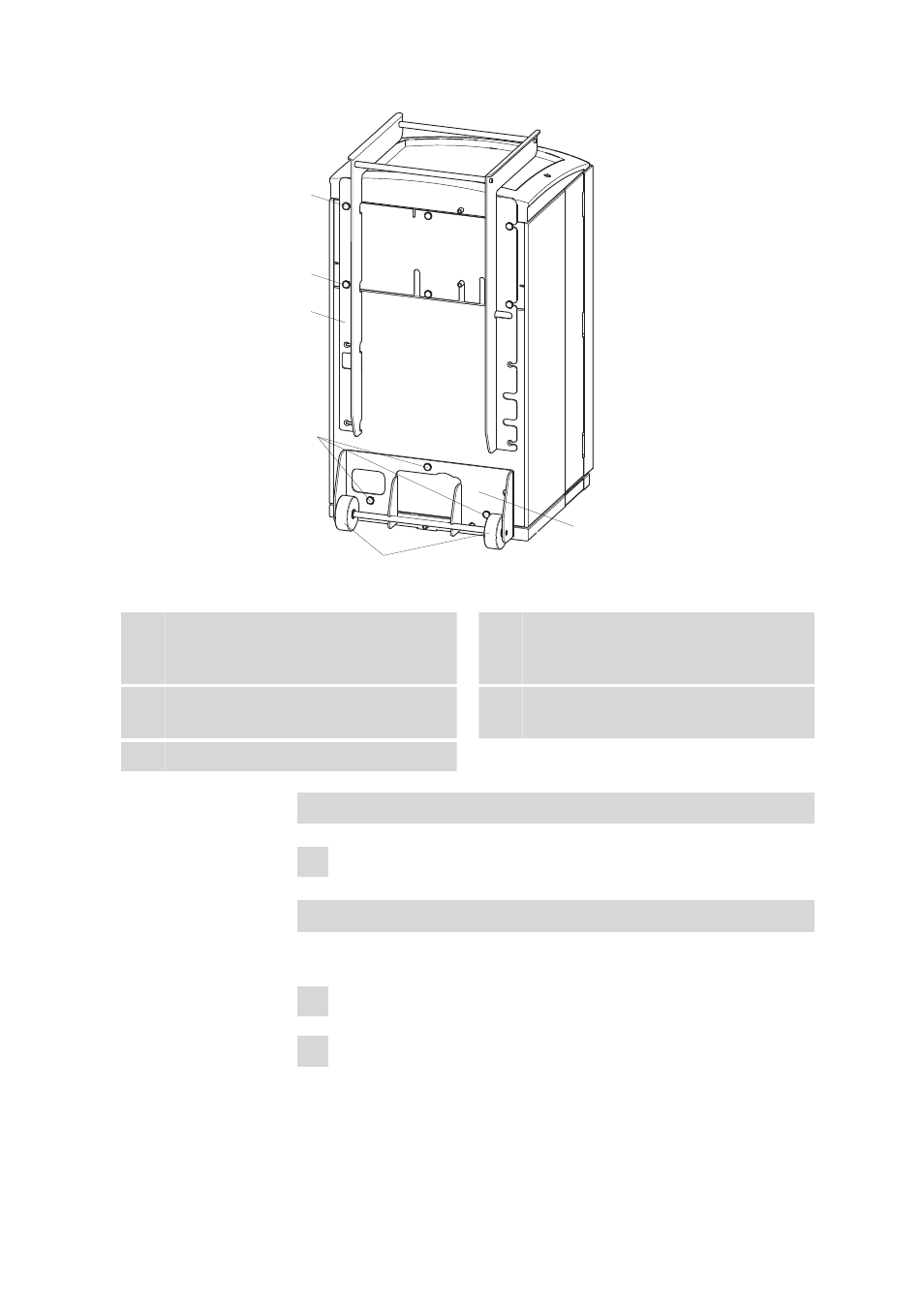

Figure 5 Rollers and handle
1 Knurled screws
For fastening the handle (5-
2 ) and the rear
panel of the detector chamber.
2 Handle
3 Knurled screws
For fastening the roller holder (5-
5 ).
4 Rollers
5 Roller holder
Removing handle
1 Loosen knurled screws (5-1) and remove handle (5-2).
Removing rollers
Proceed as follows to remove the rollers:
1 Remove knurled screws (5-3).
2 Remove roller holder (5-5).
