2.2 Parts of the dialysis cell
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4
￭￭￭￭￭￭￭￭
IC equipment: Dialysis
2.2
Parts of the dialysis cell

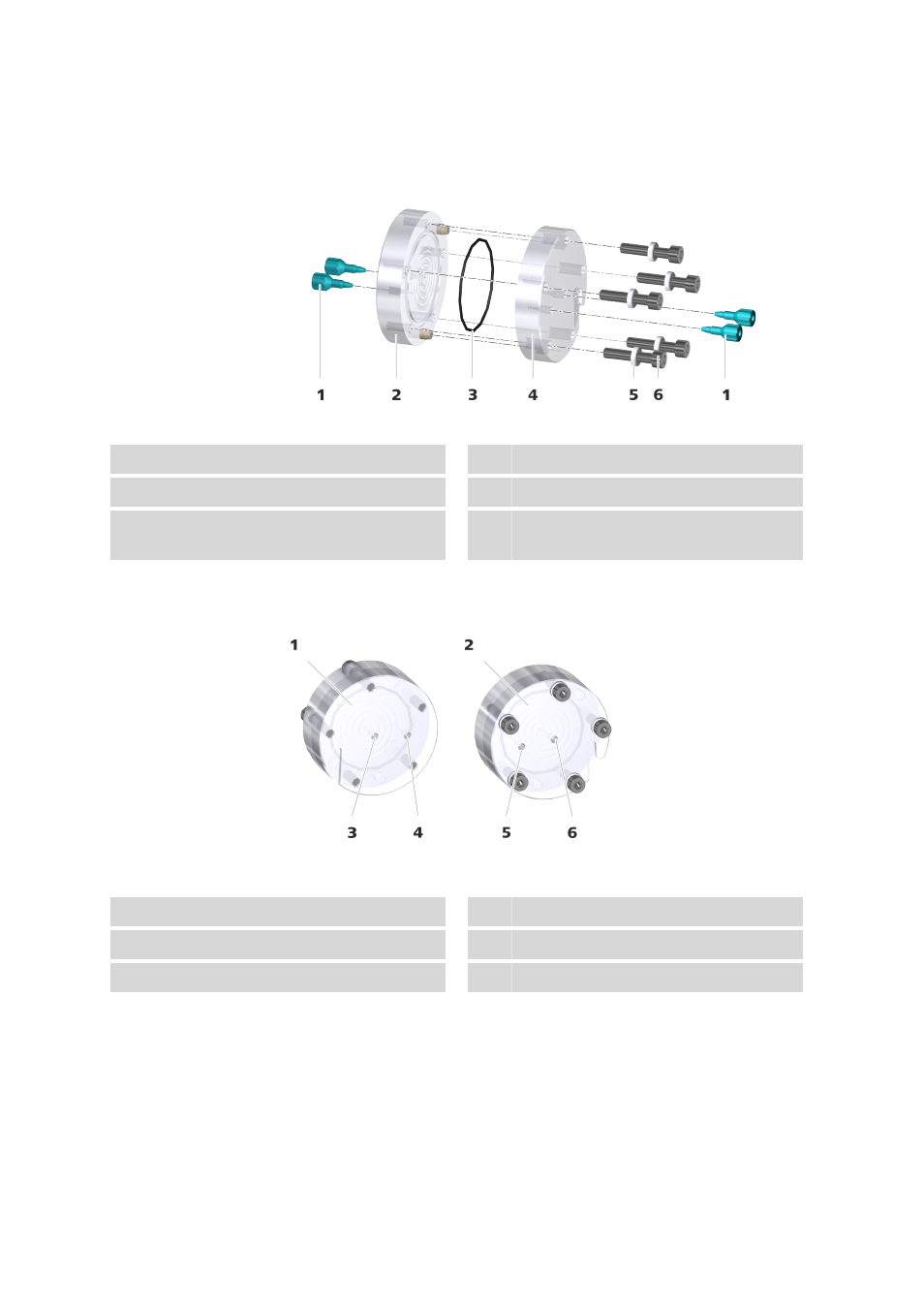

Figure 2
Dialysis cell – Parts
1
Stoppers
2
Left chamber
3
Sealing ring
4
Right chamber
5
Washers
6
Screws
For joining the right and the left chamber.
2.3
Dialysis cell connectors
Figure 3
Dialysis cell – Connectors
1
Left chamber
2
Right chamber
3
Outlet – Sample
4
Inlet – Sample
5
Inlet – Acceptor solution
6
Outlet – Acceptor solution
