4 Installation
941 Eluent Production Module (2.941.0010)
￭￭￭￭￭￭￭￭ 17
3 Insert the two measuring sensors from the inside into the two open-
ings for measuring sensors.
Assembling the bottle cap
Accessories For this step you need:
￭ Eluent bottle (6.1608.070) from the accessories set of the ion chroma-
tograph.
￭ Bottle cap for level sensor (6.1626.000) with inserted measuring sen-
sors (see "Inserting the measuring sensor", page 16).
￭ FEP aspiration tubing (6.1819.100)
￭ FEP tubing (6.1805.530)
￭ Level sensor cable (6.2151.060)
￭ Adsorber tube (6.1619.000)
￭ Spiral band (6.1815.010)

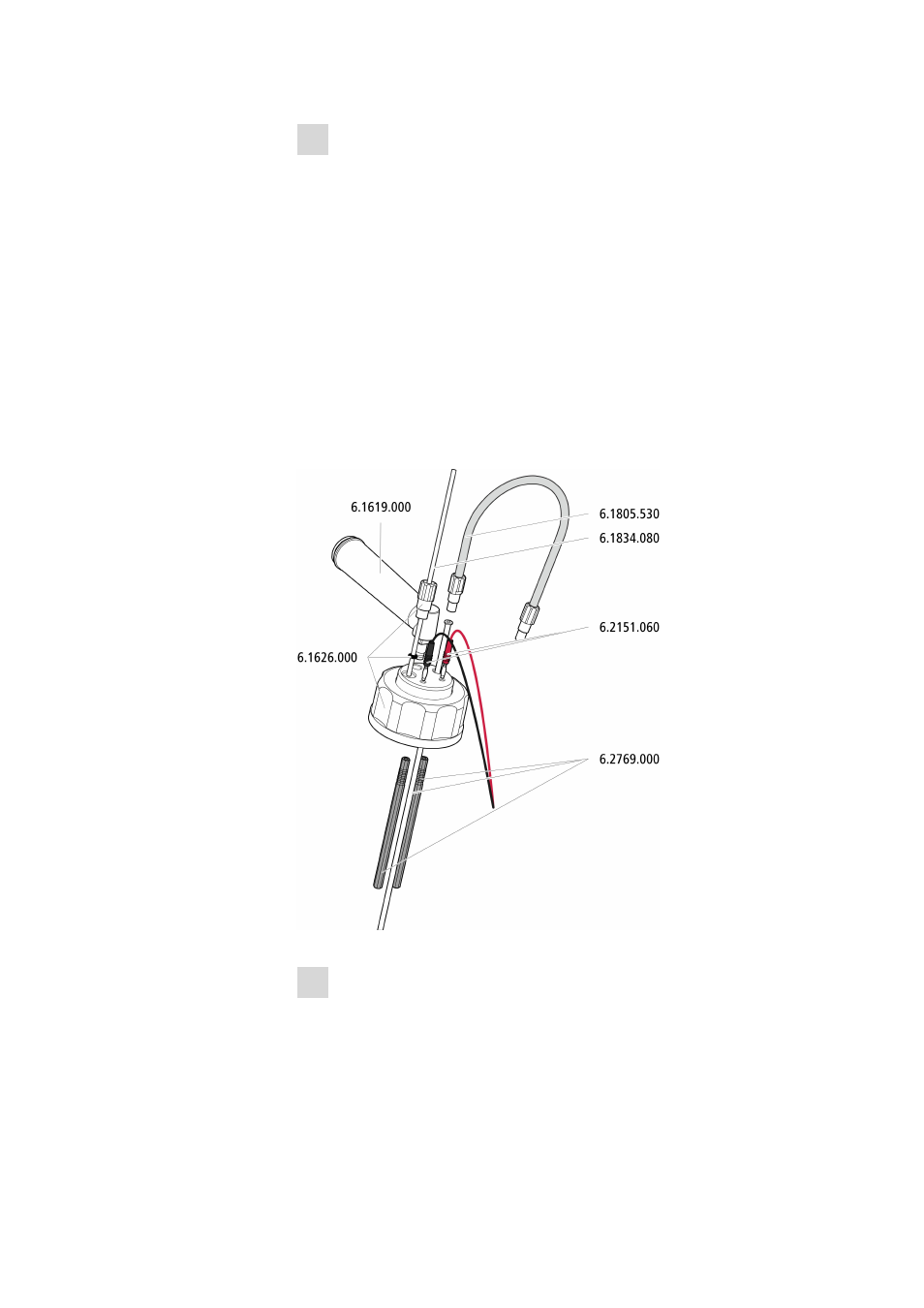

Figure 4 Installing the eluent bottle cap with level sensor
1 Connecting the FEP tubing
Fasten the tubing connection to the Dosino to the M6 opening.
￭ Insert the FEP aspiration tubing into the M6 opening.
￭ Screw the FEP tubing into the M6 opening.
