Figure 3, Figure 4, Installing the eluent bottle cap with level sensor – Metrohm Additional eluent for 941 User Manual
Page 11
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3 Installation
IC equipment: Additional eluent for 941
￭￭￭￭￭￭￭￭
5
3 Insert the two measuring sensors from the inside into the two open-
ings for the level sensor cables (2-4) and (2-5).

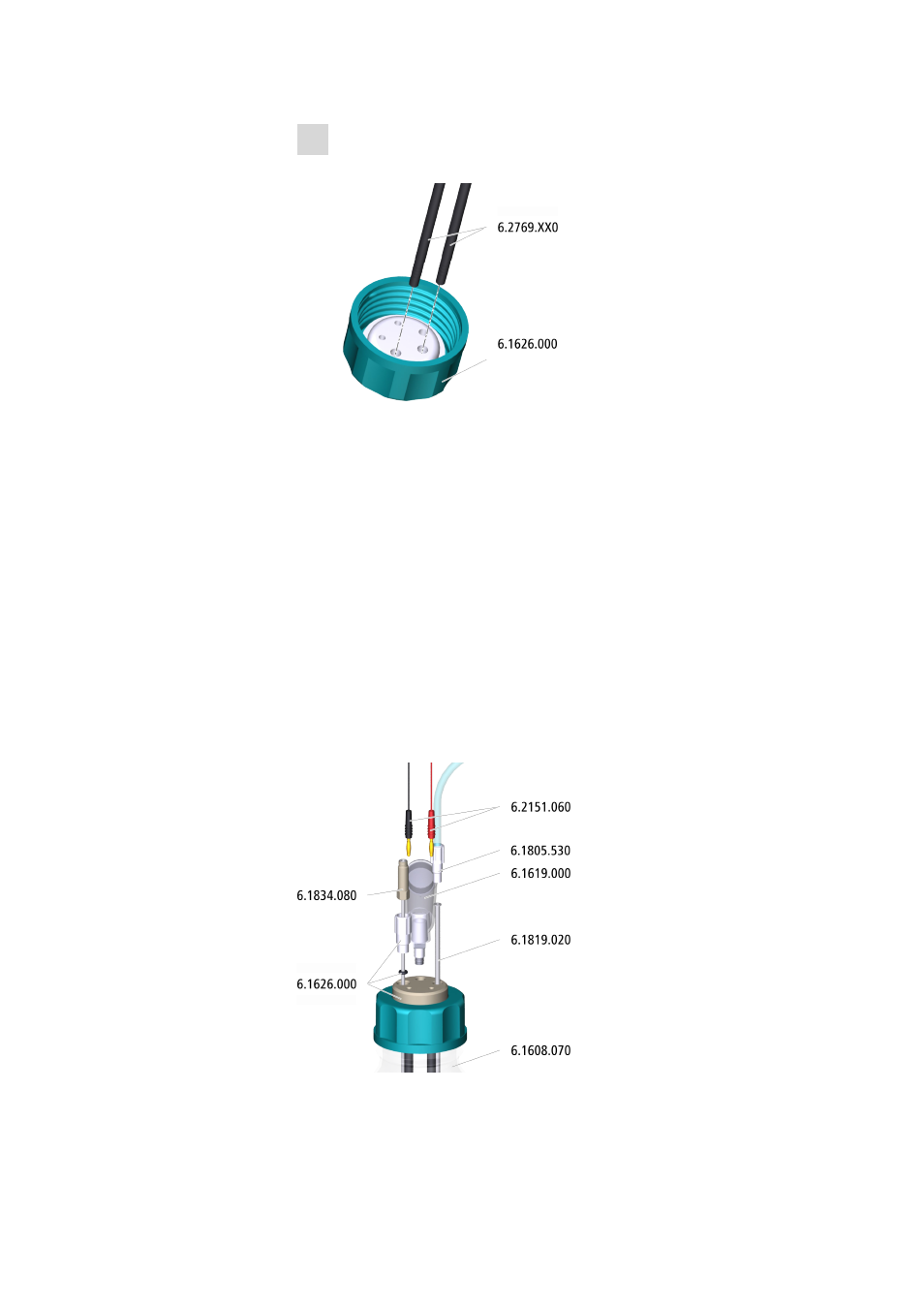

Figure 3
Bottle cap for level sensor - Inserting the measuring sen-
sors
Assembling the bottle cap
Required accessories
￭
Eluent bottle (6.1608.070) from the accessories set of the ion chro-
matograph
￭
Bottle cap for level sensor (6.1626.000) with measuring sensors
inserted (see "Inserting the measuring sensor", page 4)
￭
FEP aspiration tubing (6.1819.020), included in the accessories for the
dosing unit (6.3032.250)
￭
FEP tubing (6.1805.530)
￭
Level sensor cable (6.2151.060)
￭
Adsorber tube (6.1619.000), included in the accessories for the bottle
cap (6.1626.000)
￭
Spiral band (6.1815.010)
Figure 4
Installing the eluent bottle cap with level sensor
