3.1 Equipping the eluent bottle
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4 ￭￭￭￭￭￭￭￭
IC equipment: Additional eluent for 941
3 Installation
Proceed as follows to install the IC equipment: Additional eluent for 941:
￭ Equip the eluent bottle.
￭ Equip the concentrate bottle.
￭ Equip the ultrapure water container.
￭ Assemble the 800 Dosino and connect all tubings.
￭ Plug level sensor cable into the 941 Eluent Production Module.
3.1 Equipping the eluent bottle
For the automated eluent production, the eluent bottle has to be
equipped with a bottle cap for level sensor and a sensor. The sensor
choice depends on which fill level is to be monitored: bottle full (FULL) or
bottle empty (EMPTY).
Inserting the measuring sensor
Required accessories ￭ A bottle cap for level sensor (6.1626.000)
￭ FULL sensor (6.2769.000) for anion eluents or EMPTY sensor
(6.2769.1X0) for cation eluents

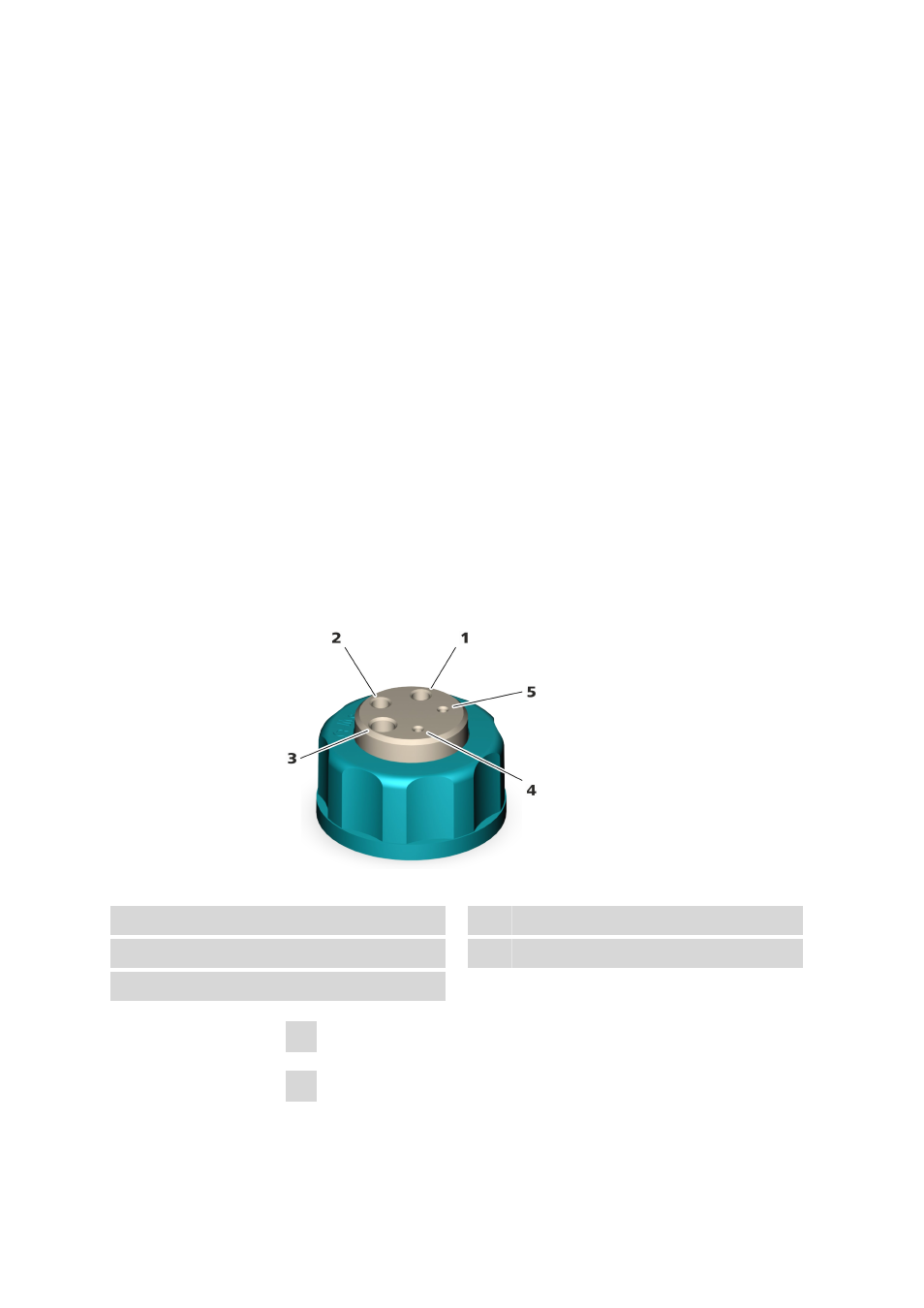

Figure 2 Bottle cap for level sensor – Openings
1 M6 opening 2 M6 opening
3 M8 opening 4 Opening for level sensor cable
5 Opening for level sensor cable
1 Remove the stoppers from the bottle cap.
2 Place the bottle cap on a surface with the opening facing up.
