5.1 Remote interface
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
24 ￭￭￭￭￭￭￭￭
846 Dosing Interface
5 Appendix
5.1 Remote interface
The 6.2148.010 remote box allows devices to be controlled which cannot
be connected directly to the MSB interface of the Dosing Interface.
1
2
3

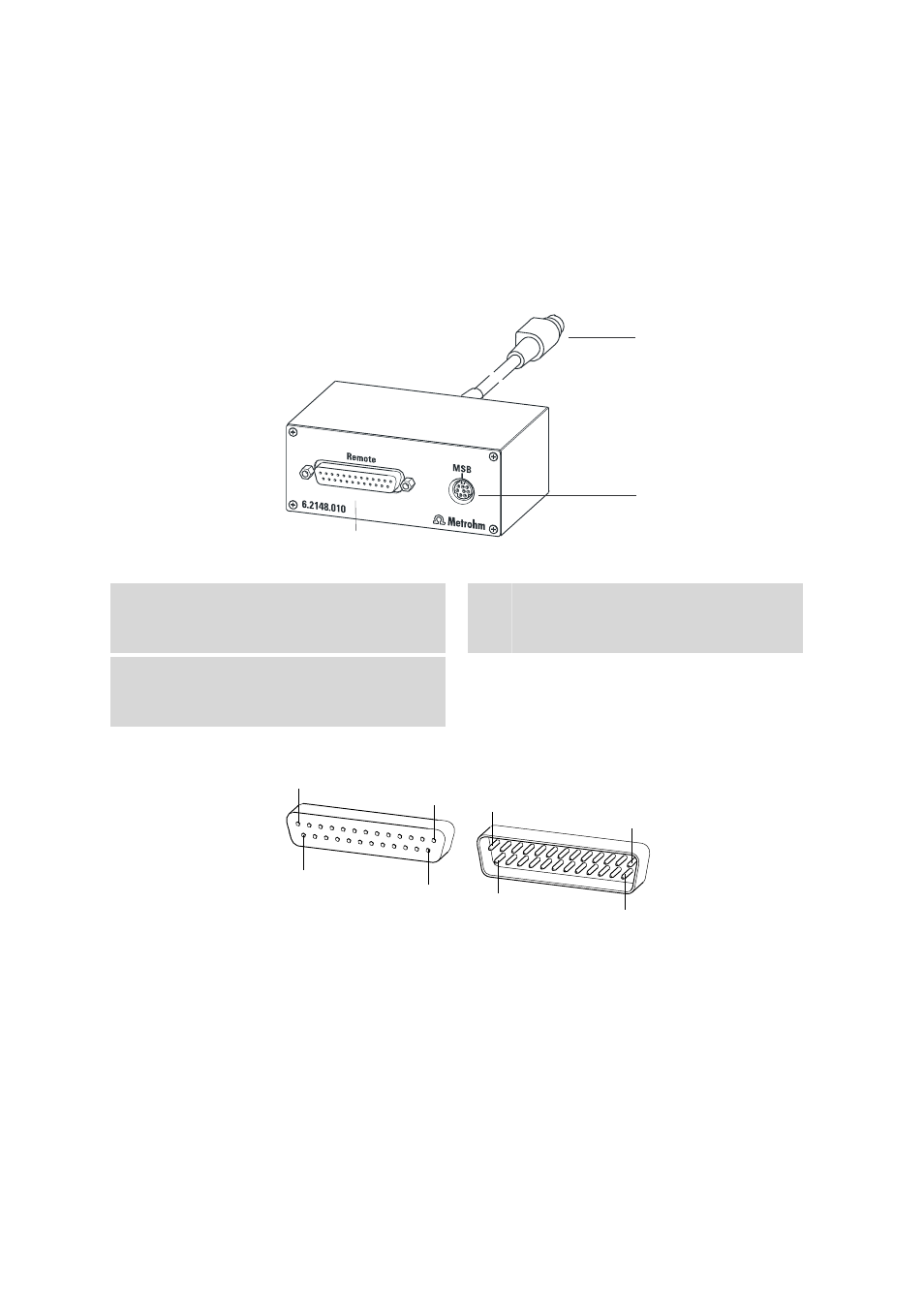

Figure 12 Connectors of the remote box
1 Cable
For connecting the Dosing Interface. 2 MSB connector
Metrohm Serial Bus. For connecting external
dosing devices or stirrers.
3 Remote connector
For connecting devices with a remote inter-
face.
5.1.1 Pin assignment of the remote interface
13
1
14
25
1
13
14
25
Figure 13 Pin assignment of the remote socket and plug
The above presentation of the pin assignment of a Metrohm remote inter-
face applies not only for the remote box, but also for all Metrohm devices
with 25-pin D-Sub remote connection.
