3.5 Connecting USB devices
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
18 ￭￭￭￭￭￭￭￭
846 Dosing Interface
3 Switch on the printer first, then the Touch Control.
4 Configure the printer in the device manager of the Touch Control
(see the Touch Control manual).
USB 1
USB 2
MSB 1 MSB 2
MSB 3 MSB 4
Made by Metrohm Herisau Switzerland
Controller
100 -200 V
f = 50 - 60 Hz
P = 45 W
Metrohm
Switzerland
Nr.
Typ

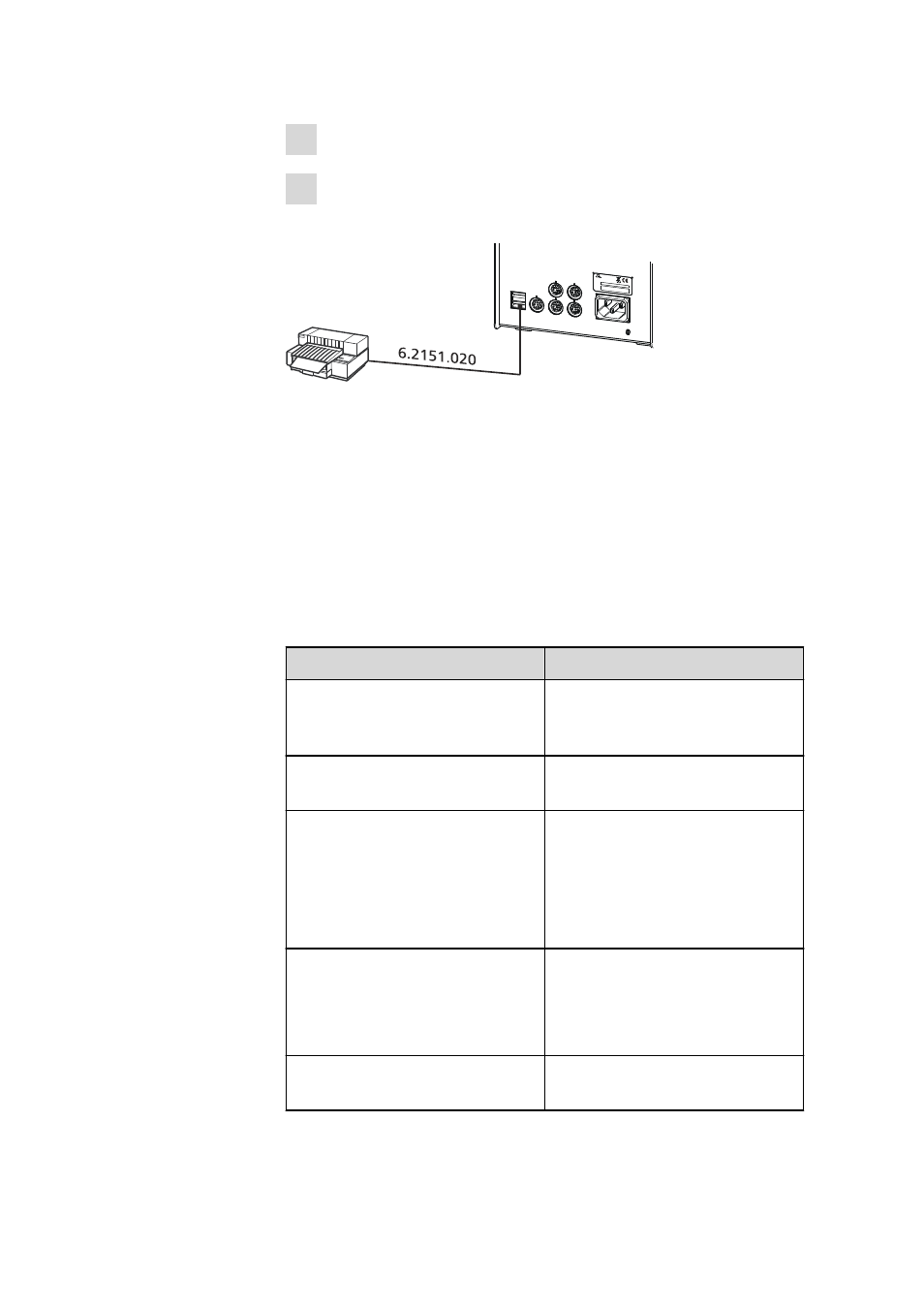

Figure 11 Connecting a printer
3.5.3 Connecting a balance
If you control the 846 Dosing Interface with a PC software, connect the
balance directly to the serial port (COM) on the computer. This is usually
9-pin and marked with the symbol IOIOI. If you operate the Titrando with
the help of the Touch Control, you will need the 6.2148.050 USB/RS-232
Converter for connecting a balance.
The following table offers an overview of the balances that you can use
together with the Titrando system and of which cable you will need for
connection to the RS-232 interface:
Balance Cable
AND ER-60, 120, 180,
182FR-200, 300FX 200, 300, 320
with RS-232 interface (OP-03) 6.2125.020 + 6.2125.010
Mettler AB, AG, PR (LC-RS9) In the scope of delivery for the
balance
Mettler AM, PM, PE with interface
option 016
or
Mettler AJ, PJ with interface
option 018
6.2146.020 + 6.2125.010
also from Mettler: ME 47473
adapter and either ME 42500
hand switch or ME 46278 foot
switch
Mettler AT 6.2146.020 + 6.2125.010
also from Mettler: ME 42500
hand switch or ME 46278 foot
switch
Mettler AX, MX, UMX, PG, AB-S,
PB-S 6.2134.120
