PRO DQ g2 Installation and User’s Manual

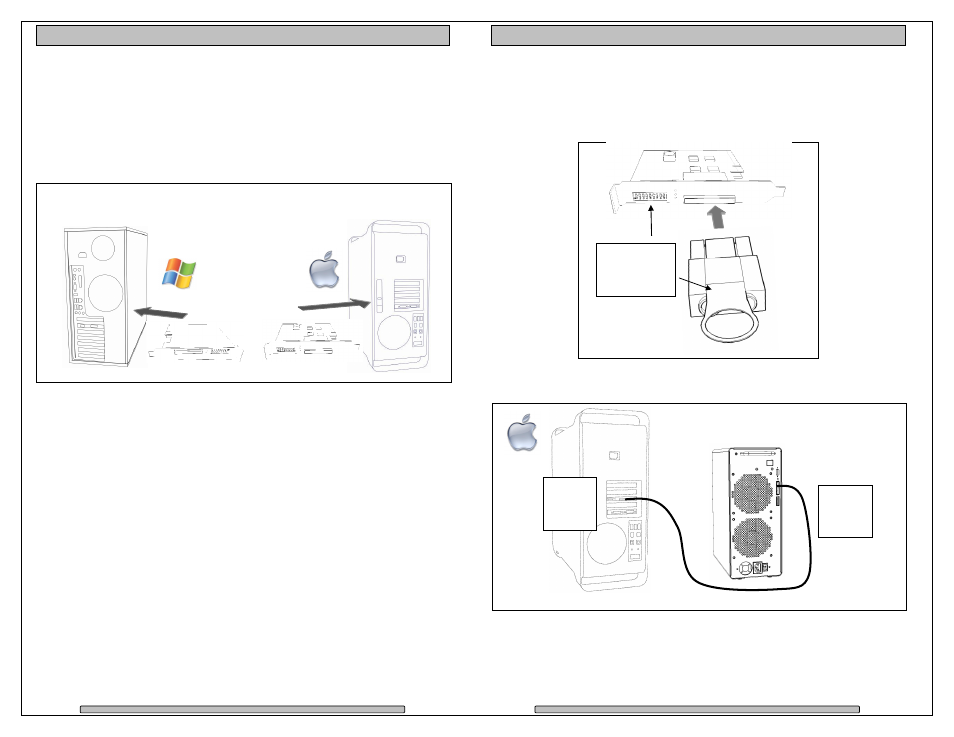

4.2.2. HBE Card Installation
The PCI-e HBE Card requires a x8 slot or larger. Computers with PCI-e slots
less than x8 will not physically accommodate the HBE. PCI-e slots x8 or larger
will work.
Apple Mac Pro (Intel) and newer versions of Power Mac G5 support PCI-e, as
well as the HP xw series workstations.
Typical
Windows PC Apple Mac Pro
and Power Mac
Page 16
PRO DQ g2 Installation and User’s Manual
4.2.3. HBE Cable Connection
The HBE PCI-e x8 cable carries 8 lanes of the PCI-e interface. The green tab is
up in this orientation. To remove, pull the tab to unlock the latches and then pull
the metal body to remove the connector.
4.2.4. Mac Connection
Mac Pro or Power Mac
Green
Tab on
top.
Green
Tab to
left.
Uplink
Port x8
Switches to
left, green
Tab on top.
