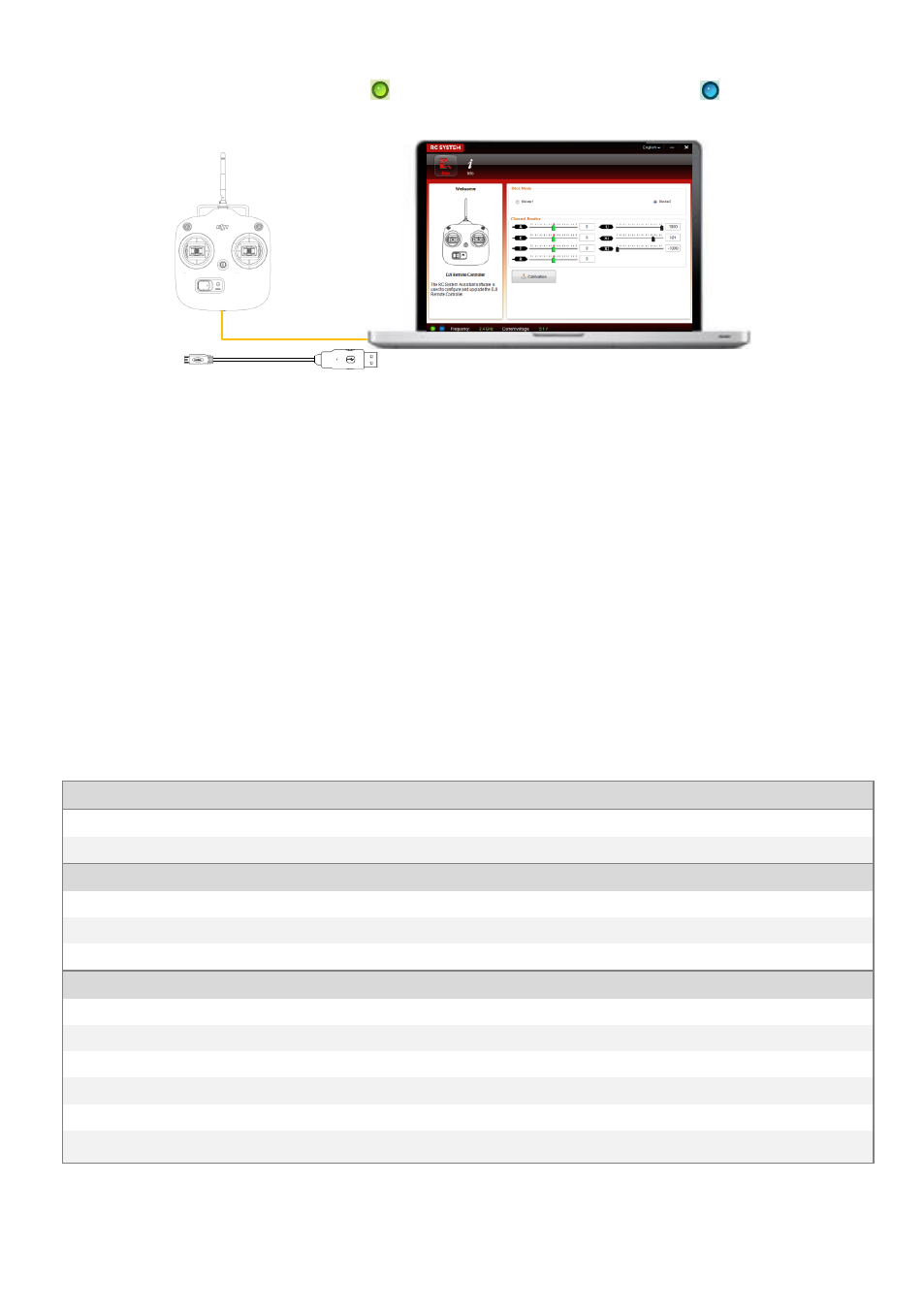

3. Run the RC SYSTEM Assistant software. Wait for the remote controller to connect to the Assistant software.
When the connection indicator is solid green and the communication indicator blinks blue , it has connected.
DT7 调参软件
Firmware Upgrade
1. On the [Info] page, click Latest version to download and install the upgrade following prompts.
2. Power cycle the remote controller after finishing the upgrade. Check the firmware version on the [Info] page, if
Assistant software shows the latest version, upgrade was successful.
Stick Mode Configuration
1. Select your custom control mode in the Stick Mode bar on the [Main] page.
2. Power cycle the remote controller, push both sticks and observe whether the cursors in the respective channels
are moving. This will confirm stick mode configuration.
Sticks Calibration
1. On the [Main] page, click the “Calibration” button to calibrate the sticks following prompts.
2. Calibrate the remote controller after every firmware upgrade or configuration, and calibrate on a regular basis.
DT7&DR16 Specifications
DJI DESSET 2.4G SYSTEM
Operating Frequency 2.4GHz ISM
Communication Distance （open area） 1000m
Remote Controller
General 2-stick, 7-channel
Working Current 100mA@6V
Battery Required 4 AA Batteries
DJI Receiver 16
General 2.4GHz D-BUS System
Receiving Sensitivity （1%PER） -97dBm
Working Current 145mA@5V
Power Supply 4~8.4V
Size 41mmX29mmX5mm
Weight 10g
