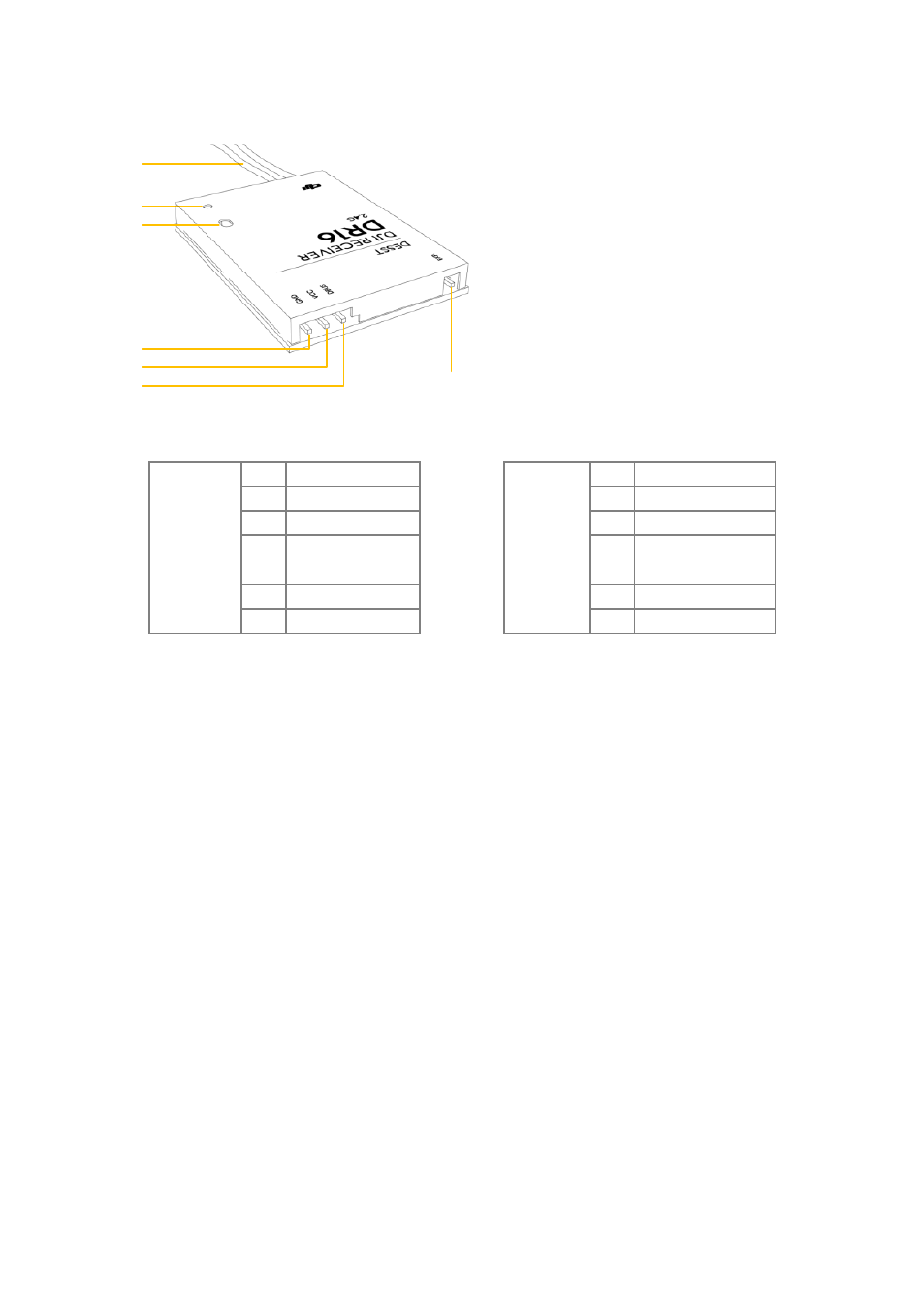

DR16 Receiver
The DR16 is a 16 channel receiver working at the 2.4GHz frequency band. It is compatible with the DT7 remote
controller.
[1]
[2]
[3]
[7]
[6]
[5]
[4]
[1] Antenna
[2] LED Indicator
[3] Link Button
[4] GND
[5] VCC
[6] DBUS
[7] EXP.
Default Channel Mappings of DT7&DR16
MODE 1
A J1
MODE 2
A J1
E J3 E J2
T J2 T J3
R J4 R J4
U S1 U S1
X1 Slider Lever X1 Slider Lever
X2 S2 X2 S2
Usages of the DT7 Remote Controller
Turn on the remote controller
1. Open the battery compartment on the back of the remote controller.
2. Install 4 AA batteries into the compartment according to the signs of negative and positive poles.
3. Push the power switch to the right to power on the remote controller. If the power LED indicator is solid red, the
remote controller is functioning normally.
4. The remote controller’s antenna should point skywards without obstructions for maximum communication range
during flight.
Turn off the Remote Controller
Push the power switch to the left to power off, the power LED indicator will be out and the remote controller will be
turned off.
Important Notes
 Turn on the remote controller before powering on the aircraft. Power off the aircraft before turning off the
remote controller.
 Avoid interferences between the remote controller and other wireless equipment.
 Remove batteries from the remote controller before long term storage.
 Ensure batteries in the remote controller have enough capacity before every flight.
 Dispose of batteries according to their instructions.
