ALPHA WASH 300 29
sж,!-0ж#/.42/,жONLYæWITHæOPTIONæ,DMXæ/N æ
æCHANNELж
)-0/24!.4жAlpha Wash 300 is not provided with hot restrike igniter
LAMP ON
LAMP ON
BIT % EFFECT
255 100
180 70.5
0 0.0
101 39.5
ON
ON
OFF
100 39.0 LAMP OFF
179 70.0
26 10.0 LAMP OFF
25 9.7
OFF
UNUSED RANGE 1
UNUSED RANGE 2
The function is activated
staying 5 s in Lamp ON levels.
The function is activated
passing throug the unused
range 1 and staying 5s in
Lamp OFF levels.
s 2%3%4
CHANNELæ
BIT % EFFECT
255 100
128 50.0
127 49.7
77 30.0
76 29.7
26 10.0
25 9.7
0 0.0
Complete reset is activated passing
throug the unused range and staying
5 seconds in complete reset levels.
COMPLETE RESET
PAN / TILT RESET
PAN / TILT RESET
EFFECTS RESET
EFFECTS RESET
UNUSED RANGE
Pan / Tilt reset is activated passing
throug the unused range and staying
5 seconds in Pan / Tilt reset levels.
Effects reset is activated passing
throug the unused range and staying
5 seconds in Effects reset levels.
COMPLETE RESET
sж4),4ж&).%
æCHANNELæ

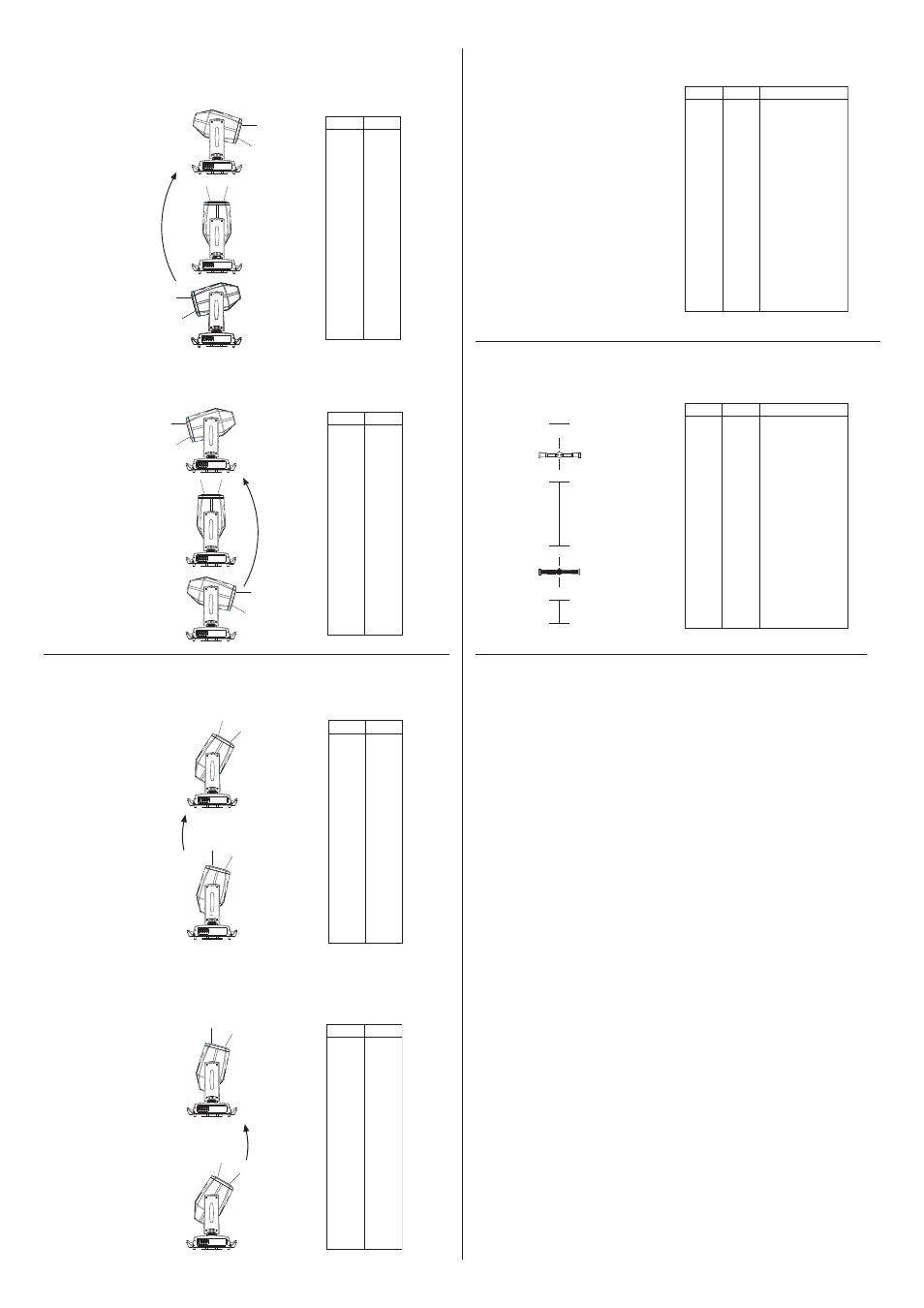

Operation with option Til
G
Off
(Pan conventionally represented at 0% and option Pan
G
Off)
BIT %
255 100
0 0.0
Operation with option Til
G
On
(Pan conventionally represented at 0% and option Pan
G
Off)
BIT %
255 100
0 0.0
sæ4),4
æCHANNELæ
Operation with option Til
G
Off
(Pan conventionally represented at 0% and option Pan
G
Off)
BIT %
255 100
0 0.0
128 50.0
Operation with option Til
G
On
BIT %
255 100
0 0.0
128 50.0
Continua / Continue
➔
