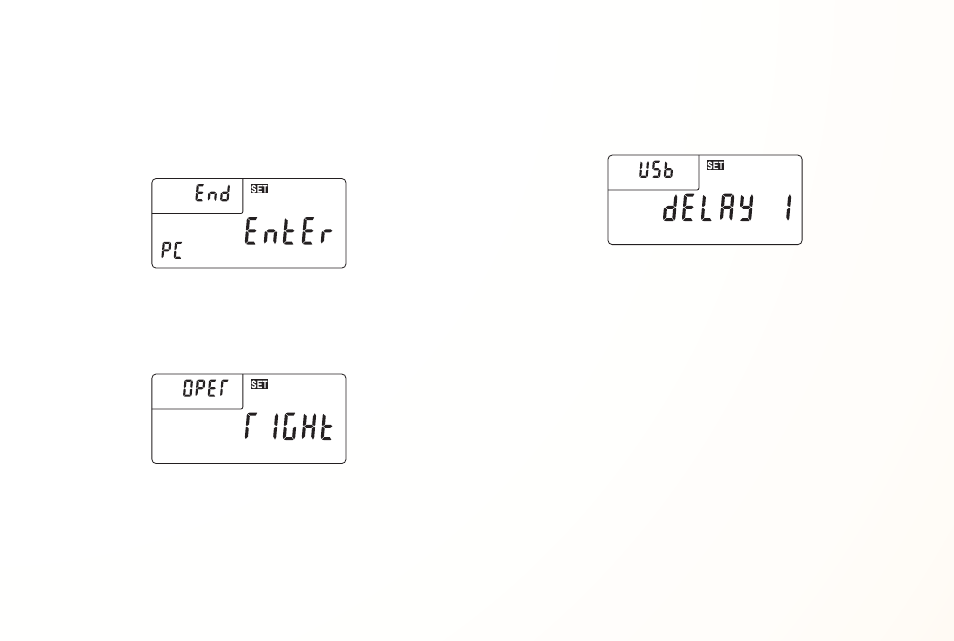

5. PC SEND TERMINATING COMMAND:
Enter* – Performs an ENTER command after value is sent to the PC.
Tab – Performs a TAB command after value is sent to the PC.
Left – Performs a LEFT command after value is sent to the PC.
Right – Performs a RIGHT command after value is sent to the PC.
Up – Performs an UP command after value is sent to the PC.
Dn – Performs a DOWN command after value is sent to the PC.
None – Performs no action after value is sent o the PC.
6. DIGITIZER OPERATION ORIENTATION:
Right* – Sets to right-hand operation orientation while in
Digitizer Mode. See Right-Hand Assembly section.
Left – Sets to left-hand operation orientation while in Digitizer
Mode. See Left-Hand Assembly section.
7. USB SEND DELAY:
Delay 1* – FASTEST USB send speed.
Delay 2 – MEDIUM USB send speed.
Delay 3 – SLOW USB send speed.
Delay 4 – SLOWEST USB send speed.
Use this setting to reduce the USB send speed if using a slower
computer and experiencing problems sending values.
*An asterisk denotes a default value.
