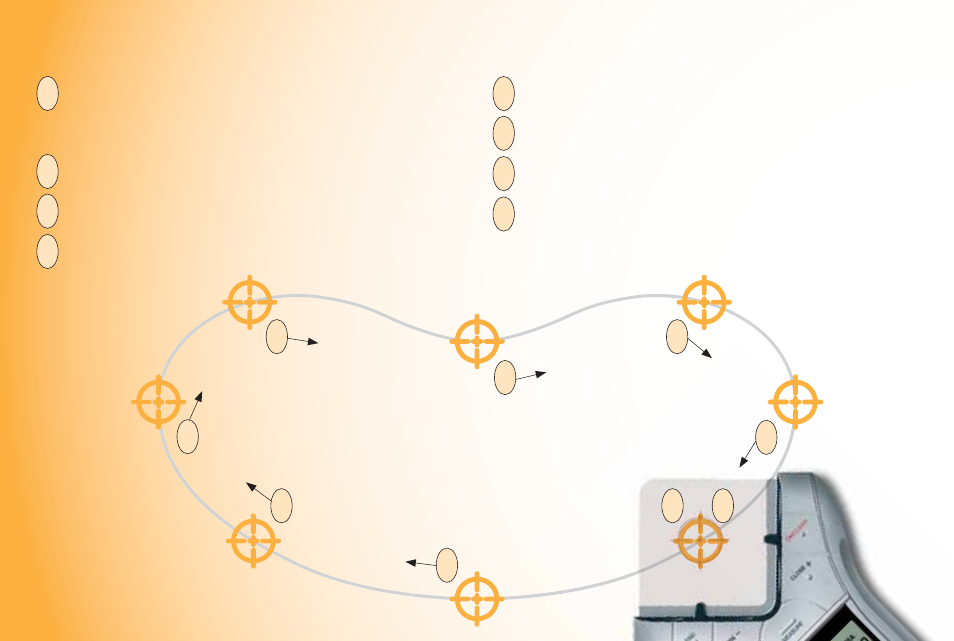

MEASURING IRREGULAR SHAPES
OPERATING SEQUENCE
1. Press the [ON/CLEAR] key twice to clear the display.
Place the crosshairs over the fi rst point and press the
[MEASURE]
key.
2. Move to the second point and press the [MEASURE] key.
3. Move to the third point and press the [MEASURE] key.
4. Move to the fourth point and press the [MEASURE] key.
5. Move to the fi fth point and press the [MEASURE] key.
6. Move to the sixth point and press the [MEASURE] key.
7. Move to the seventh point and press the [MEASURE] key.
8. Move to the eighth point and press the [MEASURE] key.
The accumulated Lengths of the seven measured
segments will be displayed.
4
5
6
1
2
7 3
1 5
6
7
8
2
3
4
8
