Bully Dog 53254 Rapid Flow Induction (RFI) Cold Air Intake - Manual (Page 9)

15 16

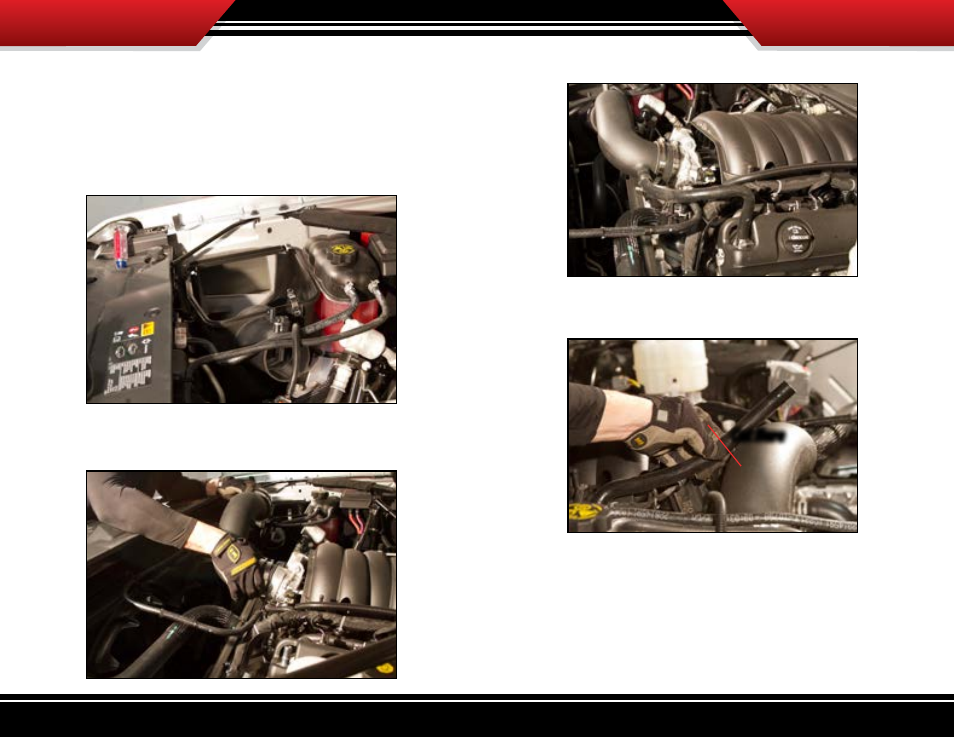

Installing the RFI intake:
1. Place the Bully Dog RFI bottom into the engine bay over the spot where the stock filter
housing plate was originally placed, with the RFI MAF tube still installed.
*Using three of the 10mm bolts that Bully Dog supplied, secure the RFI
bottom to the inside of the engine bay.*
IMPORTANT: Do not over-tighten the screws, as this could damage the Bully Dog intake.
2. Install the Stage 2 air intake tube assembly. Move couplers so that the connections are
equal on either side of the couplings before tightening the clamps. Tighten the band clamps
when everything is installed correctly.
RFI Installation
3. Install the Bully Dog CCV tube on the driver side first. Tighten #8 clamps when installed.
4. Install the other Bully Dog CCV tube on the passenger side by first securing it to the
engine. Guide the tube to the Stage 2 intake tube and mark where it should be cut. After
cutting the tube, install and tighten the tube to the Stage 2 intake tube with the #8 clamp.
RFI Installation
Cut Here
