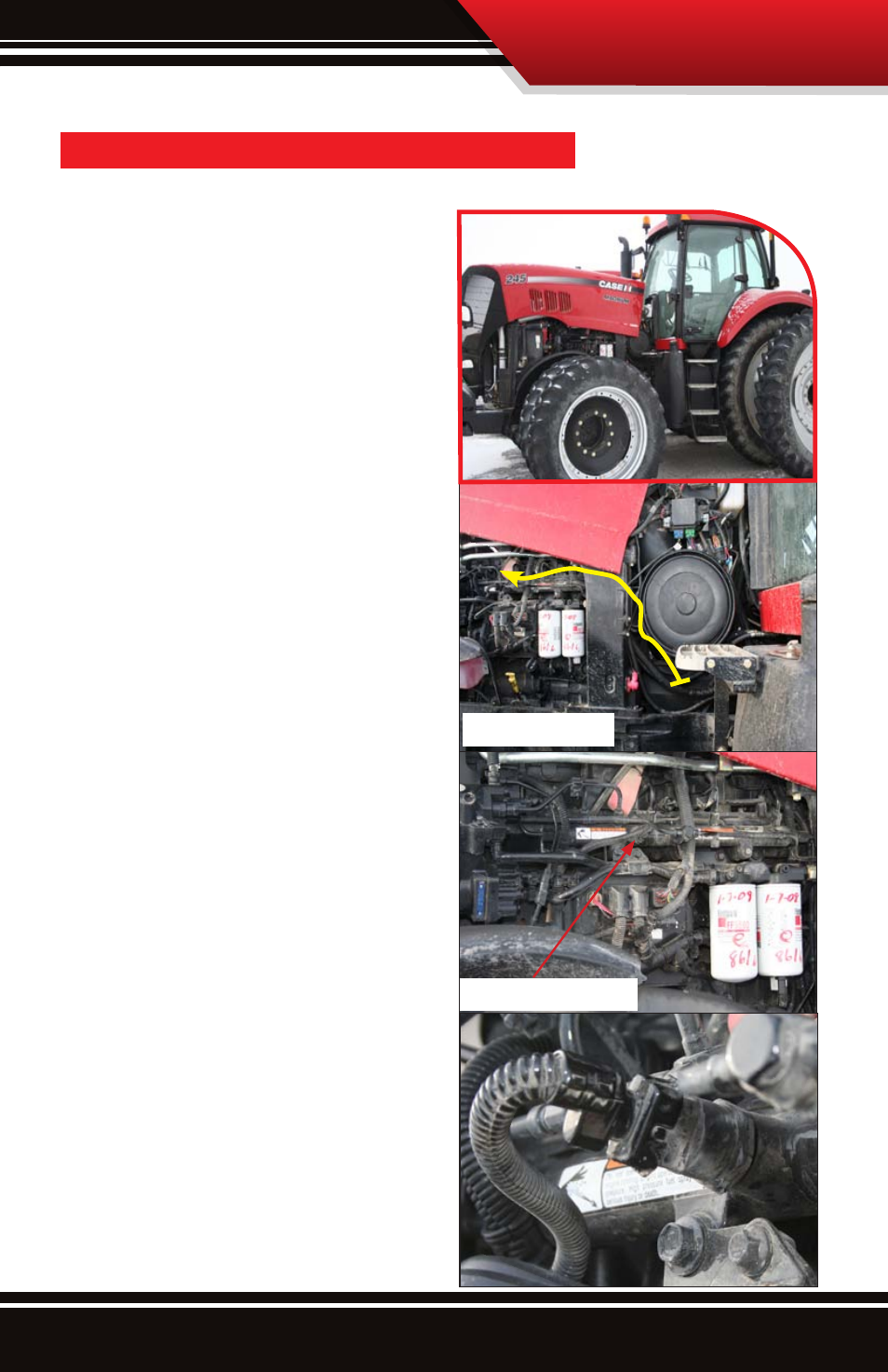

installation instructions:
1.
Open Hood of Tractor, install module when engine
is off and is cool.
2.:
Place module below the air filter in a safe location
and run cable along the wiring harness toward the top
of the fuel rail.
3.
Locate the Fuel Rail pressure sensor located on the
fuel rail.
rPm inSTAllATiOn
Fuel Rail Pressor Sensor
Module cable run
