NITROUS KIT

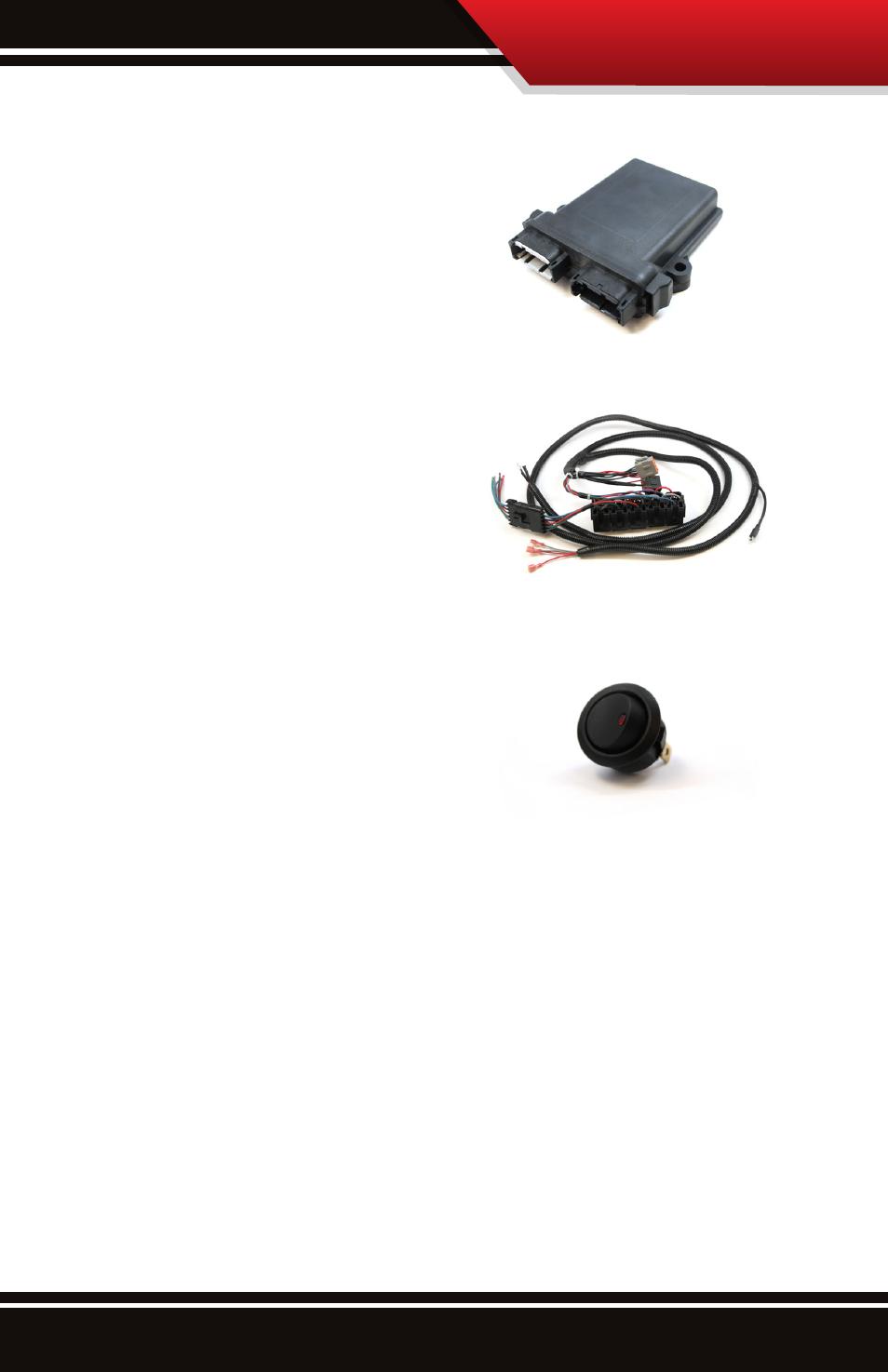

Parts Description
Control Module
The control module interprets
the signals from the GT or
WatchDog and controls the
solenoids.
Wiring Harness
The wiring harness contains
multiple wires and connects all
of the parts of the Nitrous Kit
with the vehicle and the GT or
WatchDog.
Master Switch
A safety measure, the master
switch will turn the Nitrous Kit
off regardless of key position
and GT or WatchDog settings.
Installation
1. Locate a key-on fuse.
‣ It only has power when the key is in the “on” (or
“run”) position.
‣ Use a 12 volt test light or your vehicle owner’s
manual to locate one.
‣ 12 volts at 15 – 20 amps.
2. Choose the control module location:
‣ Away from extreme heat and moving parts
‣ All wires must reach and connect without straining
