Connections
3-5 5975007 BARCOGRAPHICS 808S 051196

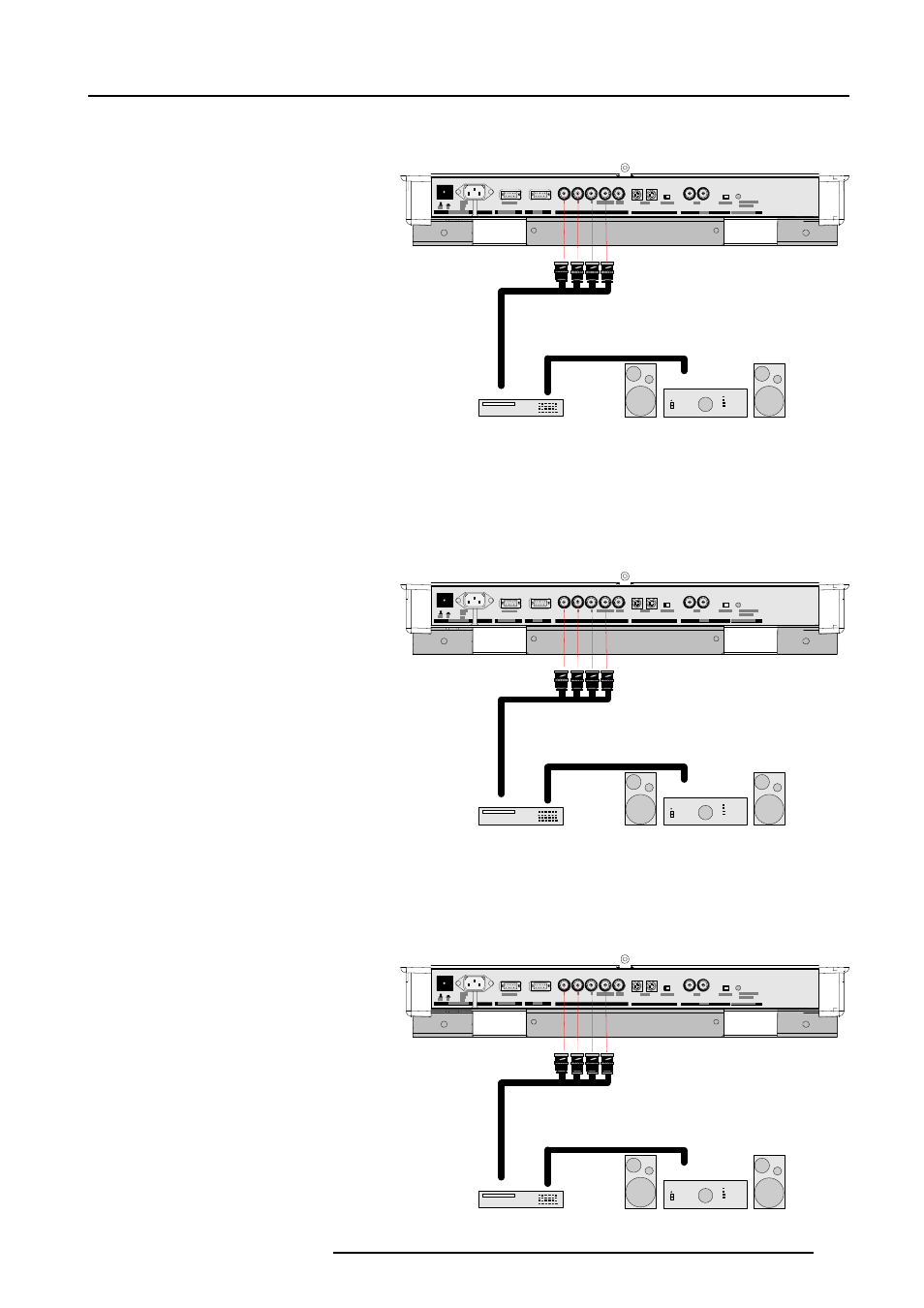

Connecting a RGB Analog source with Tri-level
sync to port 4/5.
(option)
RGB analog input terminals with Tri level sync input or
with Tri-level sync on green. The projector detects
automatically where the sync signal is located.
PORT 4/5
See installa tion ins tructio ns befor e conne cting to the sup ply.
Voir la notice d'installation avant de raccorder au réseau.
12 0/2 30 V
7/5 Amp
50/60 Hz 7 5 Ohm
POR T 2
7 5 Ohm
798
VCR HDTV player
Audio amplifier
This devi ce complies with p art 15 of the FCC rules. Operation is subject to
following two conditions (1). This
device may not cau se harmful inter- ference, and (2) this device must
accept an y interference r eceived
including interference that may cause undesired operation"
RGB input selection :
(RG3sB : R, G, B signals with automatic Tri-level sync detection)
with the RCU or the build in RCU : press digit button 7
Connecting a Component Video source to
port 4/5.
A component video (R-Y, Y, B-Y) with sync signals can be connected
to the projector via the Port 4/5. The projector detects automatically
where the sync signal is located.
PORT 4/5
See installa tion ins tructio ns befor e conne cting to the sup ply.
Voir la notice d'installation avant de raccorder au réseau.
12 0/2 30 V
7/5 Amp
50/60 Hz 7 5 Ohm
POR T 2
7 5 Ohm
798
VCR HDTV player
Audio amplifier
This devi ce complies with p art 15 of the FCC rules. Operation is subject to following two conditions (1). This
device may not cau se harmful inter-
ference, and (2) this device must accept an y interference r eceived including interference that may cause undesired operation"
To select the component video input :
with the RCU or the build in RCU : press digit button 6.
PORT 4/5
See installa tion ins tructio ns befor e conne cting to the sup ply.
Voir la notice d'installation avant de raccorder au réseau.
12 0/2 30 V
7/5 Amp
50/60 Hz 7 5 Ohm
POR T 2
7 5 Ohm
798
VCR HDTV player
Audio amplifier
This devi ce complies with p art 15 of the FCC rules. Operation is subject to
following two conditions (1). This
device may not cau se harmful inter- ference, and (2) this device must
accept an y interference r eceived
including interference that may cause undesired operation"
To select the component video input :
with the RCU or the build in RCU : press digit button 8.
Connecting a Component Video source with Tri-
level sync to port 4/5.
(Opion)
A component video (R-Y, Y, B-Y) with Tri-level sync signals can be
connected to the projector via the Port 4/5. The projector detects
automatically where the sync signal is located.
