Connections
3-4 5975007 BARCOGRAPHICS 808S 051196

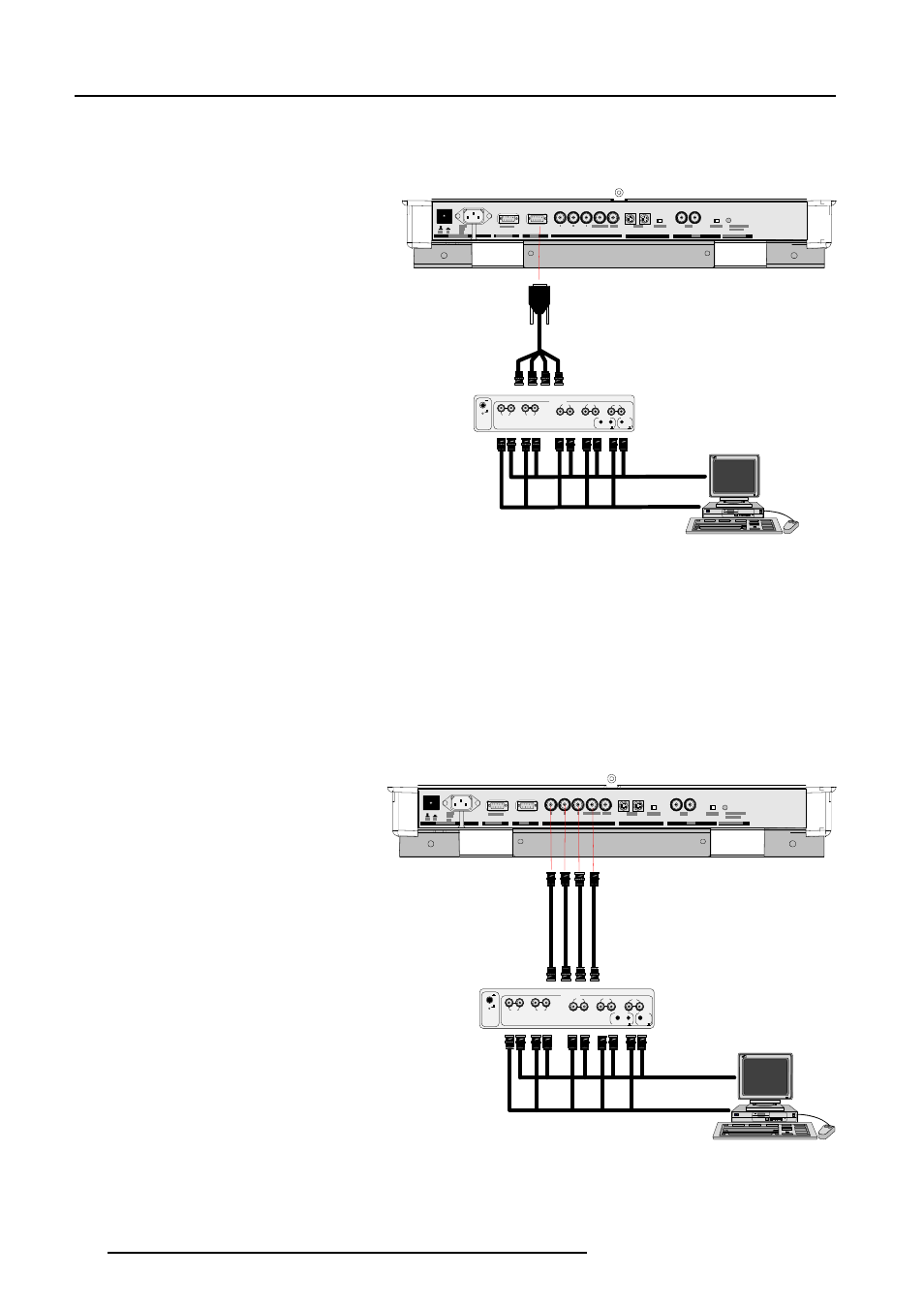

Connecting a RGB Analog source to port 3.
Connect your RGB source via an interface to Port 3.
Always use an interface when a computer and local monitor have to
be connected to the projector.
Barco interfaces which can be applied :
Universal analog interface
R9826100
RGB 120 MHz analog interface R9826570
VGA interface
120V R9828079
230V R9828070
MAC interface 120V R9828059
230V R9828050
MAGIK interface 120V R9828129 & R9828128
230V R9828120 & R9828121
RGB analog input with automatic sync detection. (Separate H and
V sync inputs, with composite sync input or with sync signals on
green)
Pin configuration D9 connector of the Analog input.
1
not connected
2 ground RGBS
3 RED
4 GREEN
5 BLUE
6 ground RGBS
7 ground RGBS
8 Hor/comp. sync
9 Vert. sync
Analog Input Selection :
with the RCU or build in RCU, press digit button 3.
PORT 4/5
See installation instructions b efore connecting to the supply.
Voir la not ice d'in stallat ion ava nt de r accorder au rés eau.
12 0/2 30 V 7/5 Amp
50/60 Hz 75 Ohm
PORT 2
7 5 Oh m
INP INP R G
B H V
INPUT ANALOG INTERF. 120MHz ON
OFF
in ver. 75 o h m t erm .
361
This device complies with part 15 of
the FCC rules. Operation is subject to
following two conditions (1). This
device may not cause harmful inter-
ference, and (2) this device must
accept any interference received
including interference that may cause
undesired operation"
Connecting a RGB Analog source to port 4/5.
RGB analog input terminals with separate H and V sync inputs, with
composite sync input or with sync signals on green (automatic sync
detection).
Always use an interface when a computer and local monitor have to
be connected to the projector. See 'Connecting a RGB Analog
source to port 3' for a list of BARCO interfaces which can be applied.
PORT 4/5
See installa tion ins tructio ns befor e conne cting to the sup ply.
Voir la notice d'installation avant de raccorder au réseau.
12 0/2 30 V
7/5 Amp
50/60 Hz 7 5 Ohm
POR T 2
7 5 Ohm
INP INP R G
B H V
INPUT
ANALOG INTERF. 120MHz ON
OFF
inver. 75 ohm term.
363
This device compli es with part 15 of the FCC rules. Operation is subject to following two conditions (1). This
device may not cause harmful inter-
ference, and (2) this device must accept any interf erence received including interference that may cause undesired operation"
RGB input selection :
(RGB : R, G, B signals with automatic sync detection)
with the RCU or the build in RCU : press digit
button 4 or 5
