Port Starboard

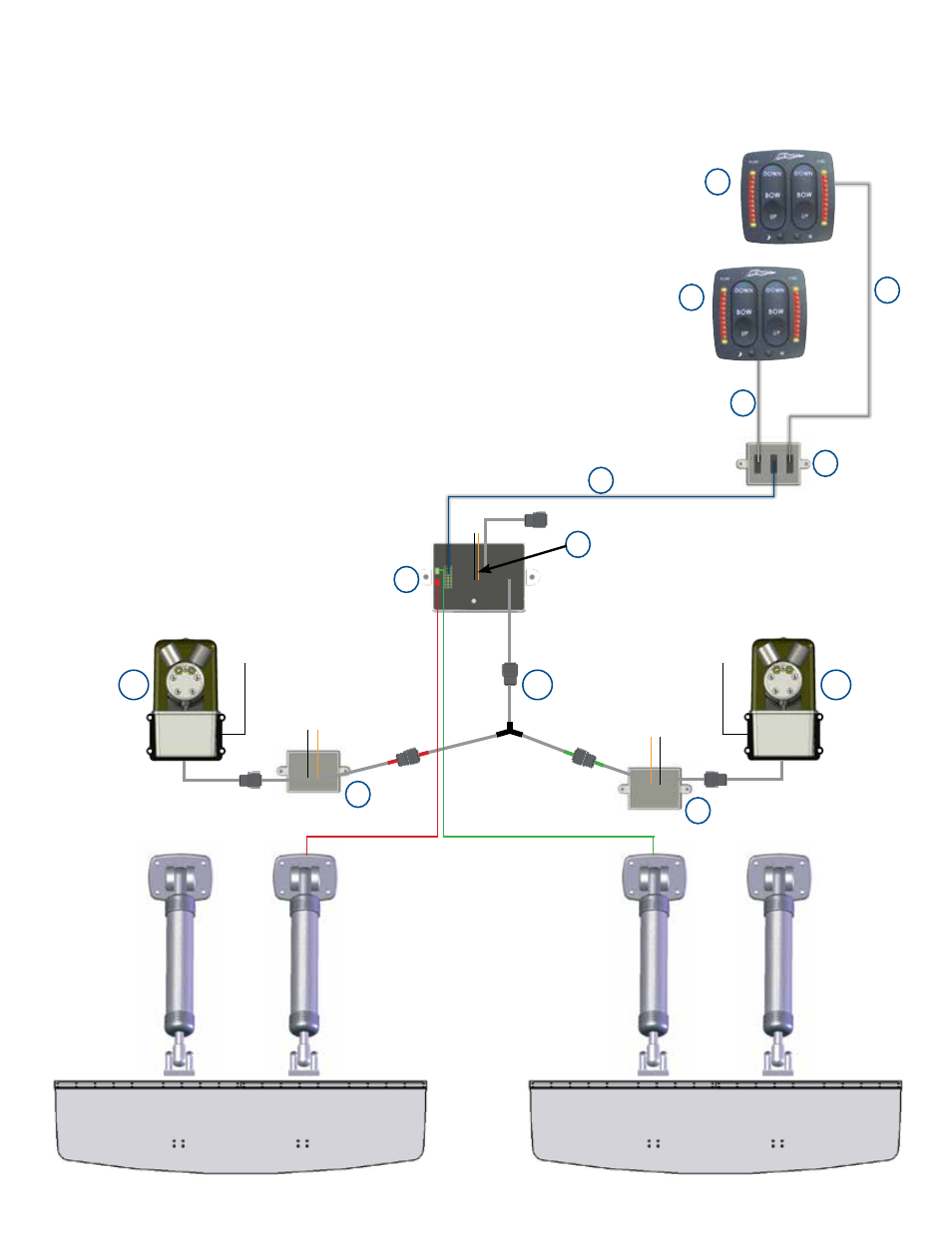

System Schematic and Parts List for Dual Acting, Dual Station,
Dual Actuator SST System with Electronic Indicator Control
Item # Description Part #
1 EIC Display (Upper or Lower Helm) EIC001
2 EIC Bridge Wire Harness (thin gray) EIC801
3 EIC Wire Harness (thick gray) EIC301
4 EIC Bridge Box EIC701
5 EIC Wire Harness (blue) EIC201
6 EIC Relay Module * EIC102
7 EIC Power Cables Attached to EIC101
8 Port Dual Acting Relay Module * RMPORTDA24
9 Starboard Dual Acting Relay Module * RMSTBDDA24
10 EIC Dual Pump Cable (Y-Harness) EICWH10101
11 Dual Acting Hydraulic Power Unit * DAHPU2
(-) Ground
+ -
+
-
+ -
1
1
Upper Helm
EIC Display
Lower Helm
EIC Display
2
3
4
8
5
6
* Parts also available for 12 Volt systems.
**
** Shorter cable shown on #6 EIC Relay Module
is for optional Auto Tab Control (AC3000).
If no Auto Tab Control is installed, this cable is
not used.
(Secondary)
(Primary)
Ground (-)
11
Stainless Steel
Actuators
Stainless Steel
Trim Tabs
7
9
10 11
Stainless Steel
Actuators
Contact [email protected]
for parts and pricing.
