Bennett Marine Auto Tab Control - Manual (Page 12)

Description Part #
1 ATC Keypad AC3250
2 ATC 6' Keypad Cable AC32506
3 ATC Control Unit AC3400
4 ATC Power Pigtail AC3121
5 Pigtail for Wire Harness PT109
6 ATC 4-Color 6' Wire Harness WH3006
7 Relay Module - 12 or 24 Volt RM12 (or RM24)
8 ATC Hardware Bag AC3200

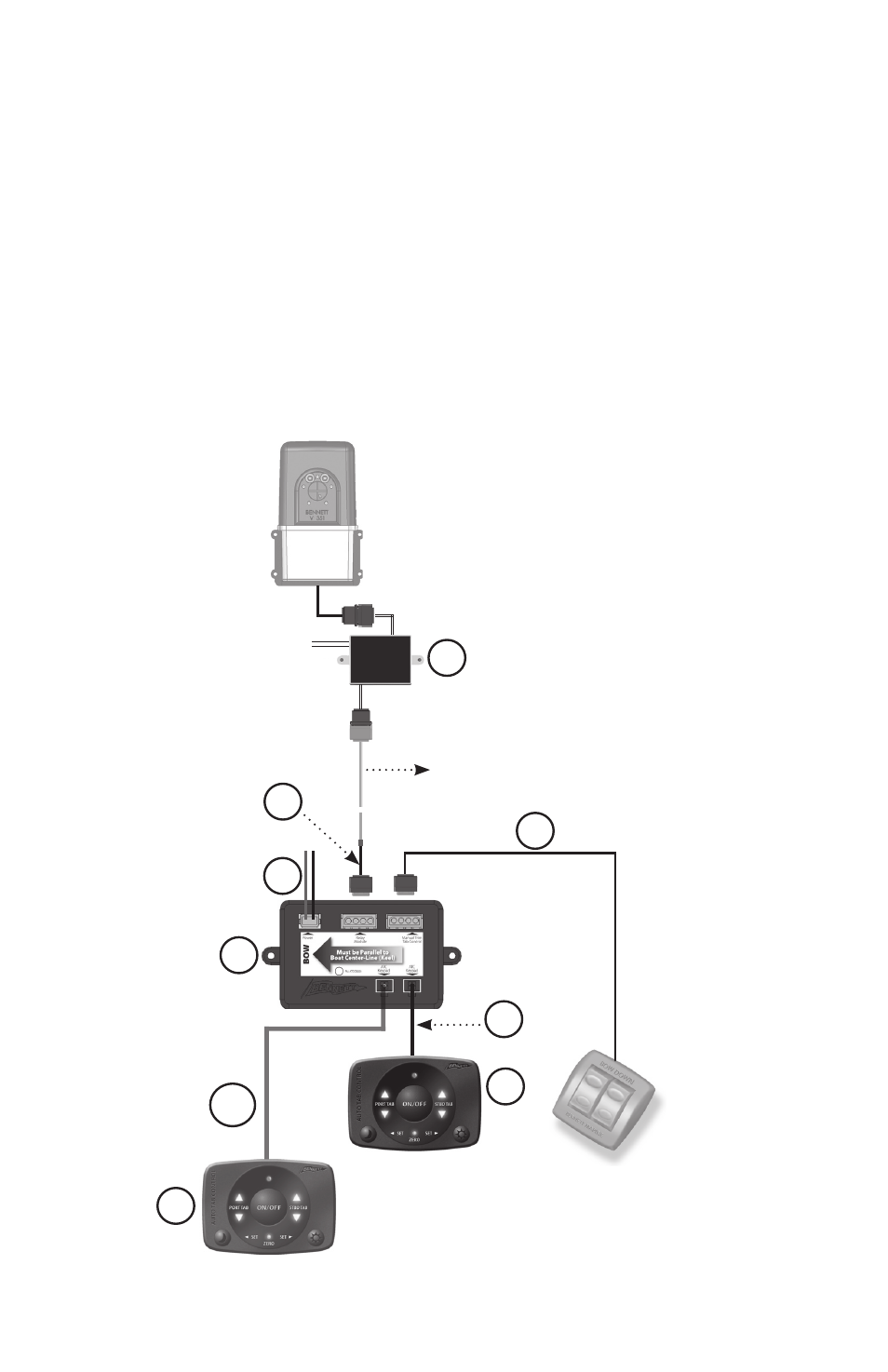

System Schematic and Parts List for
Non-Electronic Trim Tab Controls
Wire Harness
(Existing)
Control
(Existing)
Hydraulic
Power Unit
(Existing)
7
6
5
Optional Upper Station
Description Part #
9 ATC Keypad AC3250
10 ATC 22' Keypad Cable AC325022
11 ATC Hardware Bridge AC3225
≈
1
2
3
4
Optional Upper Station
9
10
12
(not shown)
(not shown)
+ -
+-
