General Information
41
Appendix 3 continued

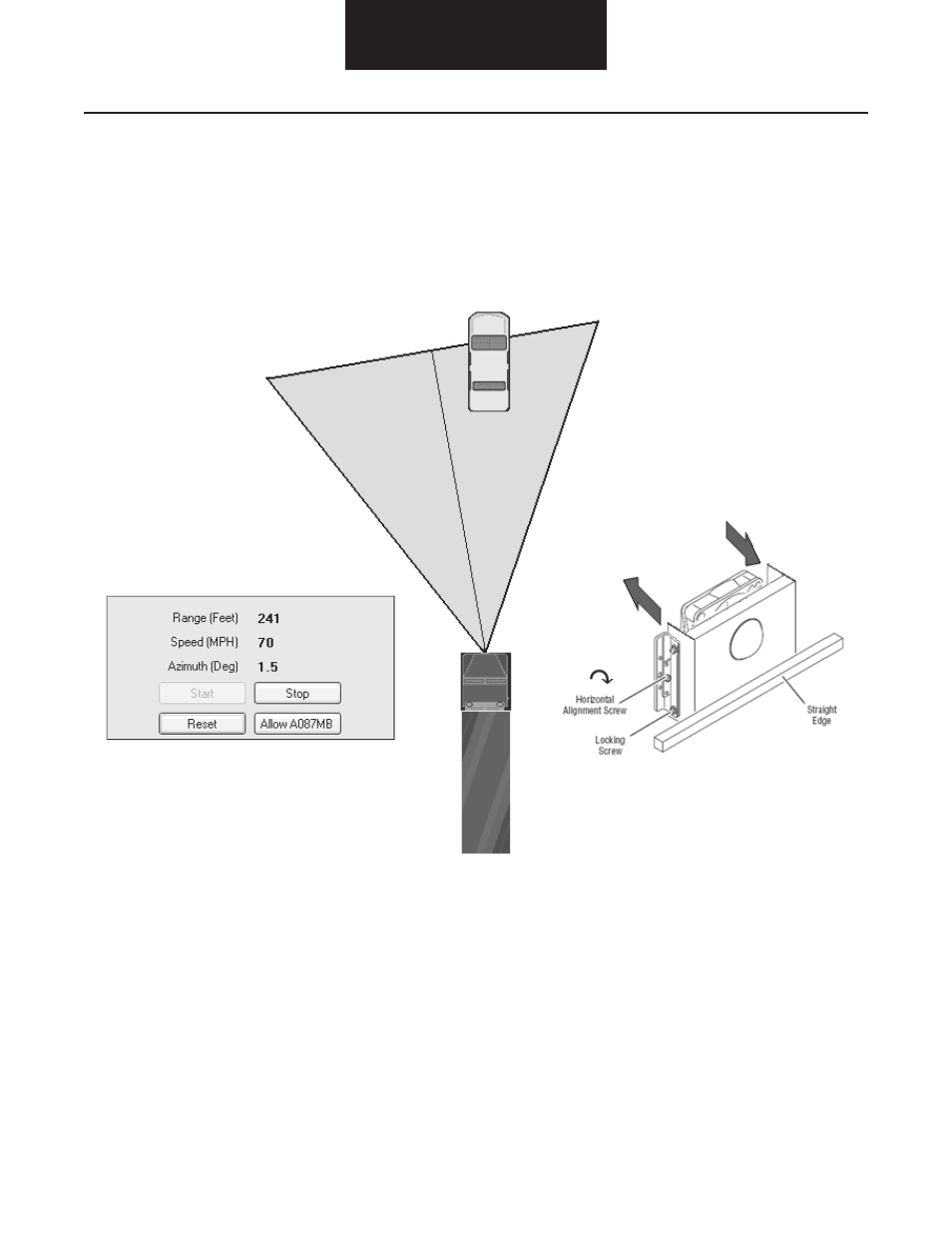

Negative Azimuth Adjustment (FLR too far to the left)
If the alignment function shows a positive value, then the FLR is adjusted too far to the left, when looked at from the driver's seat . The radar
needs to be adjusted to the driver's right . To accommodate this, adjust the horizontal alignment screw by turning it in a clockwise direction,
when viewed from the front of the vehicle. Each full rotation of the alignment screw adjusts for approximately 0.2° of azimuth position from
the alignment function. For example, if the azimuth position was 0.5°, then the alignment screw should be adjusted 2
1 /
2
turns clockwise .
After adjustment of the FLR, perform the calibration procedure again to verify proper alignment .
