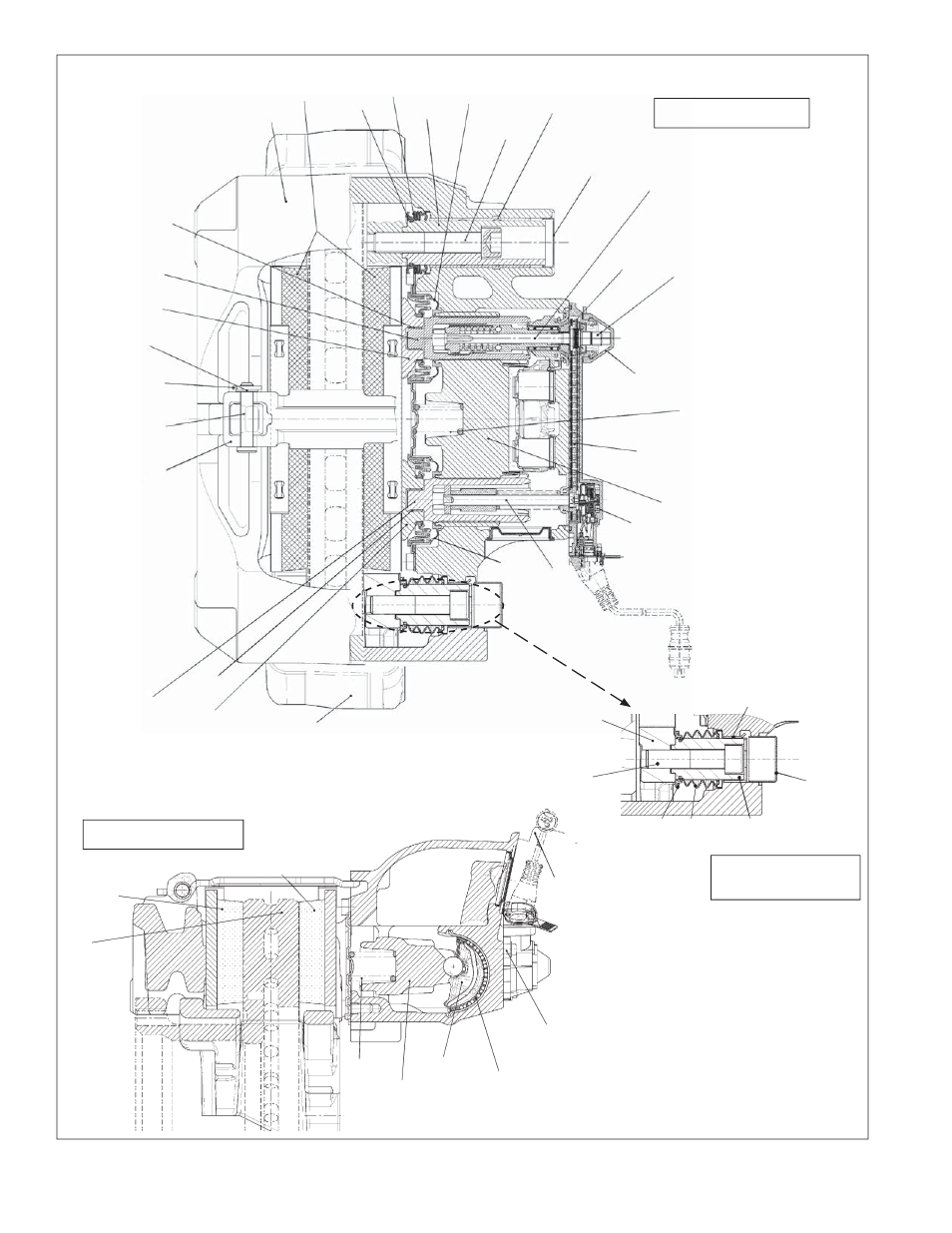

FIGURE 7 - SECTIONAL VIEWS
19
Lever
20
Eccentric
Bearing
43
Bolt
17
Bridge
27
Spring
2
Carrier
24
Turning
Device
33
Wear Sensor
22
Inner
Seal
16
Threaded Tube
161
Tappet
13
Tappet and
Boot Assembly
18/1 Spring Brake or
18/2
Brake Chamber
46
Rotor
Pad Assembly 12
12
Pad
Assembly
6 Guide Sleeve
2
Carrier
4
Guide Pin
9
Inner
Boot
58
Ring
39
Caliper Bolt
68
Cap
Bushing
1
Caliper
5
Guide Pin
13
Tappet and Boot
Assembly
23
Adjuster Unit
26
Spring Clip
27 Spring
7
Brass Bushing
9
Inner Boot
10
Cap
12
Pad
Assembly
16
Threaded Tube
22
Inner Seal
32
Chain Wheel
161
Tappet Bushing
61
Shear Adapter
58
Ring
45 Washer
40
Caliper Bolt
Top Sectional View
Short Caliper Bolt
Sectional View
Side Sectional View
17
Bridge
11
Pad Retainer
30
Chain
44
Pad Retainer Pin
37
Adjuster Cap
