Bendix Commercial Vehicle Systems ADB22X-V Air Disc Brakes - Manual (Page 16)

16
18/2
Service
Actuator
Actuator
Hardware
18/1 Spring Brake
Actuator
68
Cap
39 Caliper Bolt
6 Guide Sleeve
5
Guide
Pin
61
Shear
Adapter
1
Caliper
13 Tappet
and Boot
Assembly
26 Spring Clip
11 Pad Retainer
(Pad Assembly
consists of
12/1 plus 12/2)
12/1 Pad
12/2 Pad Holder Spring
45
Washer
44
Pad Retainer Pin
2A
Bendix ®
ADB22X ™
Carrier
2B
Bendix ®
ADB22X-V ™
Carrier
7
Brass
Bushing
10
Cap
161
Tappet Bushing
40
Caliper
Bolt
22
Inner Seal
(Rotor Shield for Trailers)
4 Guide Pin
9
Inner Boot 58
Ring
See Section 5.2 for
exploded view of electronic
wear indicator.
*37 Adjuster
Caps (2 styles
supplied in kits)
SD-1
SD-2
SD-3
Splined Disc ® Rotor
Hardware
SD-1, -2, -3
Splined Disc ® Rotor
(SD)
U-shaped Rotor
Steer Hub
Drive Hub
U-shaped
Rotor
Fasteners
(or Caliper Kit)
Bendix ® ADB22X ™
Anchor Plate
Carrier
Mounting
Hardware
Bendix ®
ADB22X-V ™
Anchor Plate
37*
Carrier
Mounting
Hardware
(Wheel turns toward
fi xed pin side of
ADB)
(Fixed pin)
Type A
Wheel Rotation
(typically right hand)
Type B
Wheel Rotation
(typically left hand)
Shield
Kit
(Drive or
Steer)
SECTION FIVE: MAINTENANCE KITS AND PROCEDURES
Section Five
Section Page
5.0 Maintenance Kits . . . . . . . 16-18
5.1 Air Disc Brake Shield Kit . . . . . 19
5.2 Pad Replacement . . . . . . . 20
5.3 Caliper/Carrier/Actuator Assembly . 22-23
Section Page
5.4 Spring/Service Brake. . . . . . . 24
5.5 Tappet & Boot, and Tappet Inner Seal 25-28
5.6 Guide Pin and Boot Assemblies . . 29-34
5.7 Bendix ® Splined Disc ® Hub Rotor . . 35-37

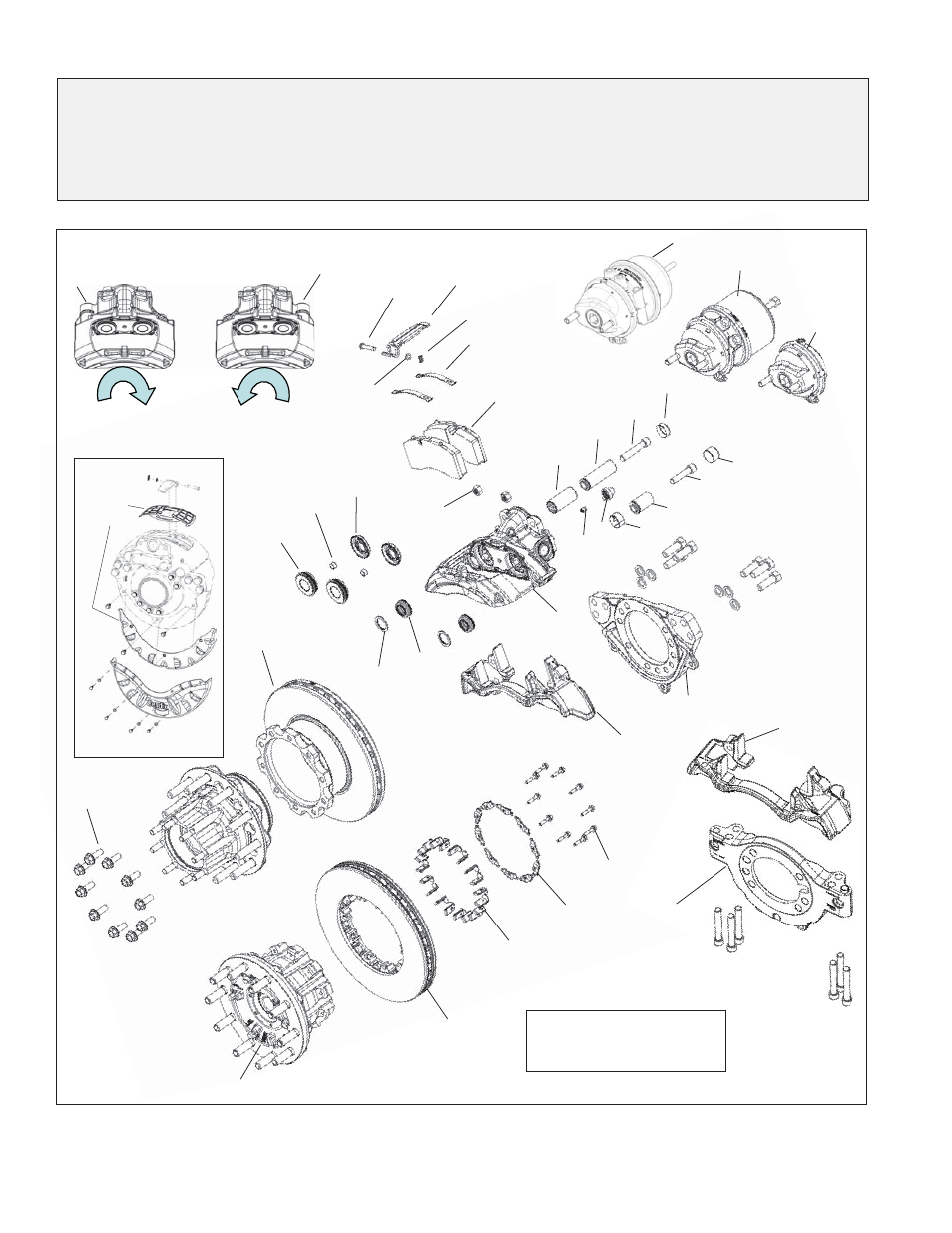

FIGURE 30 - EXPLODED VIEW - BENDIX ® ADB22X ™ AND ADB22X-V ™ AIR DISC BRAKES
35
