PRODUCT REVISION / FEATURE INTRODUCTION
Chart 13 designates the revision level of EC-30T
™
controller hardware, software and features, at the time it was manufactured.
If your EC-30T
™
controller has a revision level prior to a specifi c feature introduction, it may not contain that feature. The
EC-30T
™
controller can be upgraded with newer versions of software to include additional features. Newer software
is downloaded into the EC-30T
™
controller using the Bendix ABS Diagnostic Software. In cases where an EC-30T
™
controller has previously been upgraded with newer software, the software and hardware revisions may not match chart
13. For more information, contact Bendix or refer to your local authorized Bendix dealer.
CHART 13 - PRODUCT REVISION / FEATURE INTRODUCTION

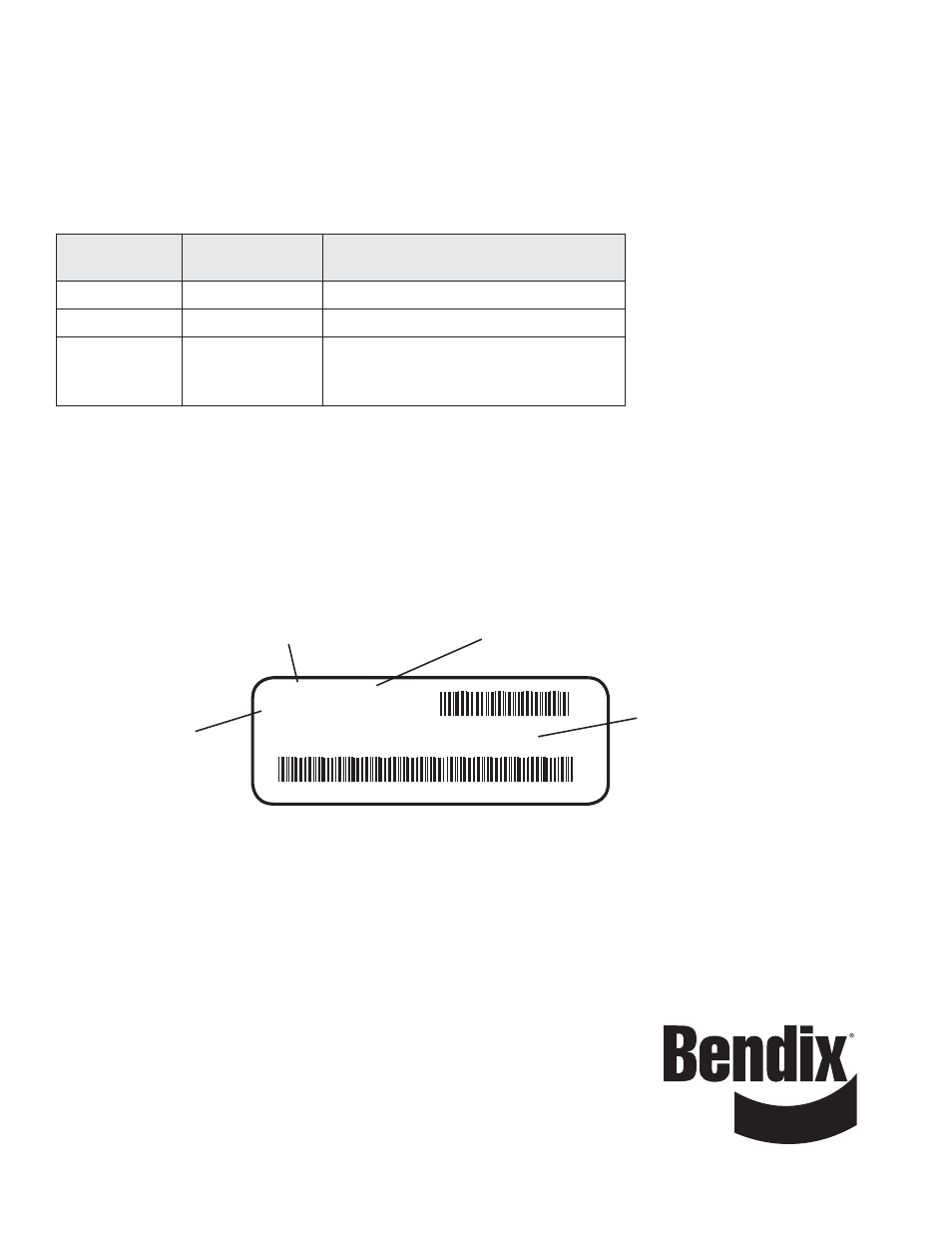

FIGURE 20 - ECU PART NUMBER LABEL
*756902350442*
*G002869*
P/N: 5004358-R04
SERIAL: G002869
REF: 12207569
EC-30T CAPABLE OF: 4S2M, 2S2M, 2S1M, J1587, PLC
ONE OR MORE U.S. PATENTS APPLY: 4837552
ECU Part Number
Serial Number
Hardware Revision Number
Hardware Capabilities
ECU Part Number Label
The label shown in Figure 20 is located on the side of the EC-30T
™
ABS controller ECU. The ECU part number, hardware
revision number, serial number and hardware capabilities can be found on this label. The complete MC-30
™
controller
assembly part number is designated with a separate label. If the part number label is not readable or is painted over,
the ECU part number and revision can be read using a diagnostic tool.
Software Revision Level
The software revision number can be read using a diagnostic tool.
Document Revision Level
Please visit Bendix.com to ensure you have the latest version of this document.
ECU Hardware
Software
Feature Introduction
Revision
Revision
R02
BW-363-CD R02 Initial Production Release
R03
BW-363-CD R03 No Features Added
R04 BW-363-CD
R04
Self-Confi guration
Odometer
Calibration of Non-Standard Wheel Sizes
