4s/2m - axle control, 4s/2m - side control, Controller system applications (2 of 2) – Bendix Commercial Vehicle Systems MC-30 TRAILER ABS CONTROLLER User Manual
Page 22: Dual axle trailer, Dual spread axle trailer
22

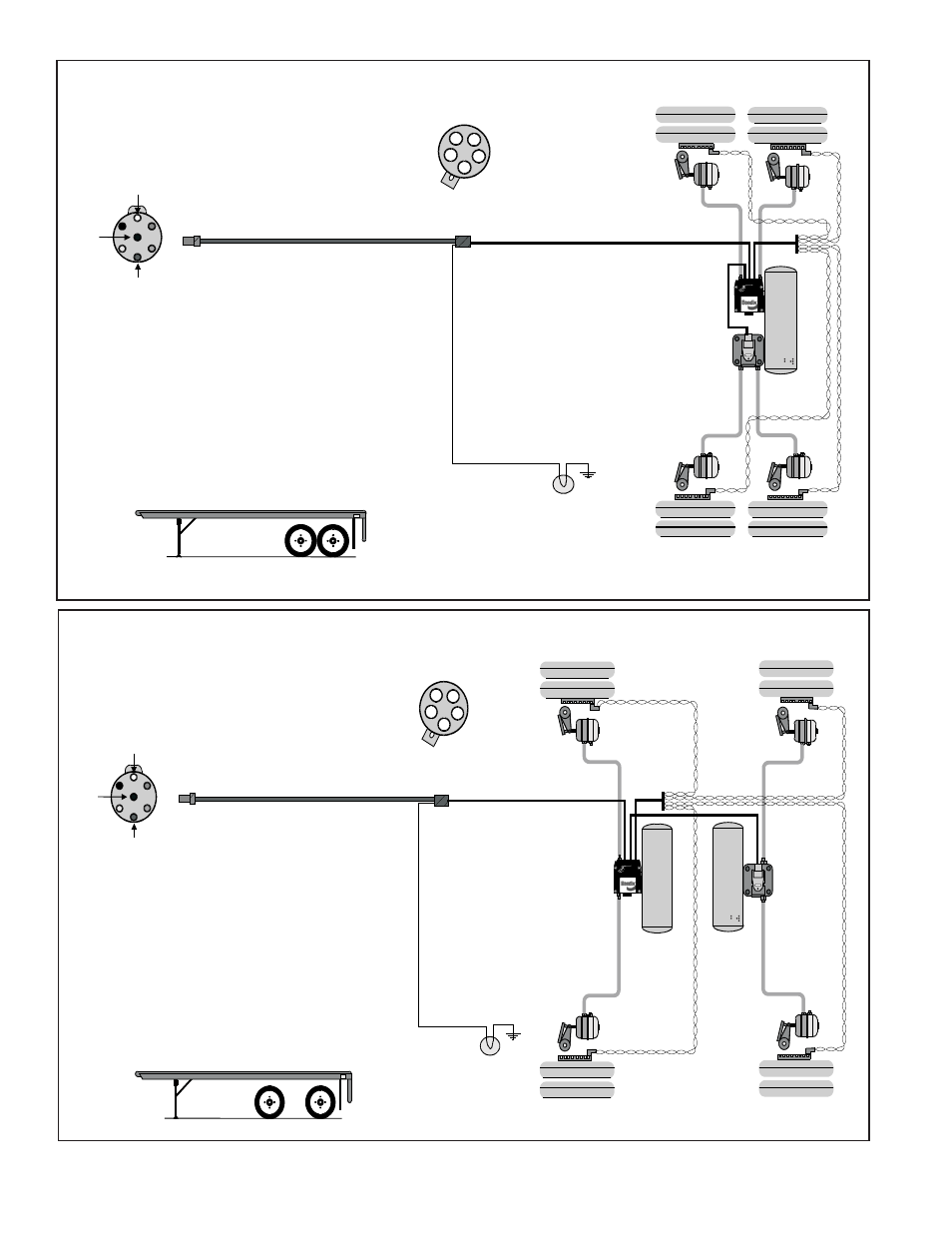

FIGURE 17 - MC-30
™
CONTROLLER SYSTEM APPLICATIONS (2 OF 2)
4S/2M - SIDE CONTROL
Trailer Chassis Harness
NOTE:
For side control, MOD1 must
control the right side.
ABS Light
Left Front
WS Sensor
Right Front
WS Sensor
Right Rear
WS Sensor
Left Rear
WS Sensor
MC-30
MOD1
MOD2
Pigtail Harness
AntiLock
Ignition
Power
Brake Light
Power
Ground
7-Pin
Connector
5-Pin
Connector
A
Brake Light Power
B
Ignition Power
C
NC
D
Warning Lamp
E
Ground
C
E
B
A
D
ABS
Dual Axle Trailer
4S/2M - AXLE CONTROL
Trailer Chassis Harness
MOD2
NOTE:
For axle control, MOD1
must control the front axle.
ABS Light
5-Pin
Connector
A
Brake Light Power
B
Ignition Power
C
NC
D
Warning Lamp
E
Ground
C
E
B
A
D
Ignition
Power
Brake Light
Power
Ground
7-Pin
Connector
ABS
Dual Spread Axle Trailer
Left Front
WS Sensor
Right Front
WS Sensor
Right Rear
WS Sensor
Left Rear
WS Sensor
MC-30
MOD1
Pigtail Harness
AntiLock
