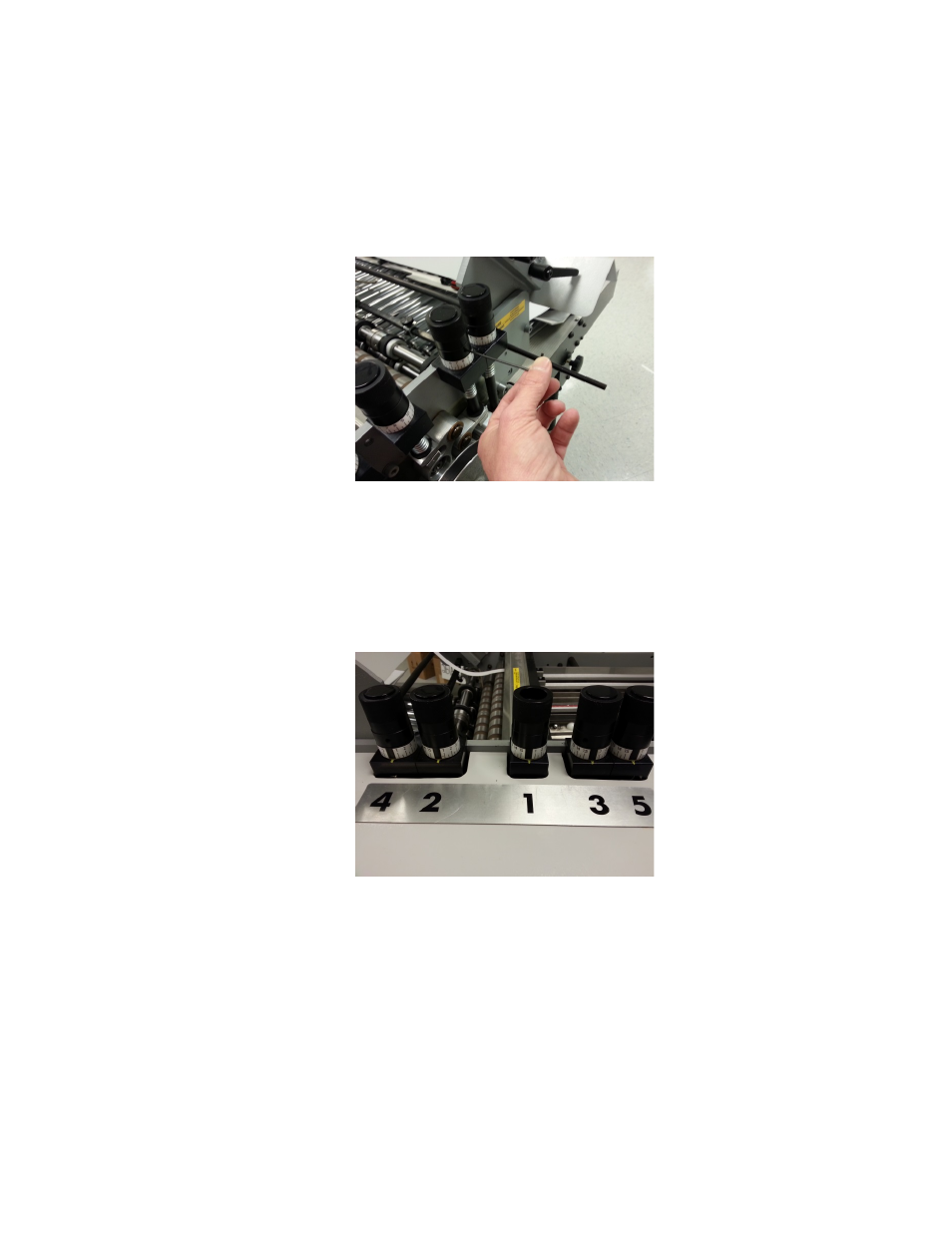

6. On
all
gapset
knobs,
using
a
2mm
allen
wrench,
tighten
the
set
screws
that
hold
the
plastic
binder
plug
so
that
the
binder
plug
applies
pressure
to
the
gapset
threaded
rod.
Tighten
this
set
screw
so
that
the
plastic
binder
plug
is
actually
“compressed”
on
the
threads
of
the
gapset
rod
threads.
This
step
will
ensure
that
the
gapset
knob
does
not
turn
as
the
rolls
open
and
close
as
the
sheets
are
passing
through
the
fold
roll
bank.
7. Each
gapset
indicator
dial
has
a
label
with
indication
of
settings
from
1
–
15,
with
an
open
area
in
which
the
label
does
not
wrap
around
the
entire
ring.
Turn
all
of
the
gapset
knob
counter-­‐
clockwise
until
the
gapset
indicates
halfway
in
between
the
1
&
15
indicators.
Do
not
just
turn
the
dial
indicator
ring,
only
turn
the
gapset
knobs!
