Baumfolder BAUM1620 Gapset Calibration - Manual (Page 5)

5
During
calibration
of
the
fold
roll
pressure
settings,
it
is
critical
to
ensure
that
the
amount
of
drag
on
both
the
operator
and
non-­‐operator
sides
is
the
same!
d) Repeat
steps
3
&
4
by
adjust
the
proper
gapset
knobs
for:
#2
fold
roll
to
main
fold
roll(strips
of
paper
in
between
the
#2
and
main
fold
rolls
&
adjusting
the
#2
gapset
knobs),
then
#3
fold
roll
to
#2
fold
roll(strips
of
paper
in
between
the
#3
and
#2
fold
rolls
&
adjusting
the
#3
gapset
knobs),
then
#4
fold
roll
to
#3
fold
roll(strips
of
paper
in
between
the
#4
and
#3
fold
rolls
&
adjusting
the
#4
gapset
knobs),
then
#5
fold
roll
to
#4
fold
roll(strips
of
paper
in
between
the
#5
and
#4
fold
rolls
&
adjusting
the
#5
gapset
knobs.

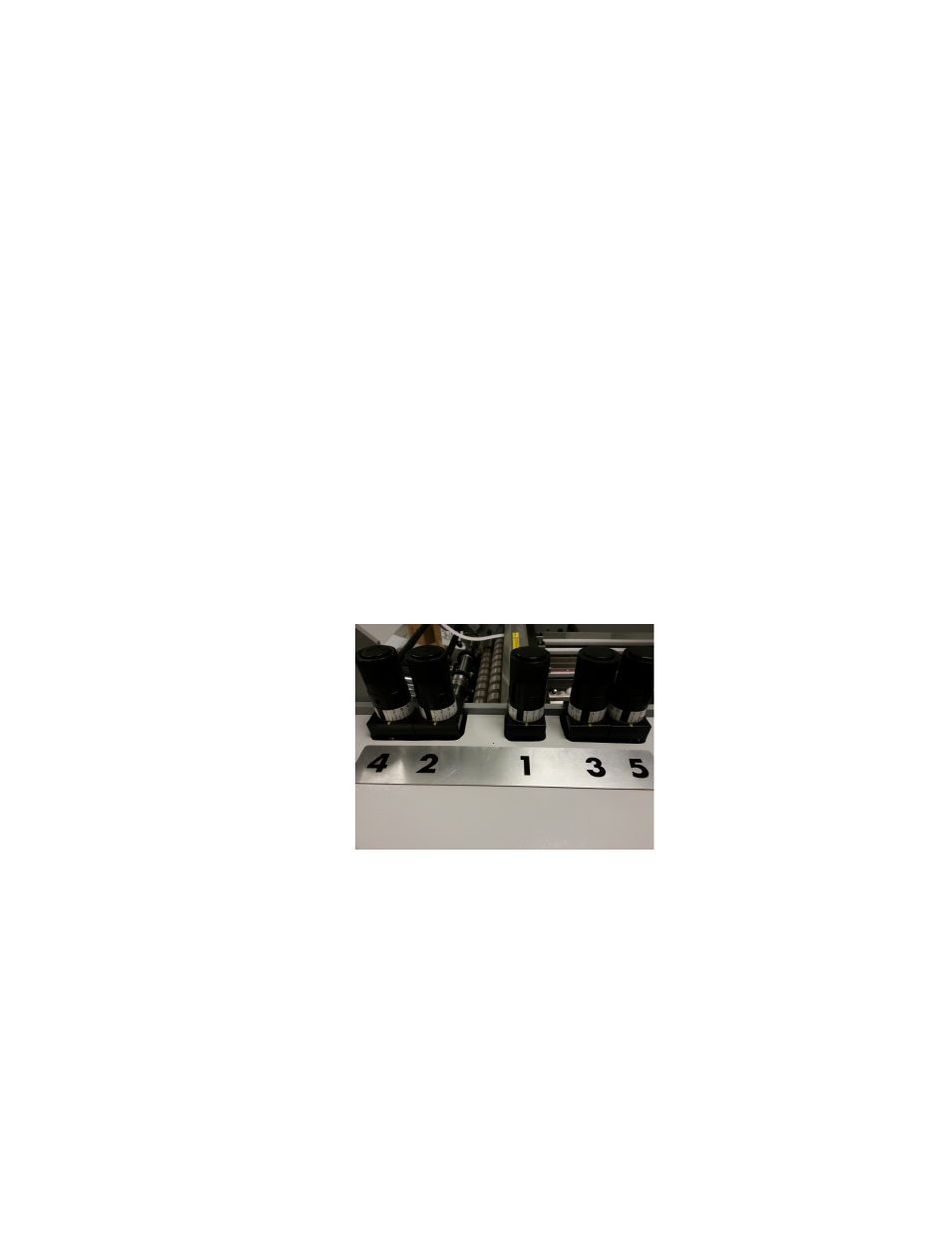

5. Now
that
all
of
the
fold
roll
pressures
have
been
set
properly,
while
holding
each
gapset
knob
so
that
it
does
not
move(if
the
gapset
knob
turns,
the
fold
roll
pressures
will
change),
turn
each
gapset
indicator
dial
so
that
each
dial
is
set
at
1.
