>> Set up the loudspeaker – wall bracket

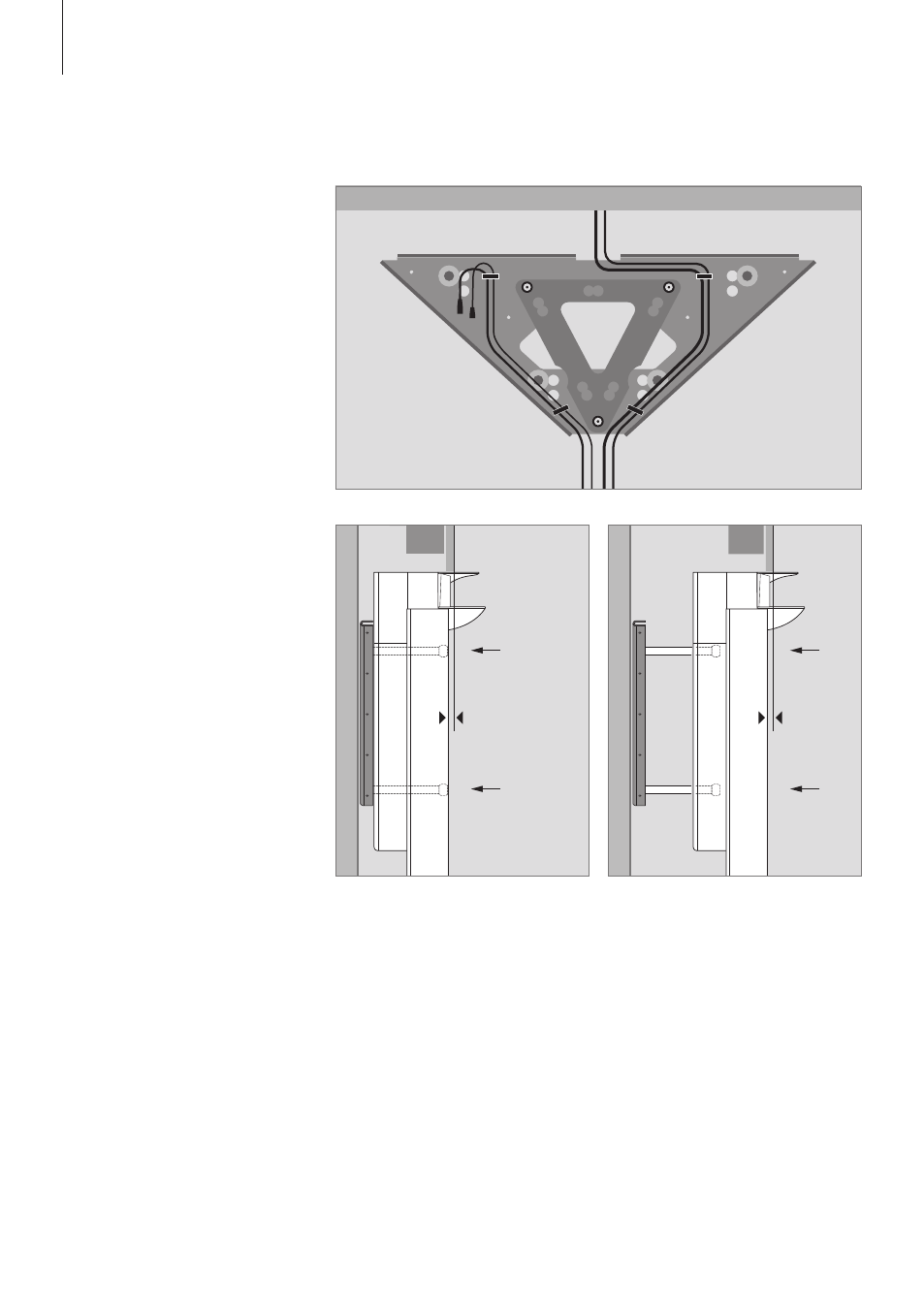

To fasten the loudspeaker
Attach the television screen and
loudspeaker cables to the wall
bracket before you fasten the loud
speaker. Use the small cable
clamps provided.
– Connect the cables to the loud
speaker and hang it on the wall
bracket by inserting the three
struts into the corresponding
holes in the loudspeaker cabinet.
– Adjust the loudspeaker position
on the wall bracket. The correct
position is obtained when the
front of the loud¬speaker
cabinet falls 13 mm (0.51")
‘behind’ the front of the
television screen.
– Tighten the screws at the end of
all three struts – in order to lock
the loudspeaker position onto
the wall bracket.
13 mm
0.51"
13 mm
0.51"
Loudspeaker position: The wall bracket allows you to adjust the loud
speaker fronttoback position for use with different television screen
sizes. For safety reasons, it is important that you lock the loudspeaker
onto the wall bracket!
