Dimensions and weights, Air and electric defrost models – Bally Refrigerated Boxes BC Air, Electric, and Hot Gas Defrost Blast Coolers User Manual
Page 7
MODEL
HEIGHT
HANGERS
REFRIGERANT
CONNECTIONS (1)
UNIT WEIGHT
Inches
mm
A
B
C
LIQUID
SUCTION
Lb.
kg
Inches
mm
Inches
mm
Inches
mm
R-12, R-22,
R-502
R-12, R-22,
R-502
BC 085
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
900
408
BC 100
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1000
454
BC 115
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1100
499
BC 125
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1200
544
BC 140
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1300
590
BC 160
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1400
635
BC 180
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1500
680
BC 064
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1030
467
BC 077
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1100
499
BC 089
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1200
544
BC 101
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1300
590
BC 110
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1425
646
BC 126
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1550
703
BC 143
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1650
748
BC 059
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1030
467
BC 072
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1100
499
BC 085
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1200
544
BC 097
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1300
590
BC 103
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1425
646
BC 120
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1550
703
BC 138
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1650
748
BC 053
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1030
467
BC 066
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1100
499
BC 078
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1200
544
BC 091
38
965
60 1/16
1526
8 1/16
205
8 3/16
208
1 3/8
2 1/8
1300
590
BC 094
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1425
646
BC 112
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1550
703
BC 129
50
1270
40 1/16
1018
8 5/32
207
8 5/32
207
1 3/8
2 1/8
1650
748
AIR AND ELECTRIC DEFROST MODELS

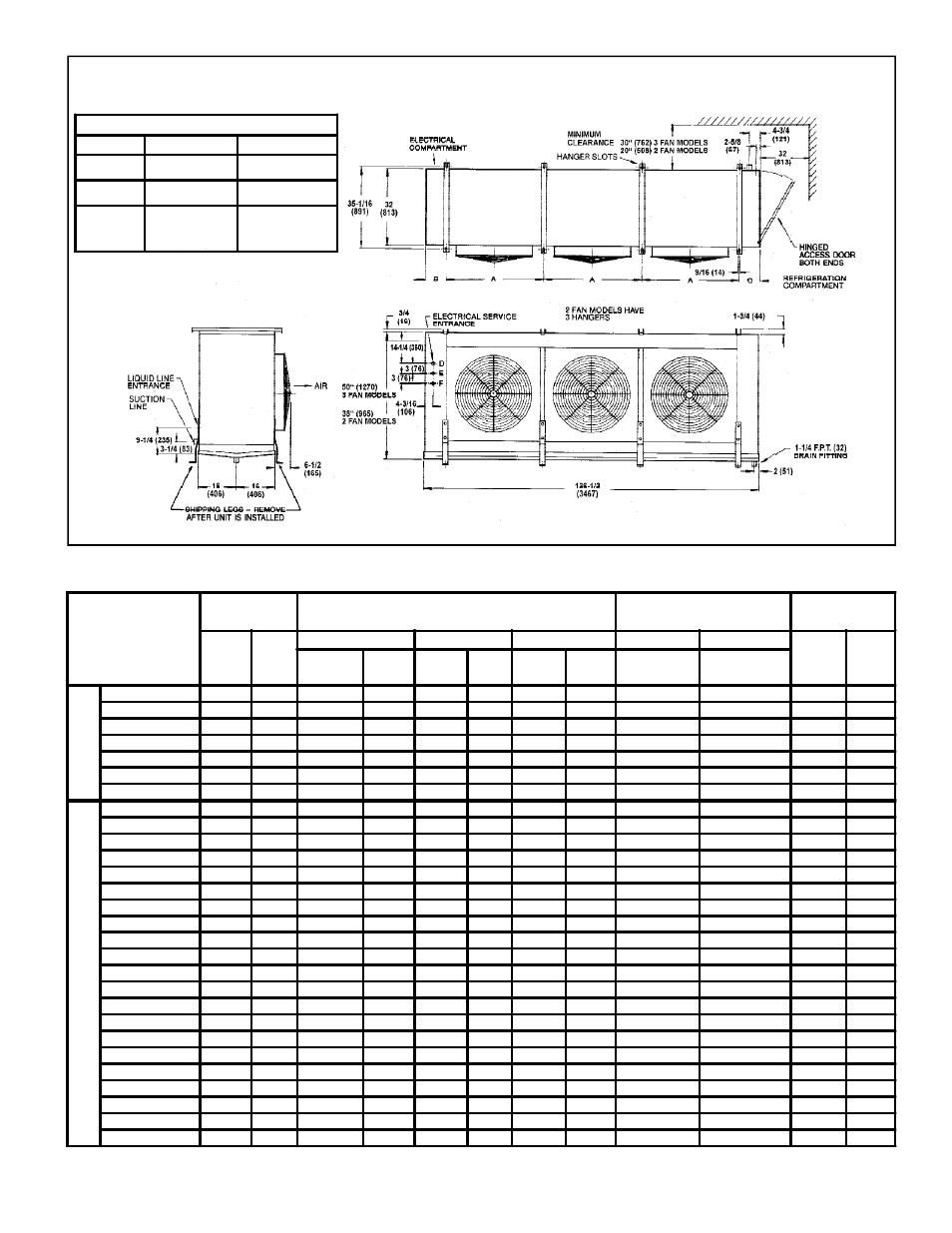

DIMENSIONS AND WEIGHTS
E L E C T R I C A L S E R V I C E E N T R A N C E K N O C K O U T S
2 F A N M O D E L S
3 F A N M O D E L S
M o t o r s - D
7 / 8 : D i a .
2 2 m m
7 / 8 " & 1 - 3 / 3 2 " D i a .
2 2 m m & 2 8 m m
C o n t r o l s - E
7 / 8 " D i a .
2 2 m m
7 / 8 " D i a .
2 2 m m
H e a t e r s - F
1 - 3 / 3 2 " , 1 - 2 3 / 6 4 "
& 1 - 2 3 / 3 2 " D i a
2 2 m m , 3 5 m m &
4 4 m m
1 - 3 / 3 2 " , 1 - 2 3 / 6 4 "
& 1 2 3 / 3 2 " D i a .
2 2 m m , 3 5 m m &
4 4 m m
(1) O.D. in inches
ELECTRIC DEFROST MODELS
AIR DEFROST
- 7 -
