QCCX page 4

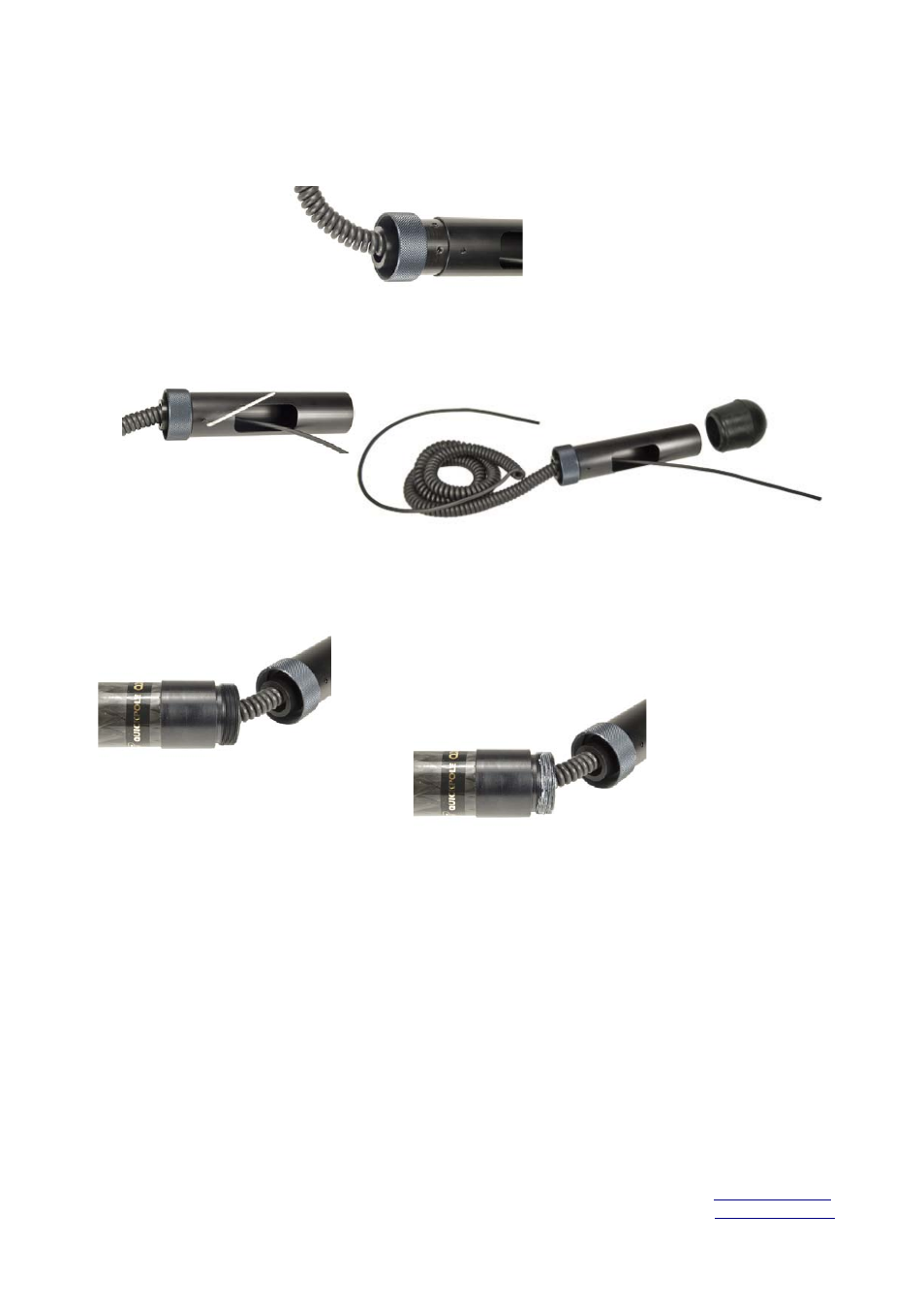

- Insert the assembly into the aluminium tube, so that the grub-screw 2 is right under the little hole
in the aluminum tube.
The cable should come out the side of the tube.
- Turn the grub-screw 2 counterclockwise so it pushes against the tube
and fixes the POM-part.
- Put the rubber-bumper
on to the aluminum tube
and start „Fitting the coiled cable“
Page 2...
- Insert the end of the POM shell into the bottom of the boom-pole and tighten the ring nut.
- Use some grease on the thread
Mounting a straight cable:
- Slide the ring nut ring on to the POM-shell.
- Pull the cable through metal tube and POM-shell.
- Follow instructions as above, mounting the coiled cable.
- Screw the grub-screws into the two holes so that the head doesn’t protrude.
- Insert the assembly into the aluminum tube, so that the grub-screw 2 is right under
the little hole in the aluminium tube.
- Turn the grub-screw 2 counterclockwise so it pushes against the tube and fixes the
POM-part.
- Put the rubber-bumper onto the aluminum tube.
- Insert the end of the POM shell into the bottom of the boom-pole and tighten the ring nut.
- Follow instructions as for fitting the coiled cable to the tip of boom, about 40 cm cable
should be free to go into the windshield (or as appropriate it working with a QAT,
Cinela suspension, or Connbox.
