QCCX page 2

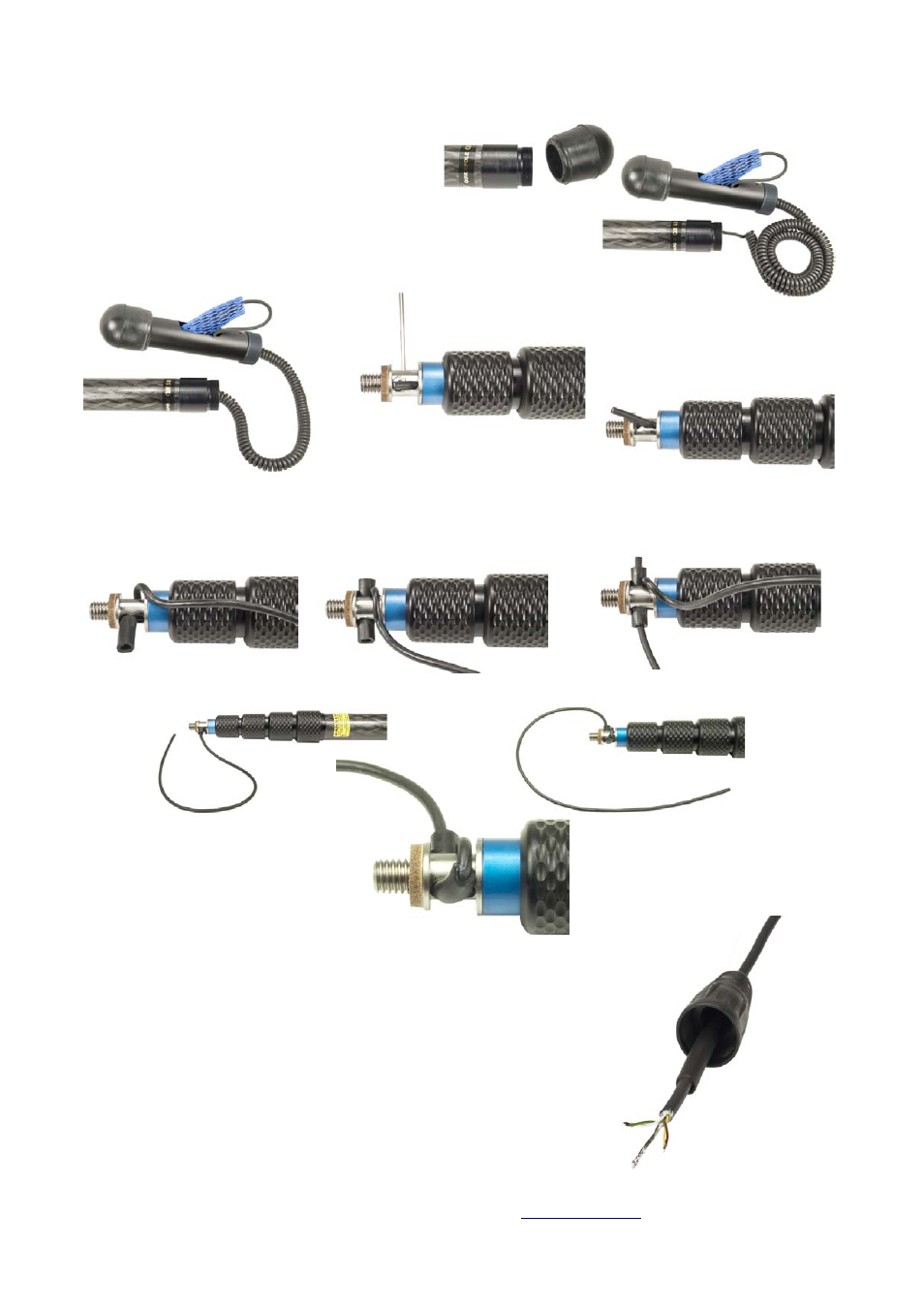

Fitting the coiled cable:
- Remove the rubber foot at the bottom end.
- Remove the rubber sleeve from the top end of the cable.
- Thread the spiral cable through the thin segment until
the cable is visible in the tip slot.
- Push out the cable end with the allen key and pull out the cable till
the first half turn of the spiral is outside the tip.
- Insert the rubber sleeve into the tip slot.
- Push the cable through the sleeve till it is tight. (use some soap to help slip)
Note:
Cable must wrap round ½ turn. See picture.
Solder the female XLR to the cable. Use heatshrink
to build up cable diameter for strain relief.
Plug wiring Mono XLR-3F:
1 = shield / ground, and bridged to plug housing
2 = yellow and brown/Audio+
3 = green and white / Audio –
