Ambient QCSX Boom Pole Cabling - Manual (Page 3)

QCCX page 3
Plug wiring Stereo XLR-5F:
1 = shield / ground, and bridged to plug housing,
2 = brown /Audio left +
3 = green/ Audio left –
4 = yellow/ Audio right +
5 = white / Audio right –

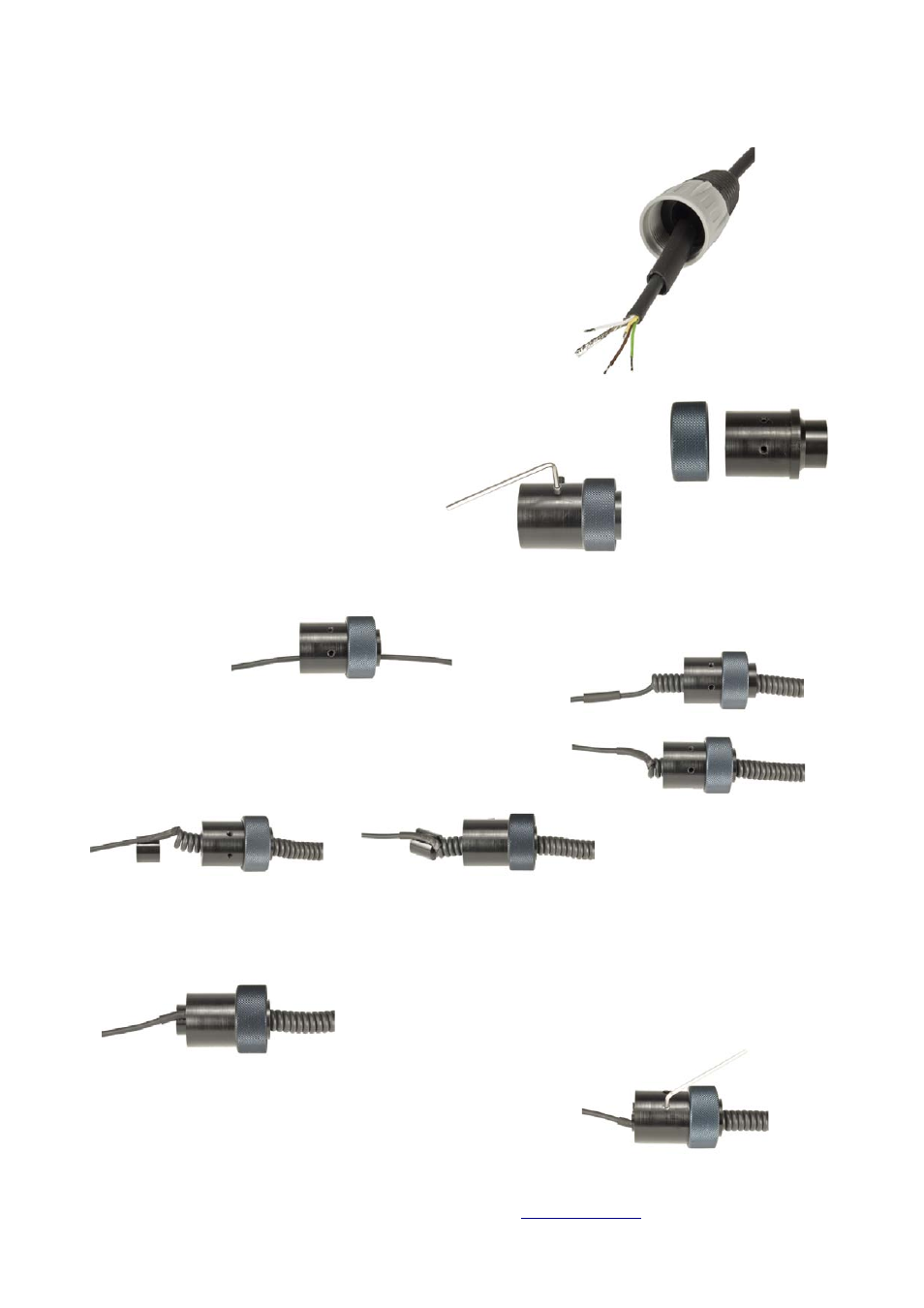

Mounting a coiled cable to the QXEST endpiece:
- Slide the ring nut ring on to the POM-shell.
- Screw the grub-screws into the two holes
so that the heads do not protrude.
- Push the short straight end of the coiled cable through the shell.
- Press the cable into the slit of the POM strain relief.
Make up for the cable diameter using heatshrink.
The opposite broad groove is for square/parallel cables.
- Pull the strain relief back into the POM-shell and push it in to the end. The position of
the grub-screws should be right next to the cable-groove, but must not hit the cable.
- Tighten one grub screw to fix the strain relief in the shell.
Ambient Recording GmbH www.ambient.de
