AJA HD10AMA - Manual (Page 5)

HD10AMA Mini-Converter v1.0r2 www.aja.com 5

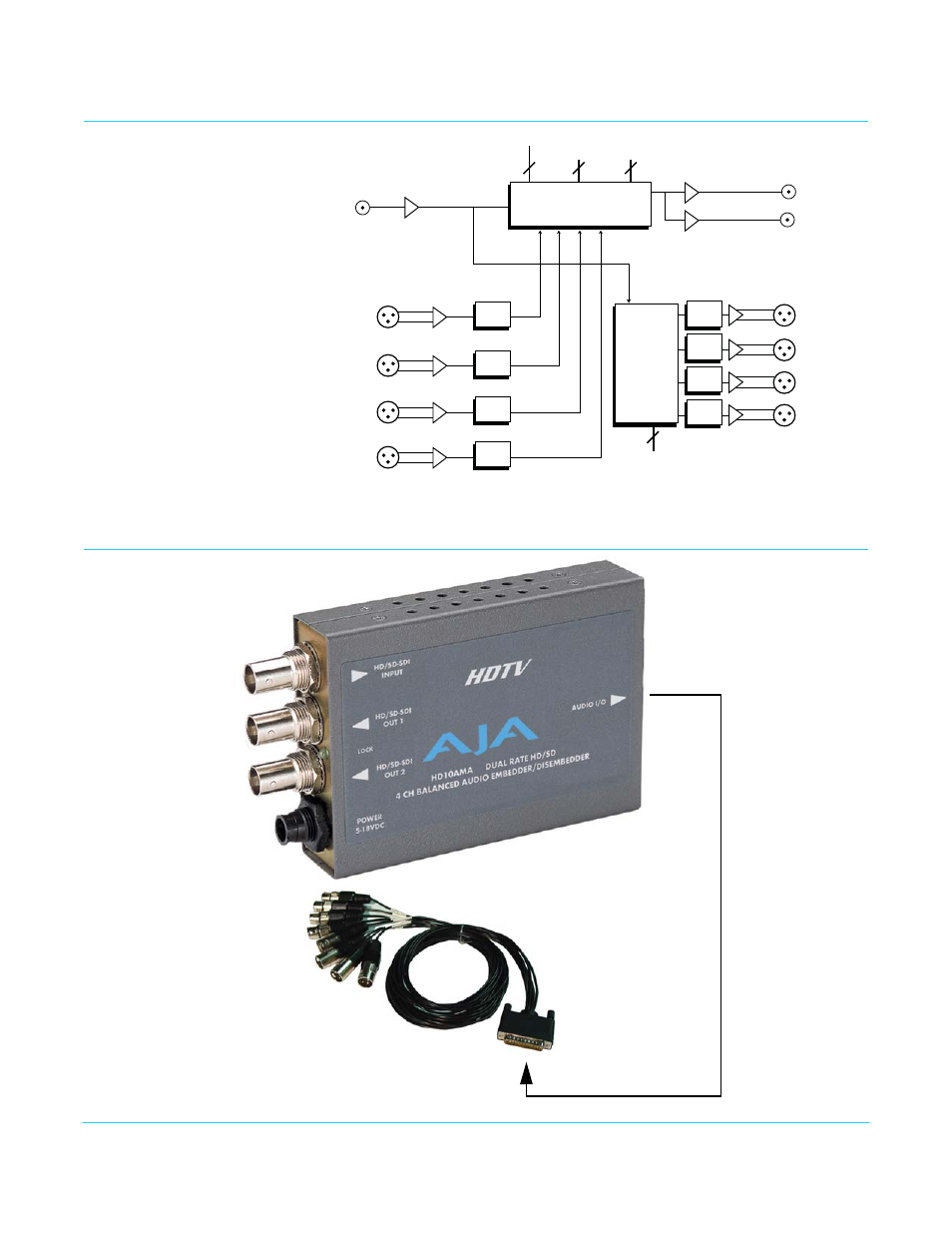

HD10AMA Simplified Block Diagram
HD10AMA I/O Connections
EQ
Cable Driver
Cable Driver
Embed 1/2, 3/4
Embed and Pass-through
Packet Processor
Embed to
Group 1,2,3,4
Aux
Jumper
Analog Input 1
(Ch 1)
XLR Breakout Cable XLR Breakout Cable
HD-SDI Out 1
HD-SDI In
HD-SDI Out 2
Analog Input 2
(Ch 2)
Analog Input 3
(Ch 3)
Analog Input 4
(Ch 4)
Analog Output 1
(Ch 1)
Analog Output 2
(Ch 2)
Analog Output 3
(Ch 3)
Analog Output 4
(Ch 4)
Dis-
Embedder
Disembed
from Group
1,2,3,4
DAC
DAC
DAC
DAC
ADC
ADC
ADC
ADC
Configuration
Determined by
DIP switch on
other side of
Converter
Analog I/O
+ 5 VDC
Power
Input
HD/SD-SDI Input
HD/SD-SDI
HD/SD-SDI
Output 1
Output 2
BNC
BNC
BNC
D-connector
(attaches to
supplied cable)
Cable
Not Shown
To Scale
