Ki Pro v3.2 www.aja.com 30

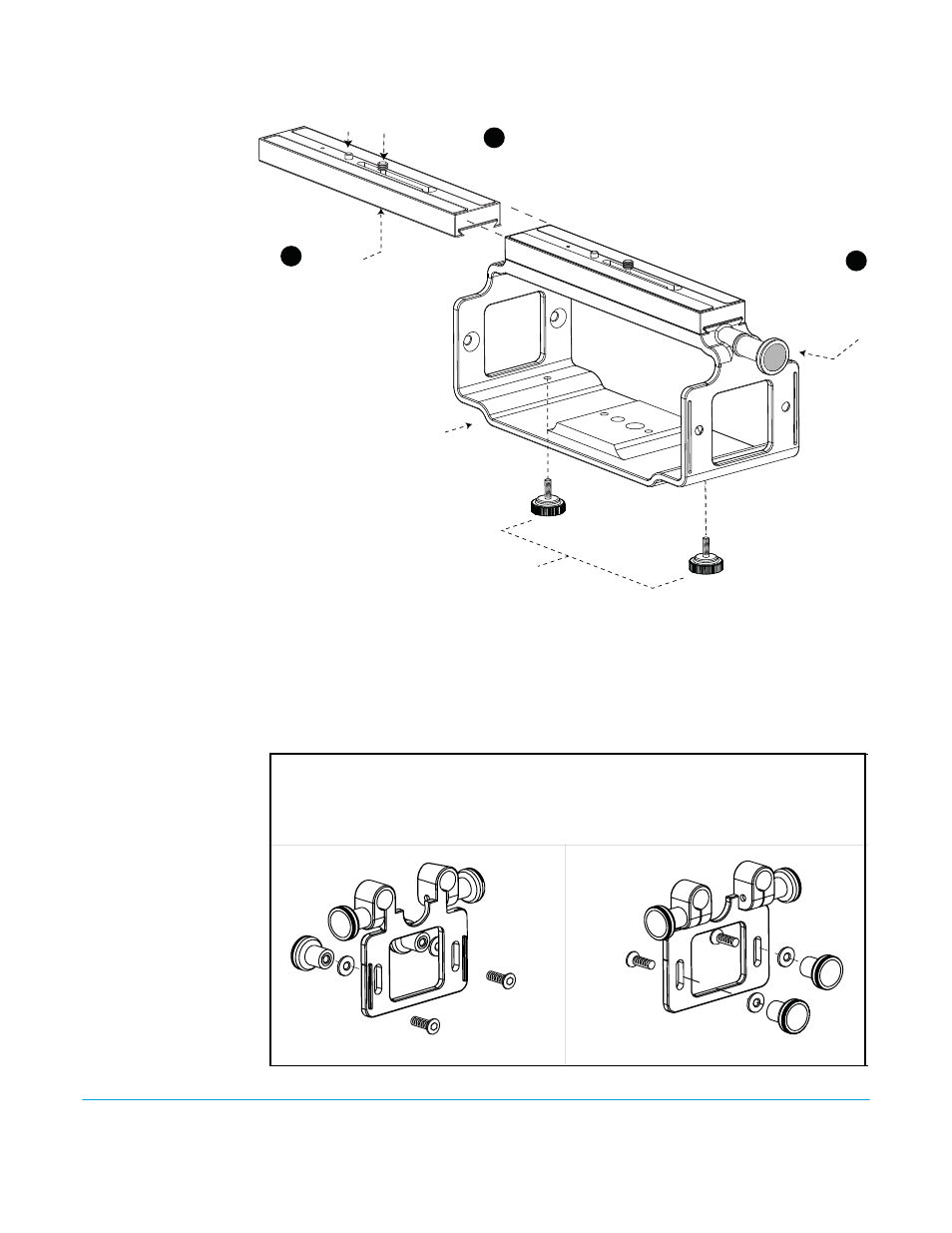

Figure 12. Exo-skeleton Camera Mounting
Accessory Rod Kit
Setup and
Adjustment
An option that can be added is an accessory rod kit that adds plates to each side of the
Exo-skeleton frame so that 15mm user-supplied rods can be used with the camera. Rods
are handy for mounting battery packs, matte boxes, and a wide variety of other
accessories.
Figure 13. Rod Accessory Kit Option
Base Ki Pro Exo-skeleton
chassis with camera mount
Knurled thumbscrews
secure Ki Pro chassis
to Exo-skeleton
Loosen
Camera
Mount
Locking
Knob
Slide Mount
off of Exo-skelton
Alignment
Pin
Mounting
Screw
Locate the Camera
Mounting screw underneath
(2 sizes provided),
align pin to Camera base
and tighten the Mounting screw
to fasten securely.
Replace Mount on
Exo-skeleton when done,
and tighten Locking Knob
to lock camera in place.
1
2
3
Kit components:
2 endplates
4 screws (5/32 allen)
4 knobs with plastic washers
Optional Rod Accessory Kit Assembly
