Ki Pro v3.2 www.aja.com 19

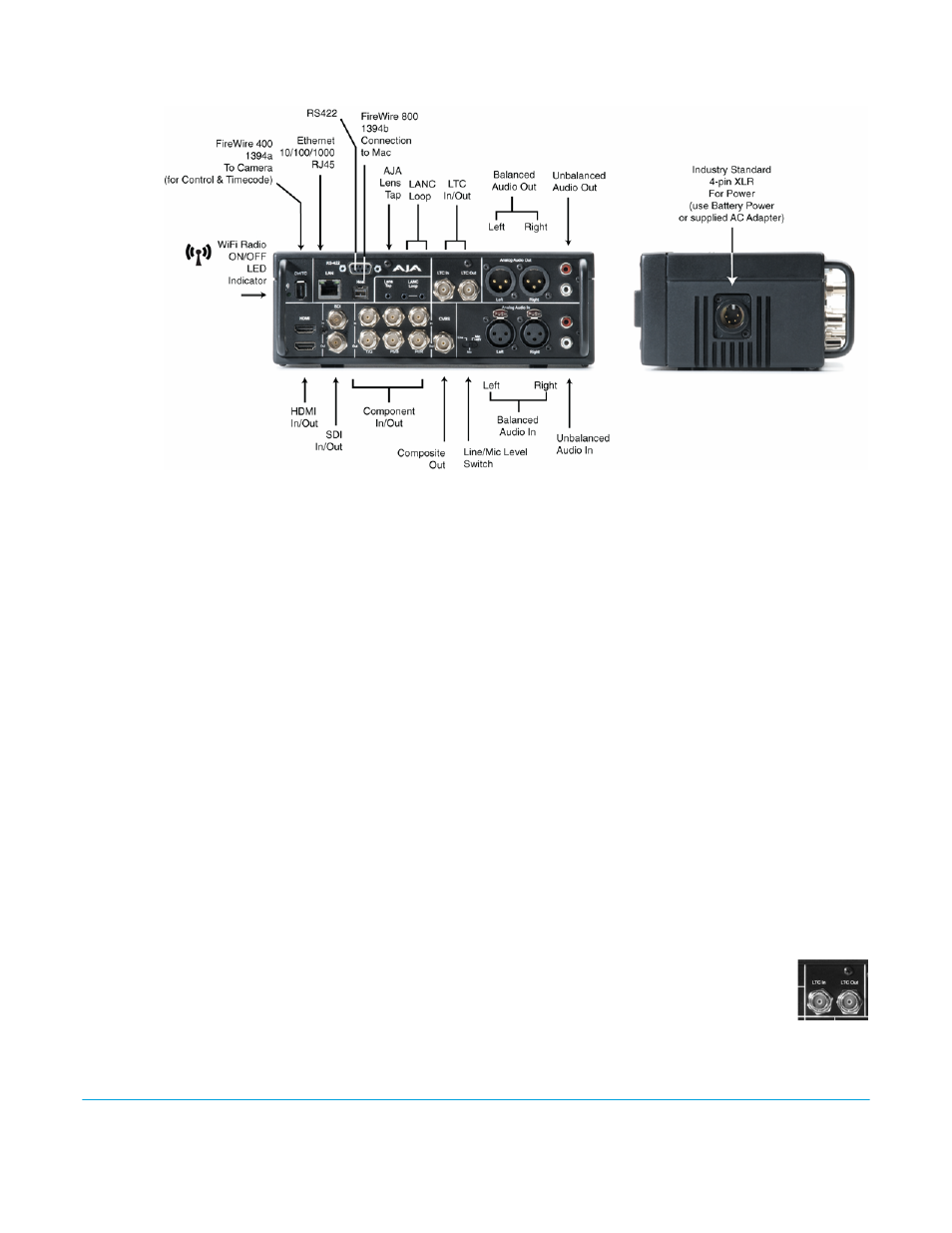

Figure 5. Ki Pro Connector Side and Back Sid
Connections
• HDMI—video with embedded audio, 2 channel input and recording support as of v2.0
firmware. 1x connector for input and 1x connector for output.
• HD/SD SDI Input and Output, with 2 or 8 channel embedded audio as of v2.0 firmware
(2x BNC)
• HD/SD Component YPbPr/RGB Video, 3x BNCs for input, and 3x BNCs for output.
• Composite video output (CVBS, 1x BNC)
• 2 channel balanced analog audio Input and Output (4x XLR)
• 2 channel unbalanced analog audio Input and Output (4x RCA)
• Line/Mic Level Switch (analog XLR audio input level)
• LTC Input and Output (2 BNC, non-looping output during recording)
• Lens Tap*
• LANC
• 1394a FireWire port (connection to camera for timecode and control)
• 1394b FireWire port (connection to host computer)
• LED Indicator for IEEE 802.11 Radio ON/OFF
• 10/100/1000 Ethernet LAN
• 9-pin serial port for RS422 control of Ki Pro via external editing systems
NOTE: Above item marked with an asterisk (*) is not supported in Ki Pro versions 1.0 through 3.0
software.
LTC Timecode Input
And Output
Two BNCs provide connections to the house LTC timecode generator or
source. Connections are high impedance. One BNC is for input and the other
for output. Note: the Ki Pro LTC output does not provide output during EE or
recording operations; the output is only for use during playback, as might be
