Ki Pro v3.2 www.aja.com 14
Operator Side

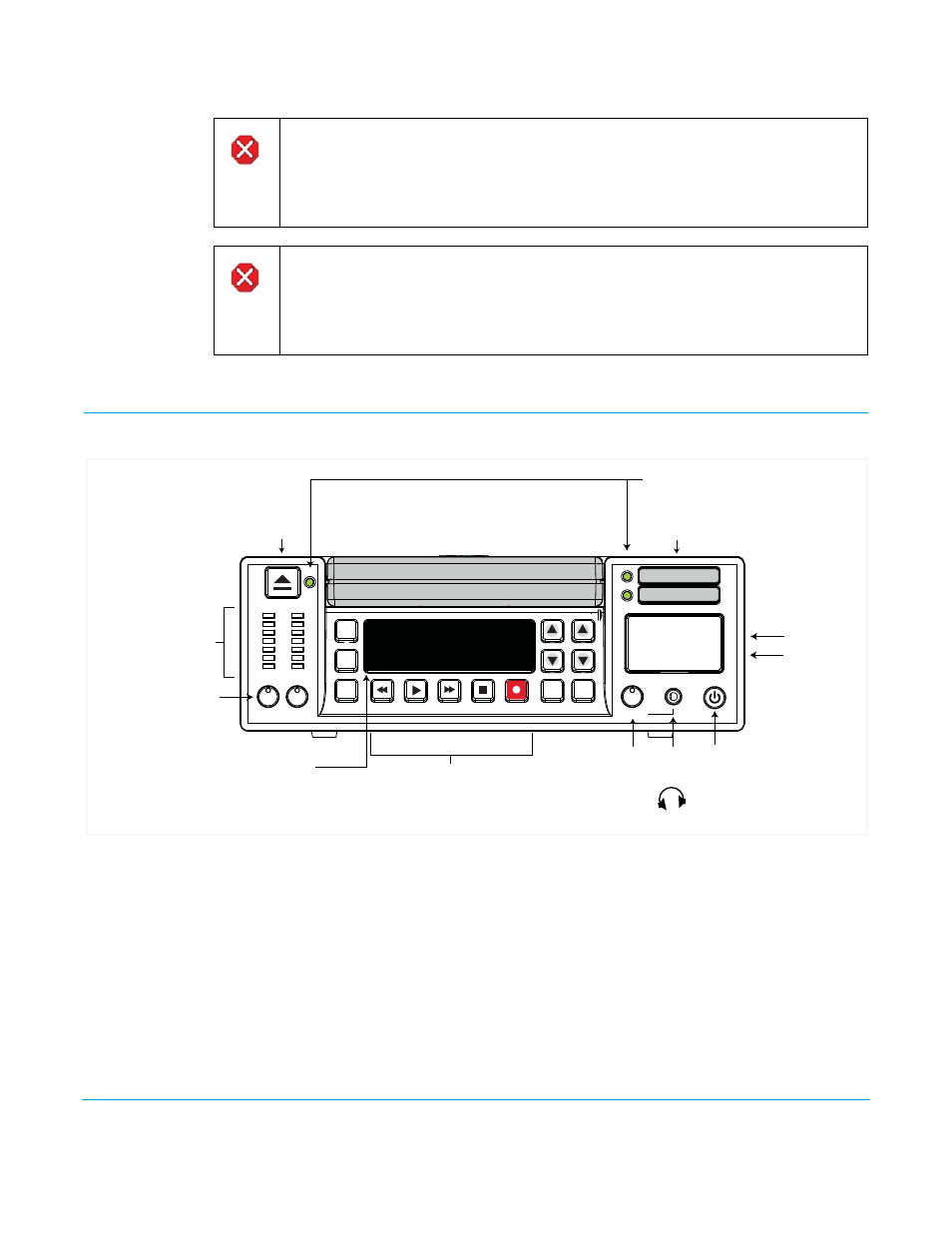

Figure 4. Ki Pro Operator Side (front panel)
Controls and
Displays
The Operator Side of Ki Pro features a variety of buttons, knobs, jacks, and indicators for
operating Ki Pro directly. Each of the items found on the “Operator Side” are described
here and on the following pages. This side is referred to as the “Operator Side” because
when mounted in the Exo-skeleton, it matches the operator side of the camera. When
controlling camera features, you’ll also be looking at all the Ki Pro control features for
ease of use.
Caution!
This device is a Class A product. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case users will be required to take
whatever measures may be necessary to correct the interference at their own
expense.
Caution!
The AJA Ki Pro contains a lithium battery soldered in place permanently (it is not user
replaceable). If you ever dispose of the Ki Pro, ensure you follow local regulations for
safe disposal. The lithium battery shall not be exposed to excessive heat, such as
sunshine or fire.
STATUS
DELETE
CLIP
SLOT
ADJUST SELECT
CONFIG
MEDIA
CLIP xxxxxxxx
REEL xxx
01 1 4% S
00:01:21:13
Storage Module (slides into slot)
Slot LED Status Indicators show:
Media Selected—Green
Not-Selected—not illuminated
Recording—flashes Green, On and Off
Expresscard Memory Slots (2) — 34mm 1-lane PCIe
(press card in to mount; press again to eject)
4-pin XLR
Battery Power
Connector
(on side)
VU
Meters
(2 Channel)
Audio
Input
Level
Adjust
(Press in and
knob will pop out
for easy adjustment)
Mic/Line Phones
L R
1
2
Head
Phone
Jack Head
Phone
Volume
(Press in and
volume adjust
knob will pop out
for easy adjustment)
Storage Module
Release
Button
(press and hold button down
while removing Disk Storage
Cartridge)
140 x 16 pixel
Alphanumeric
and Graphics Display
(typically 2 x 20 characters)
Transport Control Buttons
(Reverse/Stop/Play/Record/Fast Forward)
Power
ON/OFF
(Press to power up,
press and hold for 2 seconds to
power-down; abort power-down
by removing finger before 2 seconds)
Cover Plate
over 802.11 b/g
Antenna
