3D Robotics RTF Aero - Manual (Page 8)

8

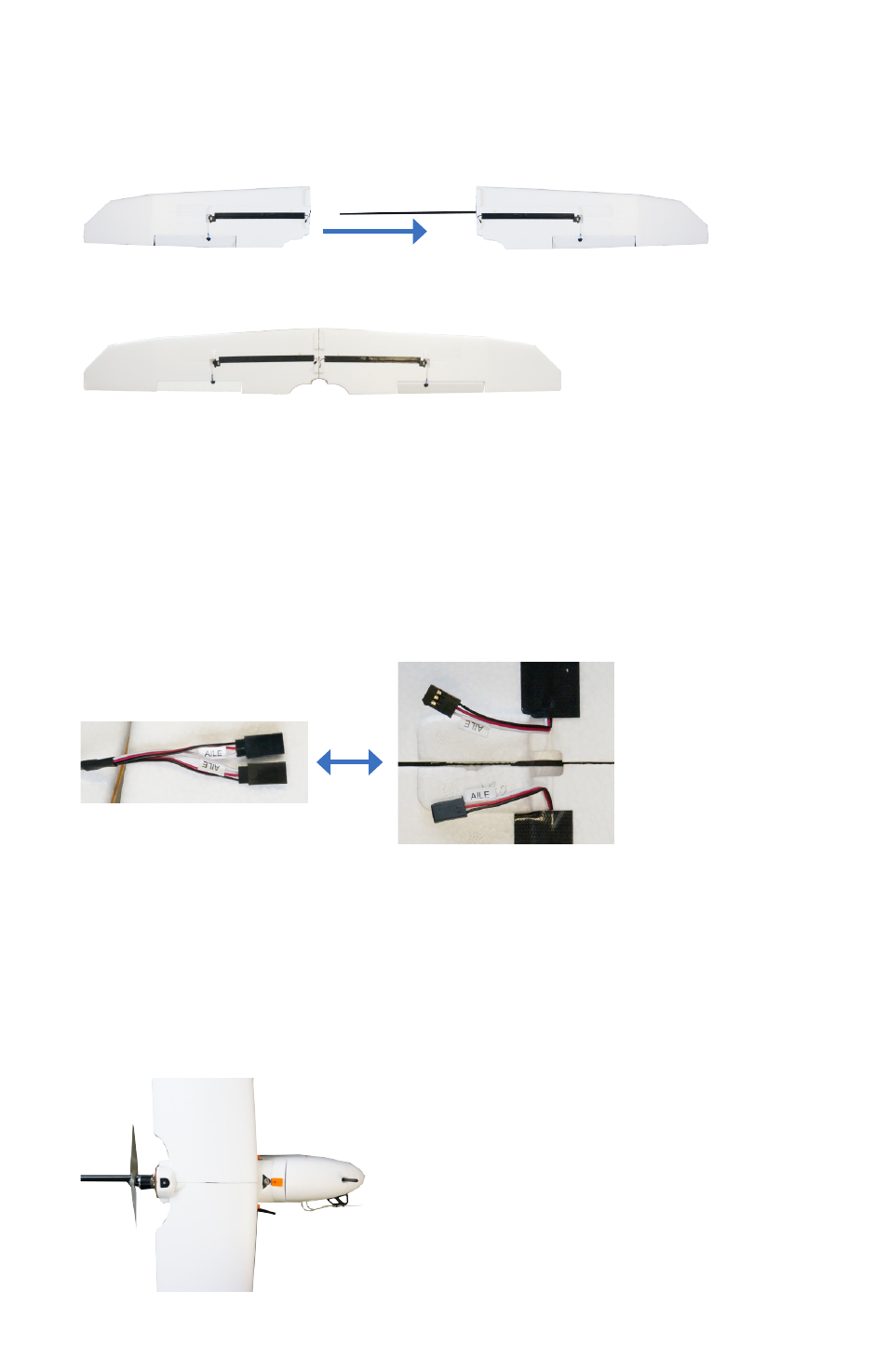

Slide the other wing onto the spar.
Do not twist the wing or the spar so as not to stress the foam.
Locate the two cables inside the electronics compartment marked
AILE. Connect these cables to the two cables on the wings marked
AILE. (Either of the wing cables can connect to either of the plane
cables; the order doesn’t matter.)
plane AILE cables wing AILE cables
Place the wings over the body of the Aero with the foam squares
fitted into the matching space in the electronics compartment.
Make sure not to pinch the AILE cables.
wings placed onto the body of the Aero
complete wing assembly
