3D Robotics X8 Plus - Manual (Page 4)

2

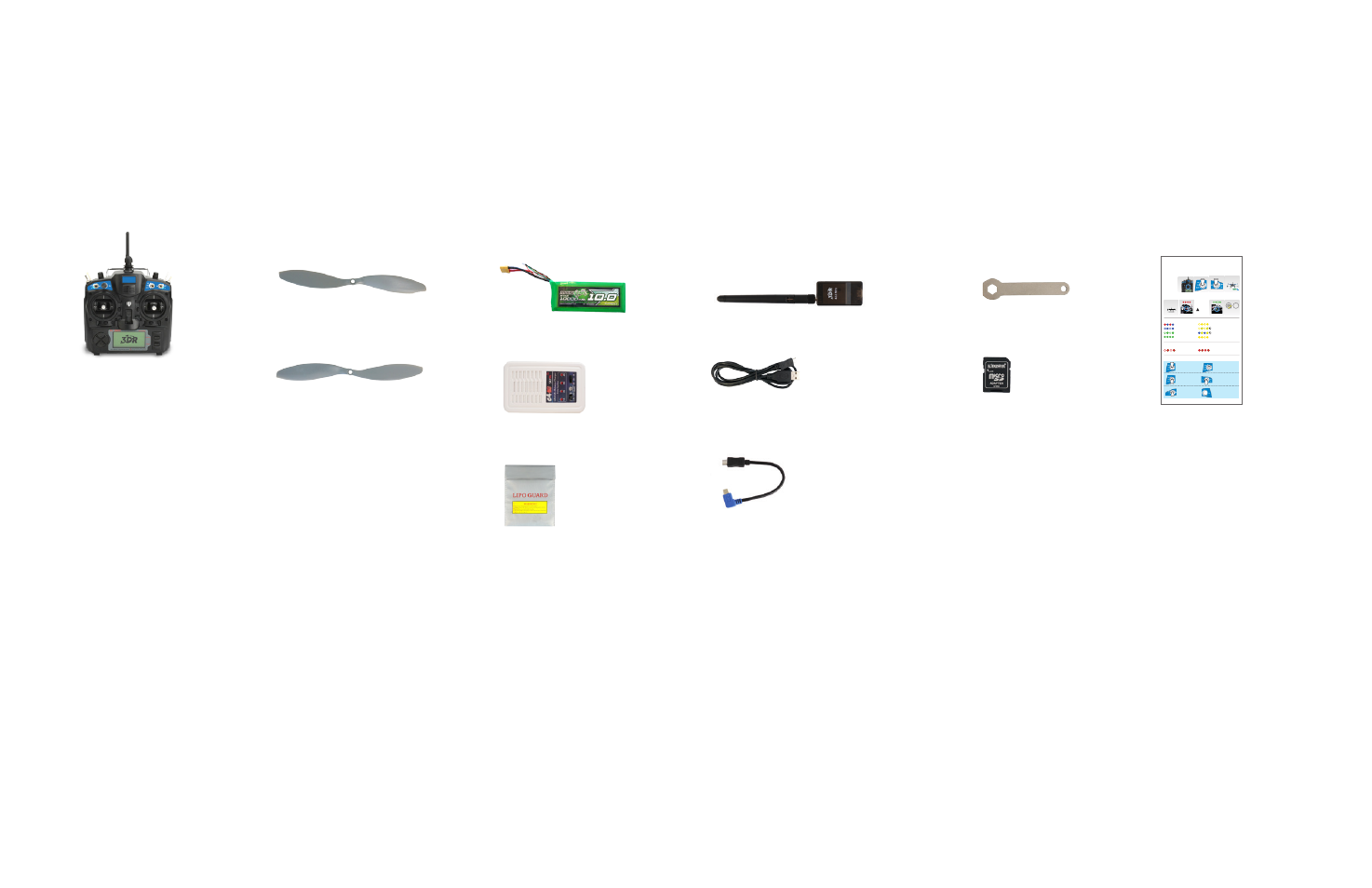

Parts
USB adapter
Ground Station Radio
Propeller wrench
Android adapter
SF propellers (4)
SFP propellers (4)
Charger and accessories
Guard bag
Pixhawk micro-SD card
adapter
RC Controller Battery Kit Tool Kit Propellers Flight Checklist
Flight battery
Radio
Flight Checklist
LED
Motors inactive, safe to handle
Low battery, automatic landing
Loss of RC signal, automatic landing
Pre-arm safety check failure
Loss of GPS signal, switch to manual
Initializing, hold the X8 level
Acquiring GPS, please wait
Autopilot ready, GPS locked
Armed
Safety Button
Motors active, deactivate before handling (see reverse)
Flight Modes
Return to launch RTL land at the launch point
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
Standard position (altitude hold mode) STD
fly manually
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
Loiter mode LTR
hover
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
!
Stand back!
4 6
The motors are now active.
Hold left stick down- right until motors spin.
2 1 Power on controller; set to STD and RTL OFF.
Arm motors. Press and hold safety button until solid red.
Connect charged battery.
Choose a clear launch point, and face the X8 away from you.
5 Check LED.
3 Place the X8 at launch point.
Go outside to an open area!
Auto mode AUTO fly a mission
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
©2014 3D Robotics. vA. All rights reserved.
Control gimbal TILT
tilt the camera down and up Land CH7
land at the current position
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
Stabalize
Altitude Hold
Loiter
Full Autonomy
Return to Launch
X8 +
Hold the X8 still and level while powering on.
