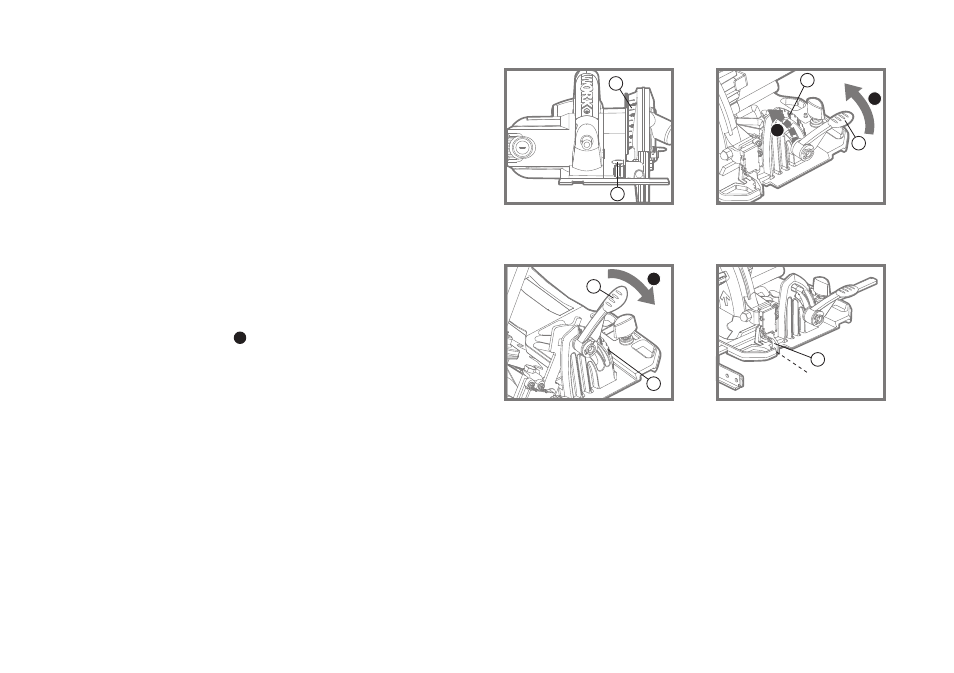

aDJUStiNG tHe cUttiNG DePtH (See fig. B)
To achieve an optimum cut, the saw blade must not protrude the
material by more than 3mm (maximum).
Lift the depth of cut lock lever (21) and raise the saw body away
from the base plate. Adjust the required cutting depth using
the depth of cut scale (20). Turn the lock lever (21) in clockwise
direction to lock the set cutting depth.
aDJUStiNG tHe cUttiNG aNGle (See fig. c1&c2)
Turn the base plate bevel lock (6) in anti-clockwise direction to
loosen the angle scale. Tilt the base plate away from the machine
until the required cutting angle is adjusted on the angle scale (4).
Tighten the bevel lock (6) by turning it in clockwise direction.
Note: The 45°degree has a fast and positive stop. You can use this
angle exactly. If you want to use bigger cutting angle, you can push
the bevel lock along the path
2 and tighten the bevel lock.
cUttiNG GUiDe (See fig. D)
The Bevel Trac
TM (7) fixed in front of the base plate is used as
cutting guide. Always guide it along the cutting mark made on the
workpiece for accurate cutting.
The cutting mark 0° indicates the position of the saw blade for
right-angled cuts.
Note: It is best to perform a practice cut prior to starting work.
SWitcHiNG oN aND off
Depress the On/Off switch (1) to start the saw and release to stop.
for safety reasons the on/off switch (1) of the machine
cannot be locked; it must remain pressed during the entire
operation.
