Hange the, Rame, Onfiguration – Wood’s Powr-Grip MRTA611LDC2 User Manual
Page 12
Rev 0.0/4-14
10
MRTA6-DC2: #35072
T
O
C
HANGE THE
P
AD
F
RAME
C
ONFIGURATION

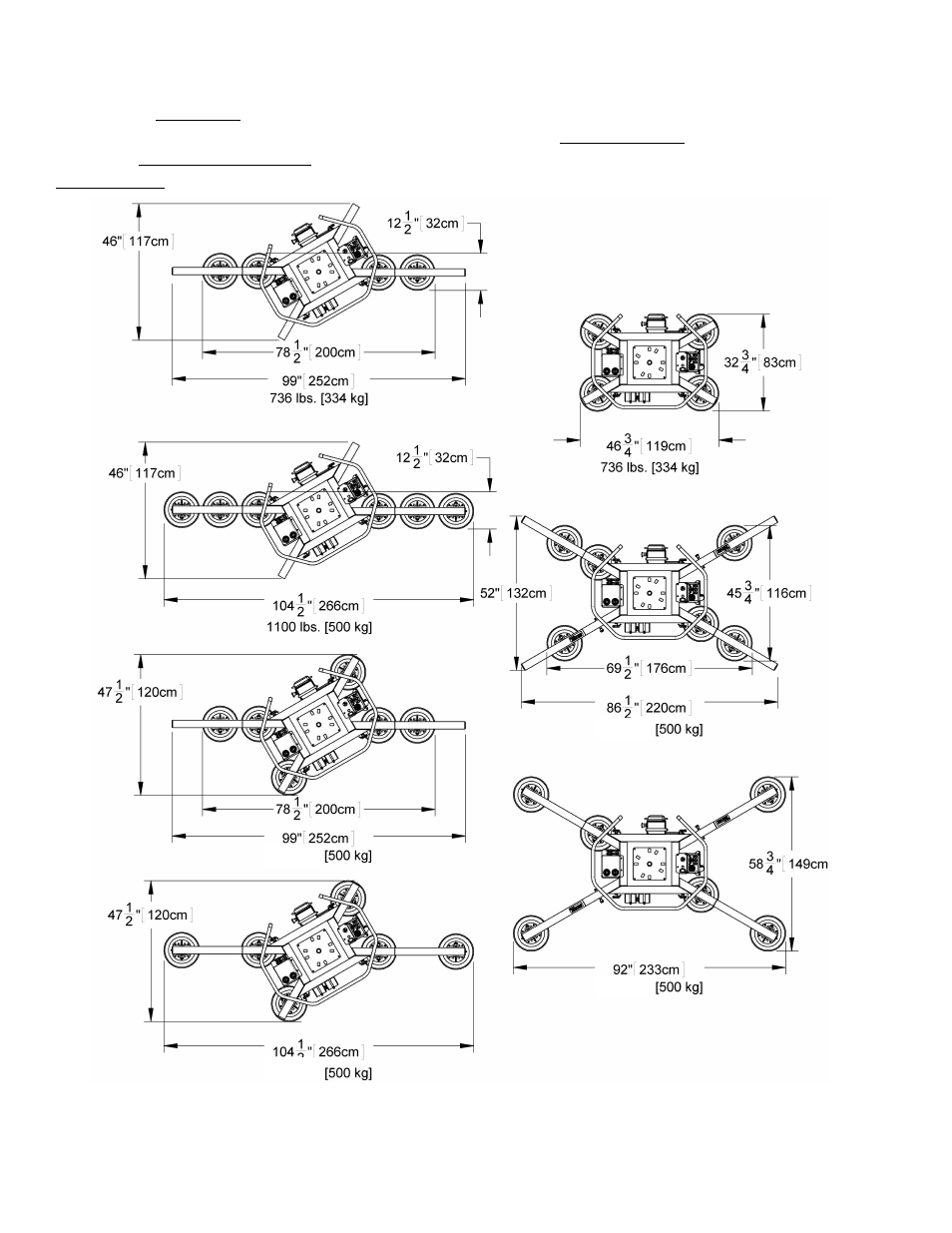

A variety of pad frame configurations accommodate different load dimensions and weights, as
shown. Configurations are created by installing or removing extension arms, by repositioning or
removing movable pad mounts, and by connecting or disconnecting vacuum hoses to certain
vacuum pads.
Standard MRTA611LDC pad frame shown.
See SPECIFICATIONS for Maximum Load Capacities of other models.
