To Use Secondary Rotation Stops

A second set of rotation stops allows the lift bar to remain perpendicular to the pad frame when

used in the linear configuration:

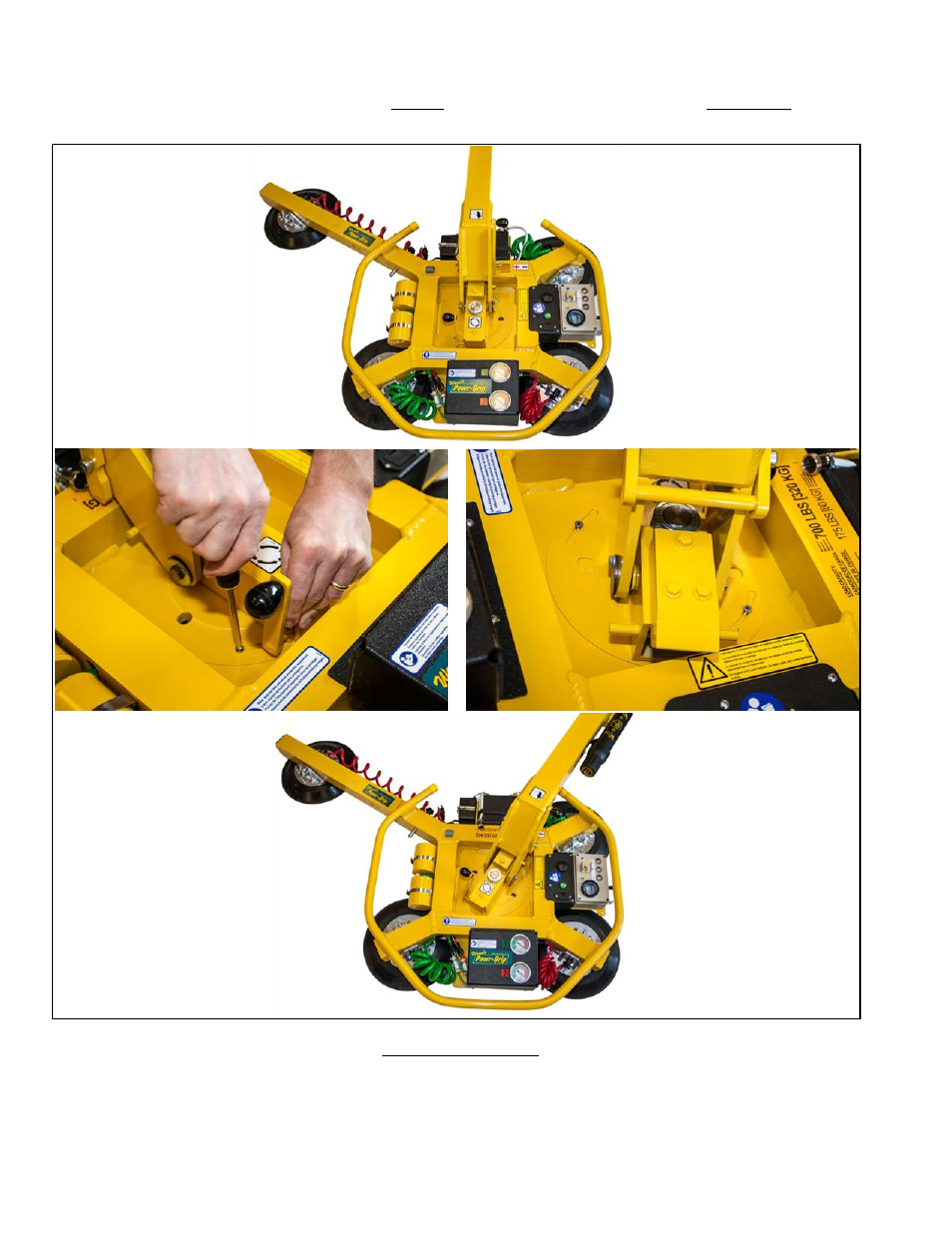

1) Loosen the 2 screws that secure the rotation wear plate, as shown.
2) Rotate the wear plate 30° to align with the secondary rotation stops.
3) Tighten the screws securely. Note: Reverse these steps to realign the primary rotation stops

for use with the other pad frame configurations.
