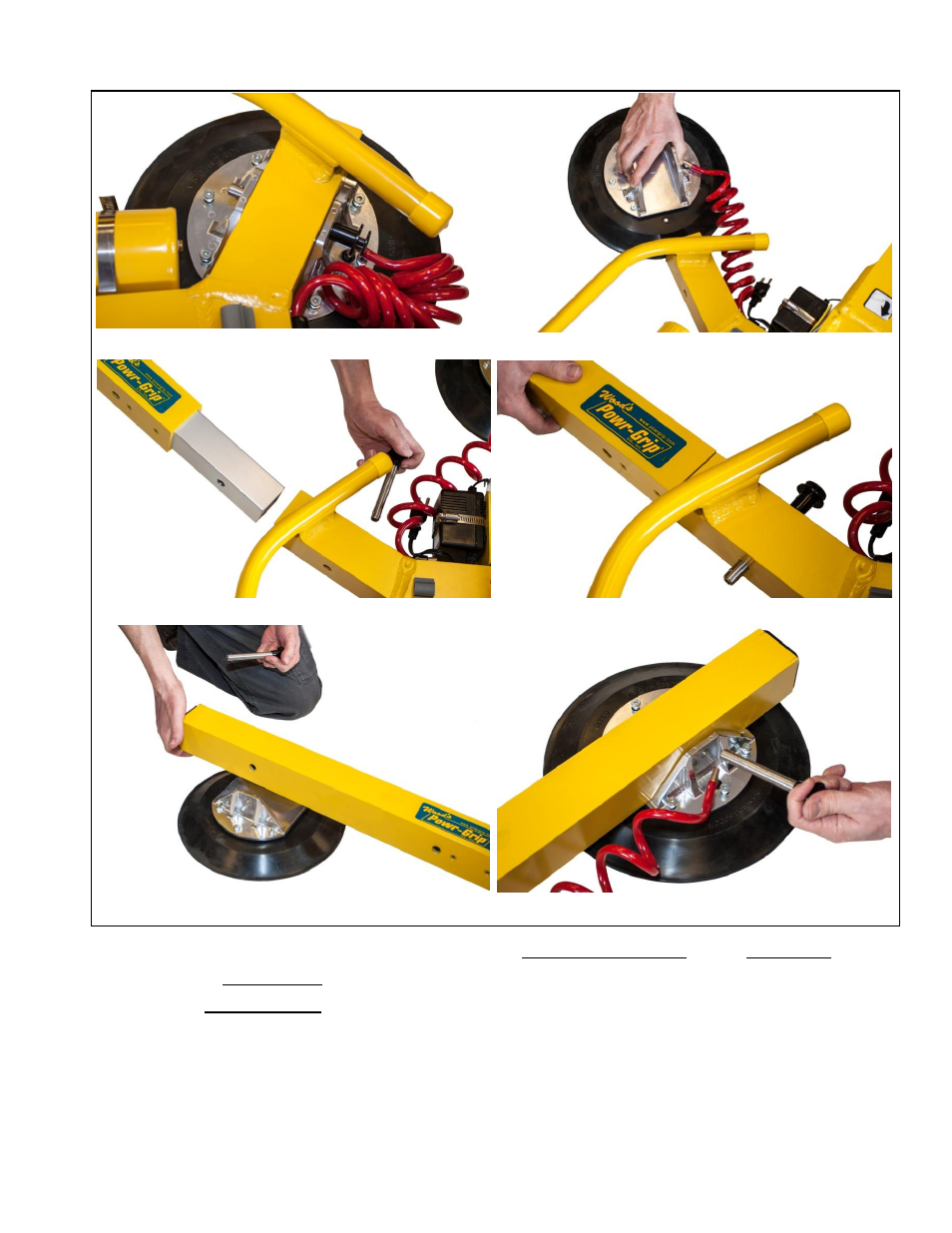

To Install/Remove Extension Arms and Reposition Vacuum Pads
1) Remove the cotterless hitch pin that secures the movable pad mount to the pad frame.
2) Remove the vacuum pad from the pad frame.
3) Insert the extension arm into the pad frame.
4) Use a cotterless hitch pin to secure the extension arm.
5) Position the pad mount on the extension arm.
6) Use a cotterless hitch pin to secure the pad mount.
Note: Repeat or reverse these steps to configure the pad frame as needed.
