PRODUCT OVERVIEW
6 MY NET WI-FI RANGE EXTENDER
USER MANUAL

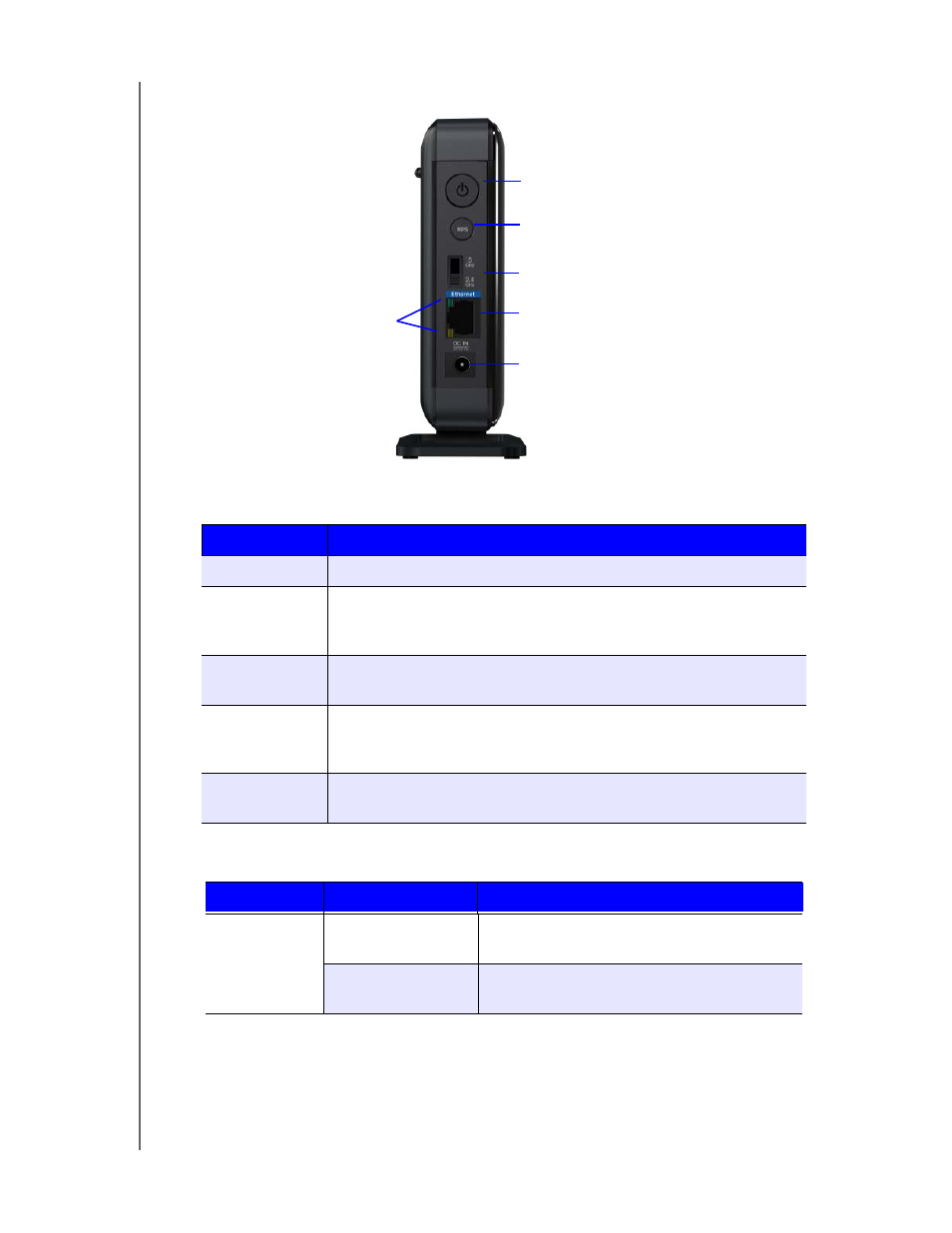

Side Panel
Side components
Port LED indicators
Component Description
Power button Press to turn the extender on. Press again to turn it off.
WPS (Wi-Fi
Protected
Setup) button Press this button to establish an initial connection between a WPS-
enabled router and the extender and then to connect WPS clients to
the extender.
Frequency
switch Toggle to configure the extender to use either the
2.4 GHz or the 5 GHz frequency band.
Ethernet (LAN)
port Optionally, use an Ethernet (network) cable to connect a wired
network device to this port. When in AP mode, use an Ethernet cable
to connect this port to a router.
Power port Use the included AC power adapter to connect this port to the power
source.
Component LED Description
Ethernet port Link LED (Green) Steady on when a cable connects the port to
another Ethernet port or a router.
Activity LED (Yellow) Blinks to indicate network activity of the
Ethernet port.
Power button
WPS button
Frequency switch
Power port
Ethernet port
Port LEDs
