Western Digital My Net Wi-fi Range Extender User Manual - Manual (Page 22)

PERFORMING BASIC TASKS
19 MY NET WI-FI RANGE EXTENDER
USER MANUAL
2. If the new device supports WPS:

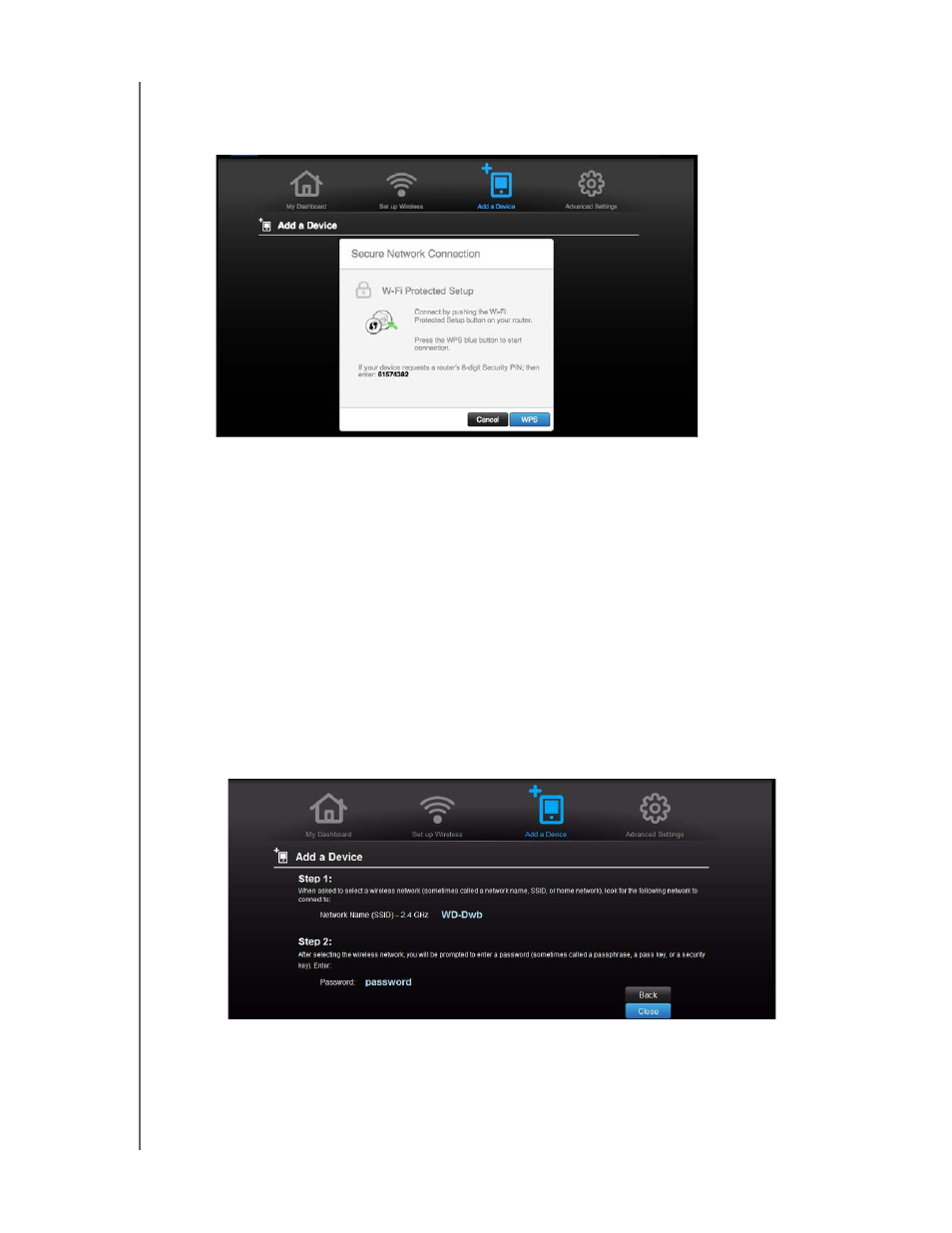

a. Click Click here to connect using WPS to display the Wi-Fi Protected Setup
screen:
b. Follow the appropriate procedure below:
Within two minutes, press the physical WPS button on your device and click the
blue WPS button on this screen.
-OR-
If prompted by your wireless device, enter the extender’s WPS PIN shown on the
screen into your wireless device.
Note: The PIN also appears on the bottom of the extender.
c. Click WPS. The connection’s progress indicator appears, and then the My
Dashboard home screen, which now displays an additional device connected.
3. If the new device does not support WPS, on the Add a Device screen:
a. Click Click here to connect by entering network name and password to display the
following Add a Device screen:
