2 2..4 4 L LE ED D
2 2..5 5 P Po ow we err s su up pp plly y
3 3 M Mo ou un nttiin ng g
5
L LE ED D::
Power green valid power supply
red invalid power supply
Link / Activity green 100 Mbit/s Link
green flashes 100 Mbit/s Link traffic
yellow 10 Mbit/s Link
gelb flashes 10 Mbit/s Link traffic
Duplex green Full-duplex
off Half-duplex
C Ca au uttiio on n
Insecure outputs. Operations on the IE-SW5-ECO only realise by qualified employ-
ees. Use a power supply unit according to DIN EN 60742 (VDE 0551). Secure all
electrical outputs.
- The switch operates with Auto-MDIX technology, so straight-through or crossover
cables can be used to connect network interfaces or other network devices.
- The chassis connecting serves as an additionally ground.

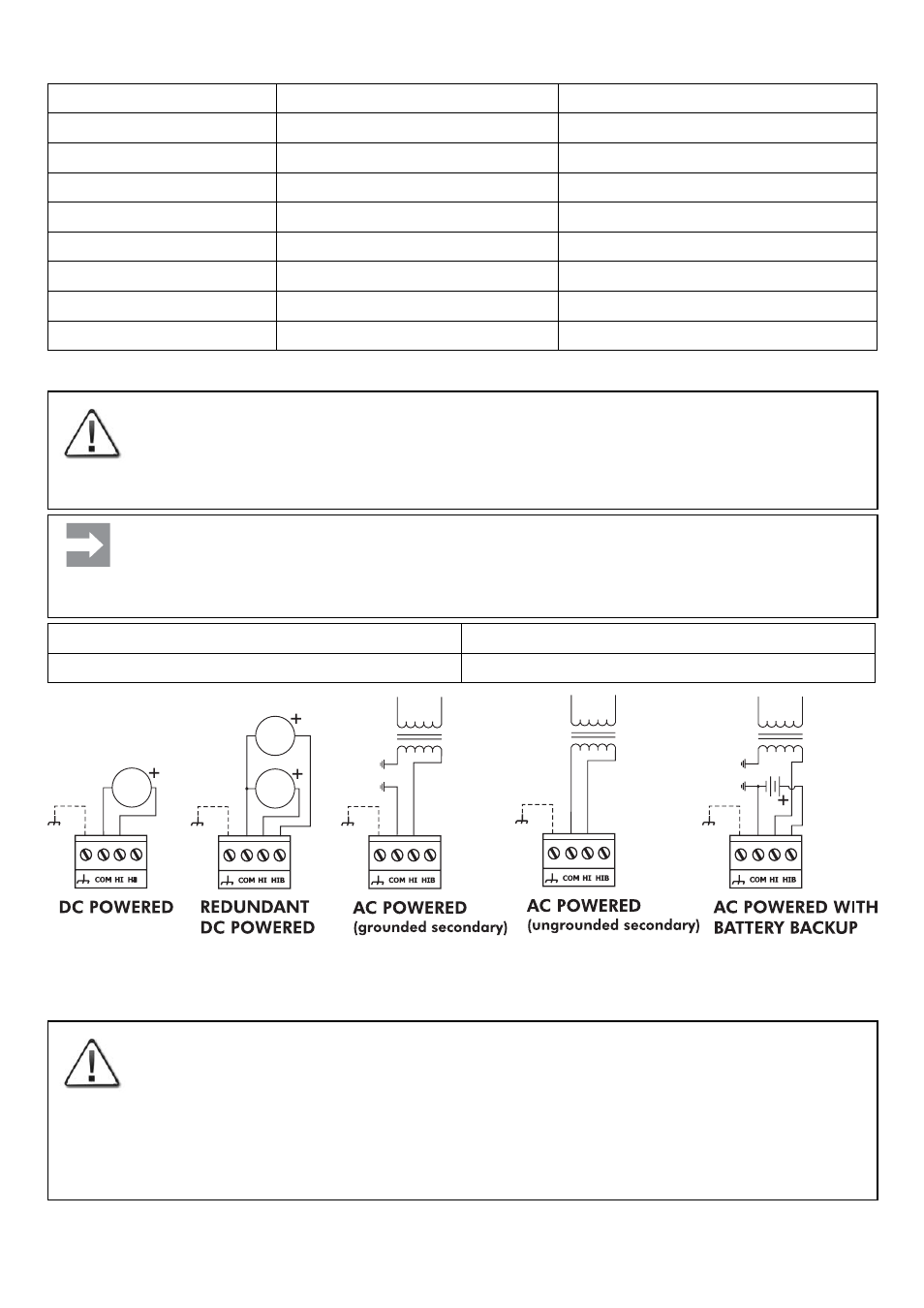

Supply voltage 10 ... 36 V DC / 8 ... 24 V AC
Power (max) 5 W / 5 VA
C Ca au uttiio on n
- The IE-SW5-ECO is designed for top hat rail mounting according to standard
EN50022. Using a different top hat rail can result in improper mounting. Use a top
hat rail according to standard EN 50022. Pay attention to the mounting instructi-
ons of the manufacturer.
- It is not allowed to mount or demount the IE-SW5-ECO during operation.
